Key Features
- 1-Year Secure Network Management Card subscription included
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
Description

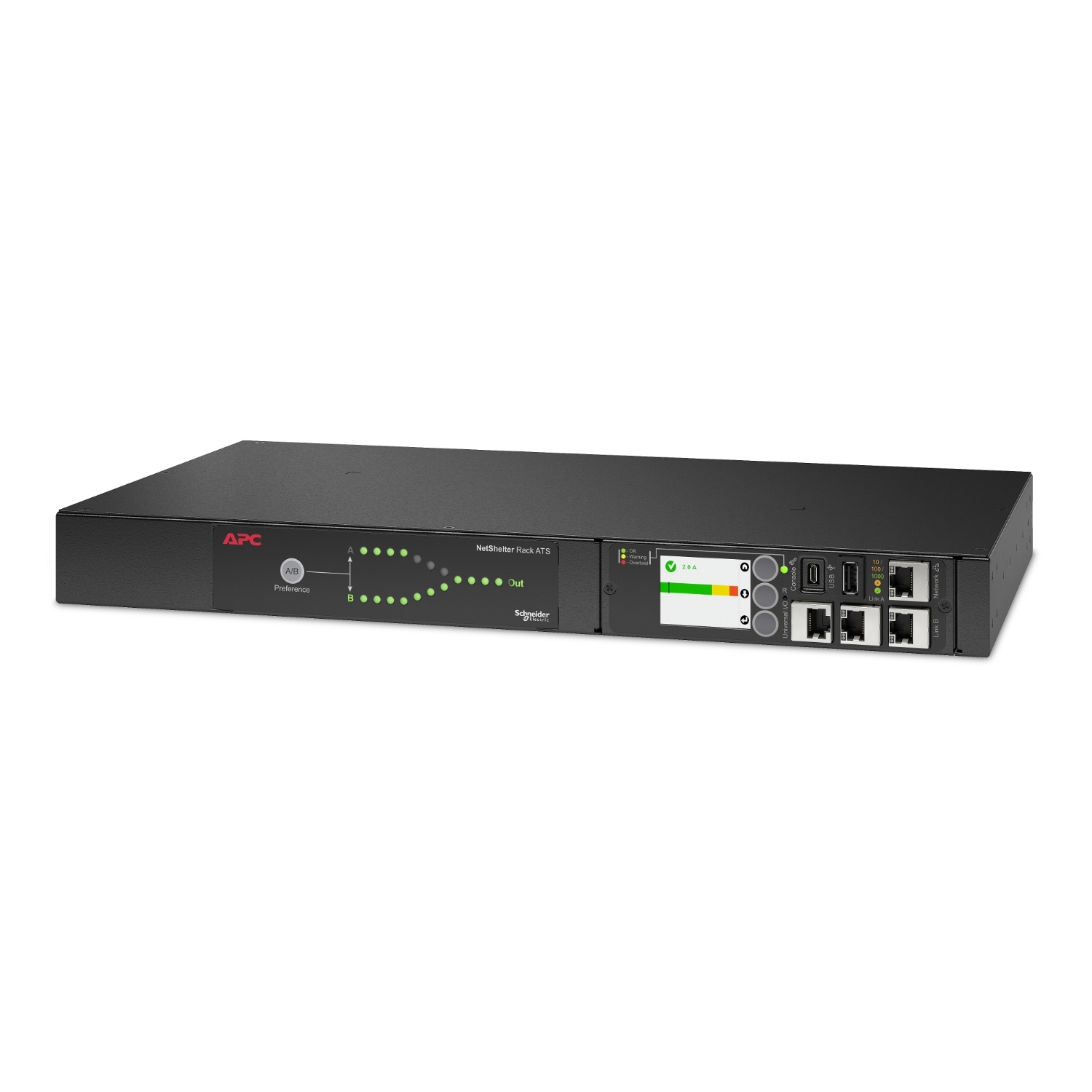

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge.
With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack.
AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity.
It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets.
This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security.
It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come.
Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Compatible Products & Accessories
× ![]()
(AP4421A)
Specifications - AP4421A
Overview
| Lead time | Usually in Stock |
Main
| Main Input Voltage | 230 V AC 1 phase |
| Product or component type | Automatic transfer switch |
| Main Output Voltage | 230 V AC 1 phase |
| Input Connection Type | IEC 60320 C14 10 A 2P + E |
| Number of rack unit | 1U |
| Provided equipment | Mounting hardware
Rack mounting brackets |
Physical
| Colour | Black |
| Height | 44 mm |
| Width | 432 mm |
| Depth | 236 mm |
| Net weight | 3.93 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Mounting position | Horizontal |
Input
| Network frequency | 50/60 Hz |
| [In] rated current | 10 A |
| permissible voltage | 207…253 V |
| Max line current | 10 A |
| Load capacity | 2000 VA |
Output
| Number of power socket outlets | 12 |
| Protection type | Without circuit breaker |
Conformance
| Product certifications | EN 55022 class A
FCC part 15 class A |
| Standards | EN 55022 class A
FCC part 15 class A |
Environmental
| Ambient air temperature for operation | -5…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.00 cm |
| Package 1 Width | 35.00 cm |
| Package 1 Length | 60.00 cm |
| Package 1 Weight | 5.420 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 126.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 230.000 kg |
| SKU |
AP4421A |
| Barcode # |
731304333401 |
| Brand |
APC |
| Shipping Weight |
5.7000kg |
