Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world’s first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.

To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps – allowing you to maximize multitasking operations.

The unique independent switching feature allows the KVM switch’s focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.

With a rich feature set, the CS1922M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.

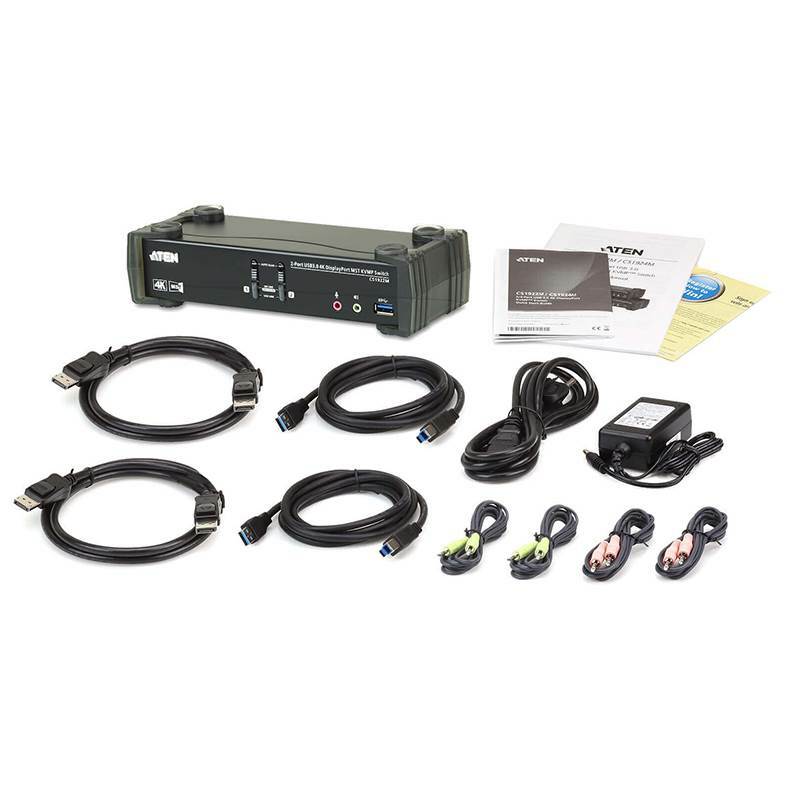

Package Contents

1x 2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch
2x DisplayPort 1.2 Cables (1.5m/5ft)
2x USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
4x Audio Cables (1.8m/6ft)
1x Power Adapter
1x User Instructions

World’s First DisplayPort KVM Switch with Built-in MST Hub
- One USB keyboard/mouse and DisplayPort or HDMI monitor control 2 computers and 2 USB peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source *
- Supports MST Mode, Splitter Mode, and Single Port Mode.
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
- DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter **
- Firmware upgradeable
- Hot pluggable – add or remove computers without powering down the switch

Remarkable Audio/Video Experience
- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
- DisplayPort 1.2 compliant, HDCP compliant
- Supports HD audio through DisplayPort ***
- Full bass response for high-quality 2.1 channel surround sound systems

Intelligent Operation
- Computer selection via front panel pushbuttons, hotkeys, mouse ****, and RS-232 commands
- Independent switching of KVM, USB hub, and Audio focus
- Power On Detection – if a computer is powered off, the CS1922M automatically switches to the next powered-on computer
- Auto Scan Mode for monitoring all computers

Versatile Compatibility
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support – Windows, Mac and Linux
- Multilingual keyboard mapping supports English, Japanese, French and German keyboards

  Note:
  * MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant
  ** DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups.
  Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
  *** HD audio through DisplayPort cannot be switched independently.
  **** Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.

Computer Connections	2
Port Selection	Hotkey, Pushbutton, Mouse, RS-232 Commands
Connectors

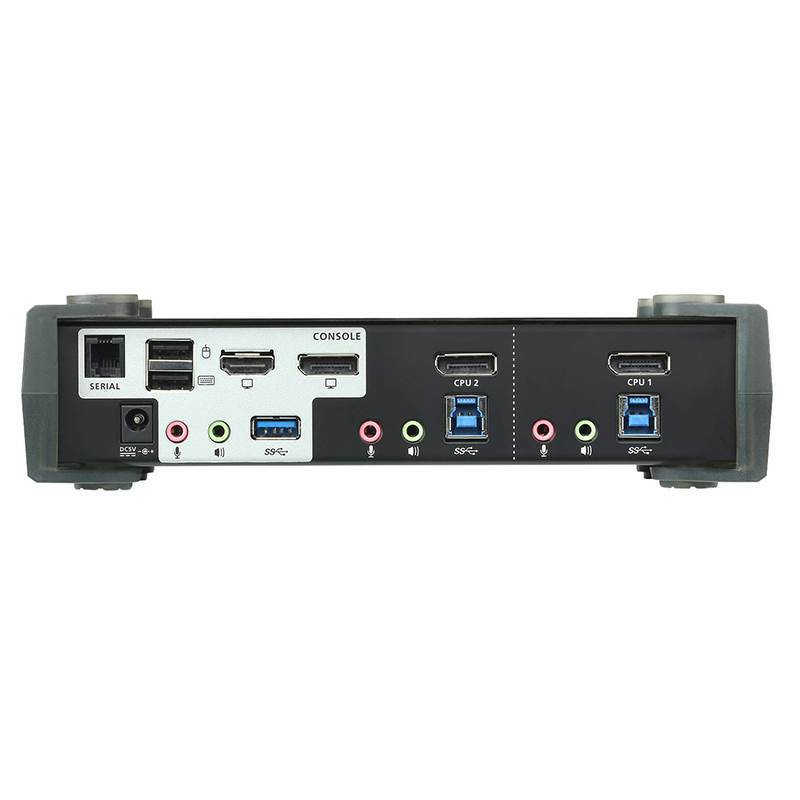

Console Ports	2 x USB Type A Female 1 x DisplayPort Female (Black) 1 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) 1 x RJ-11 Female
KVM (Computer) Ports	2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Switches
Selected	2 x Pushbutton
LEDs
On Line /Selected	2 (Orange)
USB Link	2 (Green)
Emulation
Keyboard / Mouse	USB
Video	4096 x 2160 @ 60Hz
Scan Interval	1-99 seconds (Default: 5 seconds)
Power Consumption	DC5V:3.44W:59BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal, Plastic
Weight	0.73 kg ( 1.61 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Firmware

Description	Ver.	Release Date	File Name
Firmware Upgrade	V1.1.101	2018-05-22	cs1922m_1924m_v1.1.101.zip
Firmware Upgrade	V1.0.064	2018-04-02	cs1922m_1924m_v1.0.064.zip
Firmware Upgrade	V1.0.063	2017-11-23	cs1922m_1924m_v1.0.063.zip

(CS1922M-AT-U)

Specifications

Compatible/Used for	System Control
Type	KVM Switch
Warranty	2 Years
Computer Connections	2
Port Selection	Hotkey, Pushbutton, Mouse, RS-232 Commands
Power Consumption	DC 5.0V; 3.44W
Scan Interval	1-99 seconds (Default: 5 seconds)
Video	4096 x 2160 @ 60Hz

SKU	CS1922M-AT-U
Barcode #	672792007743
Brand	ATEN
Shipping Weight	2.0000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3

Manufacturer Warranty: 2 Years Limited Warranty
