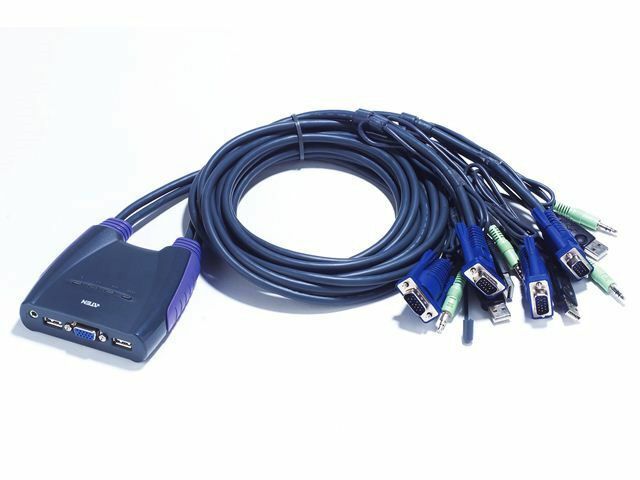

The CS64US takes a giant step forward from prior cable KVM models in the Petite series, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.

Furthermore, the CS64US features enhanced Video DynaSync™ technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. The CS64US also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.

Package Contents

1x 4-Port CS64US USB KVM Switch
2x Hotkey Stickers
1x User Instructions

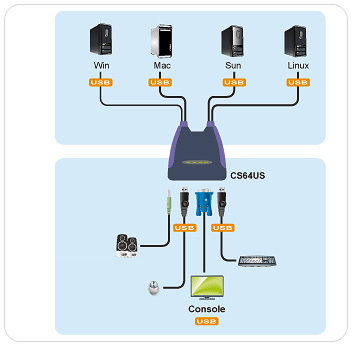

One USB console controls four USB computers
Compact design, built-in 0.9/1.2 m cables
Hotkey selection for OS and keyboard language
Computer Selection via hotkey
Multiplatform support - Windows, Linux, Mac, Sun
Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
Supports multifunction and wireless keyboards and mice NEW!
All-in-one design
With speaker support
Superior video quality – up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Non-powered
Sun/Mac keyboard support and emulation*
Firmware upgradable NEW!

* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers

4-Port USB KVM Switch

Computer Connections	4
Port Selection	Hotkey
Connectors
Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
KVM Ports	4 x HDB-15 Male (Blue) 4 x USB Type A Male 4 x 3.5mm Audio Jack Female (Green)
LEDs
Selected	4 (Green)
Cable Length
Computer	2 x 0.9 m; 2 x 1.2 m
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536; DDC2B
Scan Interval	1-99 secs. (default 5 secs.)
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.58 kg ( 1.28 lb )
Dimensions (L x W x H)	9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Firmware

Description	Ver.	Release Date	File Name
Firmware Upgrade	v1.1.108	2017-02-07	cs64us_v1.1.108.zip
Firmware Upgrade	v1.1.107	2015-12-17	cs64us_v1.1.107.zip
Firmware Upgrade	v1.1.105	2015-10-06	cs64us_v1.1.105.zip
Firmware Upgrade	v1.1.104	2014-08-27	cs64us_v1.1.104.zip
Firmware Upgrade	v1.1.103	2012-07-04	cs64us_v1.1.103.zip
Firmware Upgrade	v1.1.102	2011-10-12	cs64us_v1.1.102.zip
Firmware Upgrade	v1.1.101	2010-09-15	cs64us_v1.1.101.zip
Firmware Upgrade	v1.0.076	2010-03-08	cs64us_v1.0.076.zip
Firmware Upgrade	v1.0.075	2010-02-03	cs64us_v1.0.075.zip

(CS64US-AT)

Computer Connections	4
Port Selection	Hotkey
Connectors
Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
KVM Ports	4 x HDB-15 Male (Blue) 4 x USB Type A Male 4 x 3.5mm Audio Jack Male (Green)
LEDs
Selected	4 (Green)
Cable Length
Computer	2 x 0.9 m; 2 x 1.2 m
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536; DDC2B
Scan Interval	1-99 secs. (default 5 secs.)
Power Consumption	DC5V:0.9W:8BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.58 kg ( 1.28 lb )
Dimensions (L x W x H)	9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	CS64US-AT
Barcode #	672792001994
Brand	ATEN
Shipping Weight	0.9200kg
Shipping Width	0.100m
Shipping Height	0.220m
Shipping Length	0.260m
Shipping Cubic	0.005720000m3

Manufacturer Warranty: 2 Years Limited Warranty
