The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.
Furthermore, the CS682 features enhanced Video DynaSync™ technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. Also, in addition to new hotkeys, the CS682 offers the latest mouse port-switching function - simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS682's new Power on detection feature means that if one of the computers is powered off, switch will automatically switch to the other powered-on computer.
Featuring an unbeatable combination of DVI functionality, USB 2.0 peripheral sharing convenience, and enhanced user-friendly operations, the CS682 allows users to keep up with the latest innovations in desktop multimedia applications.

Package Contents

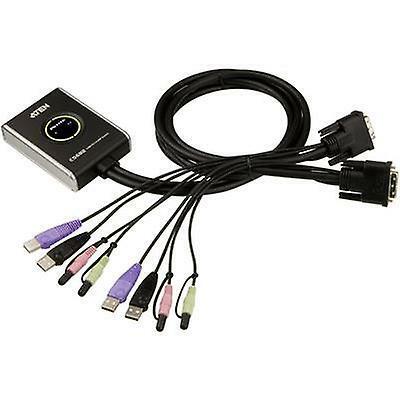

  • 1x CS682 2-Port USB 2.0 DVI KVM Switch
  • 1x Remote Port Selector
  • 1x User Instructions
  • One DVI video console controls two USB computers
  • Fully DVI-Digital specification compliant
  • USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
  • Computer selection via remote port selector, hotkeys, and USB mouse
  • Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Multiplatform support - Windows, Linux, Mac and Sun
  • Compact design, built-in all-in-on cables (2 x 1.2 m)
  • Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
  • Superior video quality - up to 1920 x 1200
  • Compatible with widescreen LCD monitors
  • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
  • Supports multimedia keyboards
  • Supports wireless keyboards and mice
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Mac/Sun keyboard support and emulation**
  • HDCP Compliant
  • Non-Powered
  • Firmware upgradable

    * This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
    ** • PC keyboard combinations emulate Mac/Sun keyboards.
         • Mac/Sun keyboards work only with their own computers.

2-Port USB 2.0 DVI KVM Switch


Computer Connections 2
Port Selection Hotkey, Mouse, Remote Port Selector
Connectors
Console Ports 1 x DVI-D Female (White)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM Ports 2 x DVI-D Male (Black)
2 x USB Type A Male (Purple)
2 x USB Type A Male (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Remote Port Selector 1 x 2.5mm Audio Jack Female
LEDs
KVM 2 (Green)
Remote Port Selector 2 (Green)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse USB
Video 1920 x 1200 @ 60Hz
Scan Interval 3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption DC5V:1.95W:22BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) 11.15 x 7.80 x 2.40 cm
(4.39 x 3.07 x 0.94 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



Description Ver. Release Date File Name
Firmware Upgrade V1.3.125 cs682_v1.3.125.zip
Firmware Upgrade v1.3.124 cs682_v1.3.124.zip
Firmware Upgrade v1.3.123 cs682_v1.3.123.zip
Firmware Upgrade v1.3.122 cs682_v1.3.122.zip
Firmware Upgrade v1.2.117 cs682_v1.2.117.zip
Firmware Upgrade v1.2.116 cs682_v1.2.116.zip
Firmware Upgrade v1.2.114 cs682_v1.2.114.zip
Firmware Upgrade v1.1.102 cs682_v1.1.102.zip




(CS682-AT)

Computer Connections 2
Port Selection Hotkey, Mouse, Remote Port Selector
Connectors
Console Ports 1 x DVI-D Female (White)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM Ports 2 x DVI-D Male (Black)
2 x USB Type A Male (Purple)
2 x USB Type A Male (Black)
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)
Remote Port Selector 1 x 2.5mm Audio Jack Female
LEDs
KVM 2 (Green)
Remote Port Selector 2 (Green)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse USB
Video 1920 x 1200 @ 60Hz
Scan Interval 3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption DC5V:1.95W:22BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) 11.15 x 7.80 x 2.40 cm
(4.39 x 3.07 x 0.94 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
SKU CS682-AT
Barcode # 672792110559
Brand Aten
Shipping Weight 0.6800kg
Shipping Width 0.070m
Shipping Height 0.235m
Shipping Length 0.163m
Shipping Cubic 0.002681000m3

Manufacturer Warranty: 12 Months Limited Warranty
