ATEN VM8824-AT 4-Port True 4K HDMI Output Board with Scaler
Model # VM8824-AT
-
SKU: VM8824-AT
- Pick Up Available
- Australian Warranty
- Checkout Securely

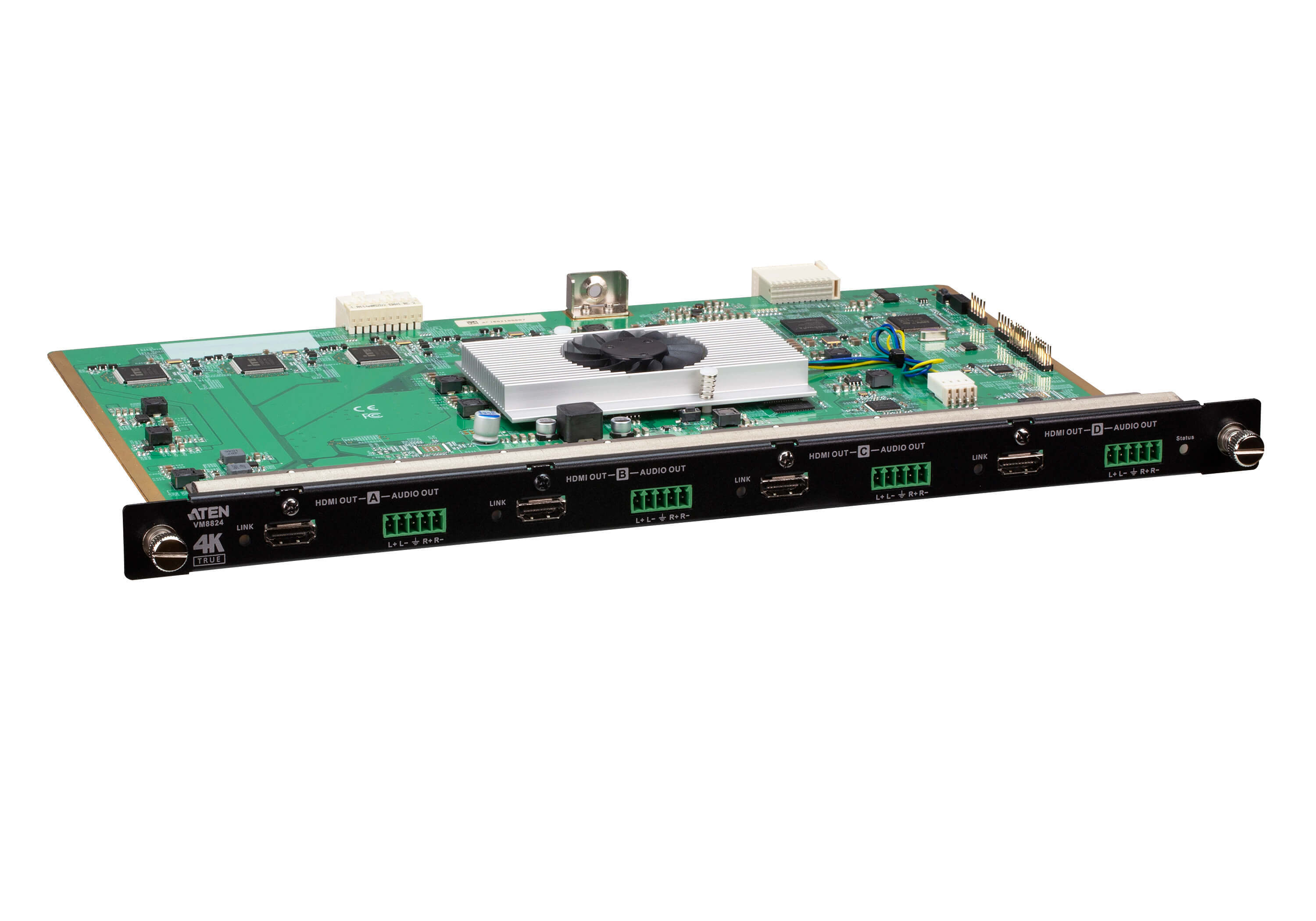

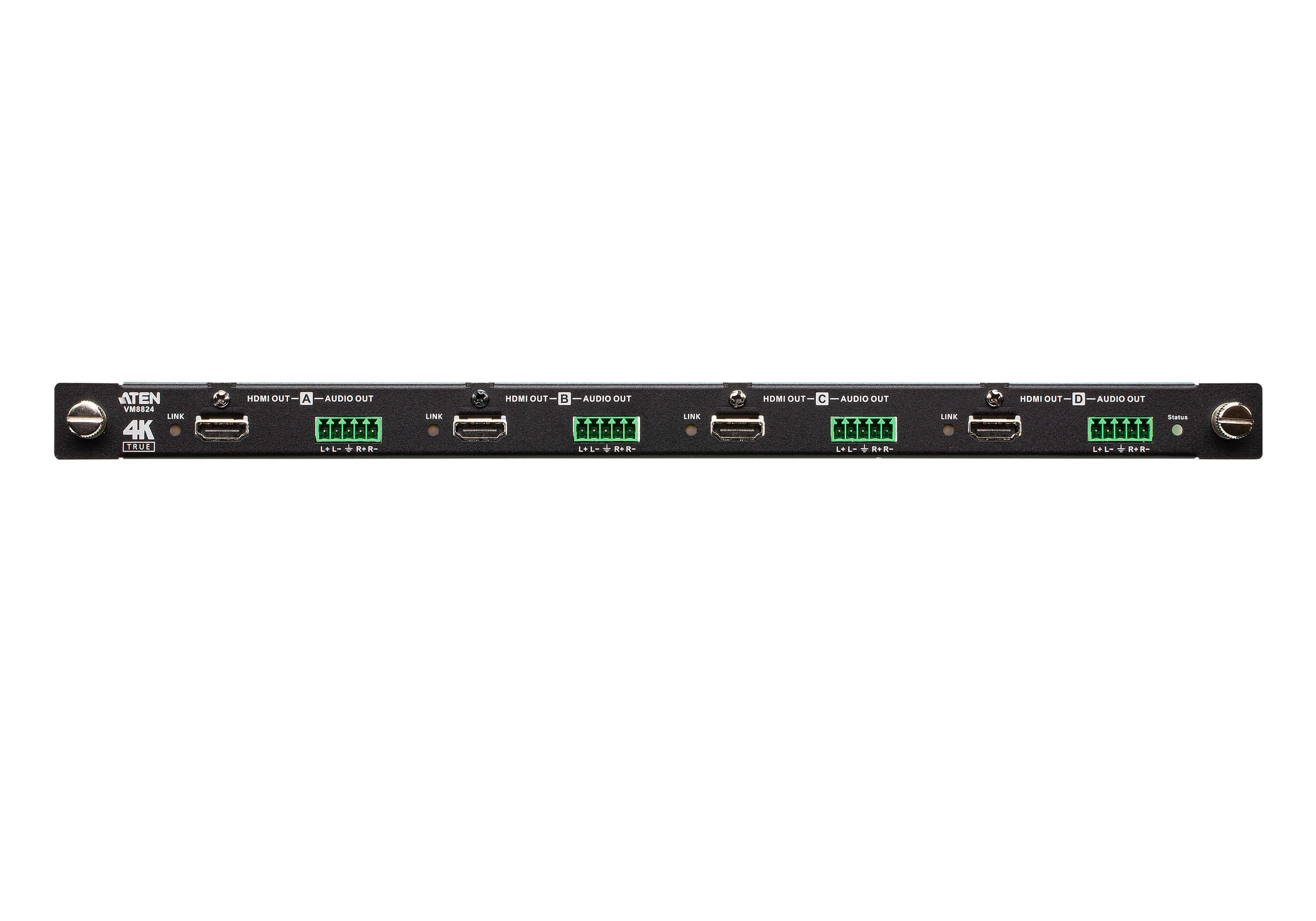

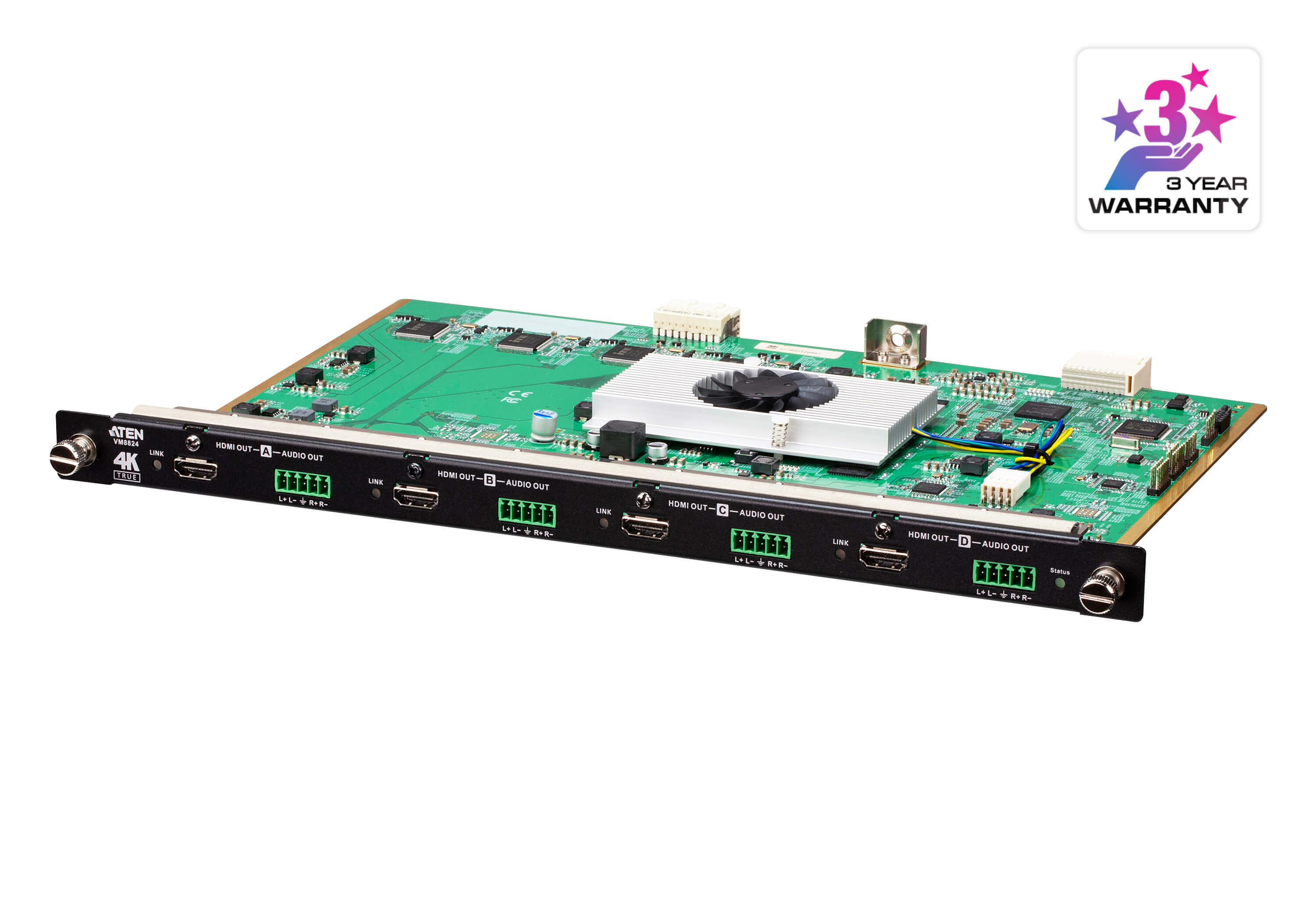

The VM8824 is a True 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 analog/digital audio/video sources to 4 HDMI displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM8824 also provides 4 stereo audio output ports that enable HDMI audio extraction.
Considering video wall applications always require fast video switching and resolution adaptation, the VM8824 supports Seamless Switch™ technology that provides real-time video switching, a built in 4K scaler that handles different video resolutions, and the EDID Expert technology for fast smooth switching between displays. All of ATEN’s VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
Package Contents
- 1x VM8824 4-Port True 4K HDMI Output Board
- 4x Terminal Blocks
- 1x User Instructions
(VM8824-AT)
| Video Output | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | Up to 5.0m |
| Video | |
| Max. Data Rate | 18.0 Gbps (6.0 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolution | 4096x2160/3840x2160@60Hz (4:4:4) |
| Audio | |
| Output | 4 x Captive Screw Connector, 5 pole * Audio signal type: stereo, balanced/unbalanced. |
| Power Consumption | 38.97W:183BTU |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.65 kg ( 1.43 lb ) |
| Dimensions (L x W x H) | 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) |
| Carton Lot | 2 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| SKU | VM8824-AT |
| Brand | ATEN |
| Shipping Weight | 0.6500kg |
