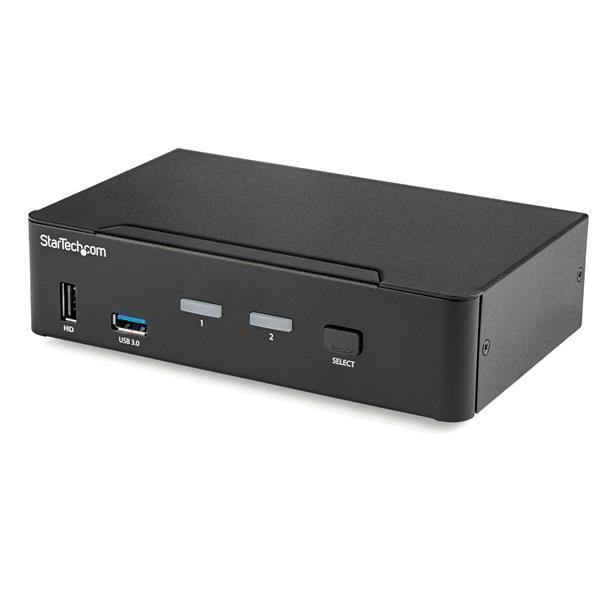

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

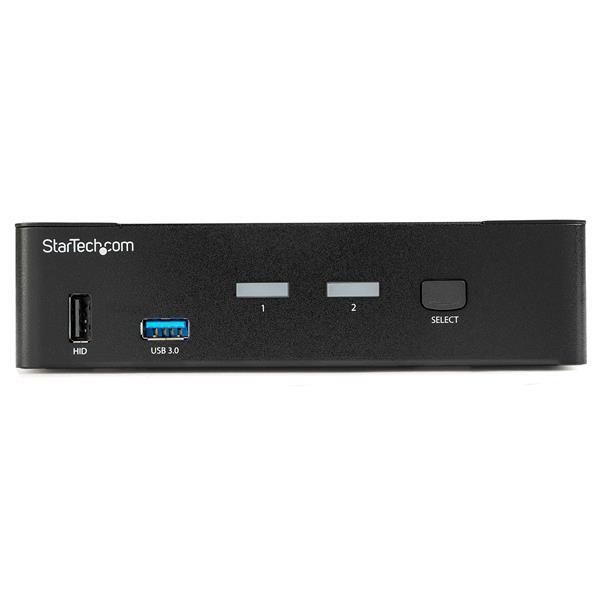

The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

(SV231DPU34K)

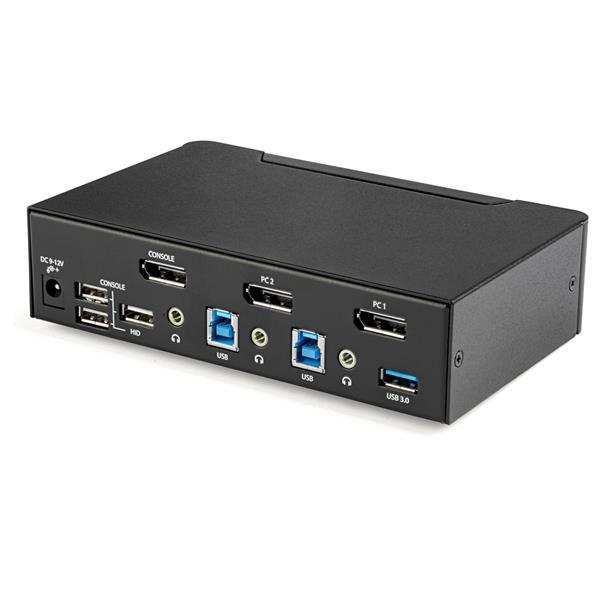

Connector(s)
Console Interface(s)3.5 mm Mini-Jack (3 Position) Female Output
DisplayPort (20 pin) Female Output
USB Type-A (4 pin; HID Port) USB 1.1 Female
USB Type-A (9 pin) USB 3.0 Female
Host Connectors3.5 mm Mini-Jack (3 Position) Female Input
DisplayPort (20 pin) Female Output
USB Type-B (9 pin) USB 3.0 Female
Environmental
Humidity0% - 80%
Operating Temperature0? ~ 40?
Storage Temperature-10? ~ 60?
Hardware
AudioYes
Cables IncludedNo
Daisy-ChainNo
Industry StandardsUSB 3.0
DisplayPort 1.2
HDCP 2.2
KVM Ports2
Number of Monitors Supported1
PC InterfaceUSB 3.0
PC Video TypeDisplayPort
Indicators
LED IndicatorsGreen
Red
Packaging Information
Package Height91 mm [3.6 in]
Package Length23.8 cm [9.4 in]
Package Width18.9 cm [7.4 in]
Shipping (Package) Weight1 kg [2.3 lb]
Performance
Audio Specifications2-Channel Stereo
DVI SupportNo
Hot-Key SelectionYes
IP ControlNo
Maximum Digital Resolutions3840x2160 @ 60Hz
Maximum Number of Users1
MTBF60000 hours
On-Screen DisplayNo
Port Selection SupportPush Button and Hotkeys
Supported Resolutions1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
Wide Screen SupportedYes
Physical Characteristics
ColorBlack
Enclosure TypeSteel
Product Height4 cm [1.6 in]
Product Length10 cm [3.9 in]
Product Width16 cm [6.3 in]
Weight of Product0.6 kg [1.3 lb]
Power
Center Tip PolarityPositive
Input Current0.6A
Input Voltage100 - 240 AC
Output Current1.5A
Output Voltage12 DC
Plug TypeM
Power Consumption (In Watts)18 W
Power SourceAC Adapter Included
Prominence
Description CDW 75 - 1st LineStarTech.com 2-Port DisplayPort KVM Switch - 4K 60Hz - TAA Compliant
What's in the Box
Included in PackageKVM Switch
Quick-Start Guide
Rubber Foot Pads
Universal Power Adapter (NA/JP, EU, UK, ANZ)
SKU SV231DPU34K
Barcode # 65030880121
Brand Startech
Shipping Weight 1.0500kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.240m
Shipping Cubic 0.001200000m3
