StarTech 8 Port 1U Rackmount DVI USB KVM Switch - SV831DVIU
Model # SV831DVIU
-
SKU: SV831DVIU
- Pick Up Available
- Australian Warranty
- Checkout Securely
The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.

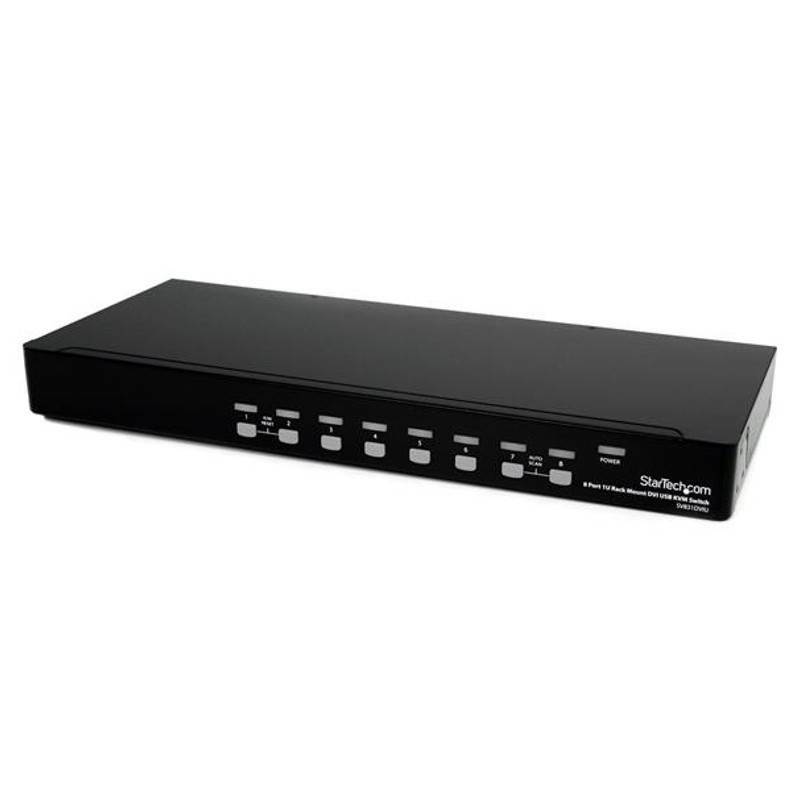

The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
(SV831DVIU)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| Audio | No | |
| Cables Included | No | |
| Daisy-Chain | No | |
| KVM Ports | 8 | |
| Number of Monitors Supported | 1 | |
| PC Interface | USB | |
| PC Video Type | DVI | |
| Rack-Mountable | Yes | |
| U Height | 1U | |
| Performance | ||
| DVI Support | Yes - Single Link | |
| Hot-Key Selection | Yes | |
| IP Control | No | |
| Maximum Cable Length | 15 ft [4.6 m] | |
| Maximum Digital Resolutions | 1920 x 1200 | |
| Maximum Number of Users | 1 | |
| MTBF | 134000 hours | |
| On-Screen Display | No | |
| Port Selection Support | Push Button and Hotkeys | |
| Connector(s) | ||
| Console Interface(s) | 1 - DVI-I (29 pin) Female | |
| 2 - USB Type-A (4 pin) USB 2.0 Female | ||

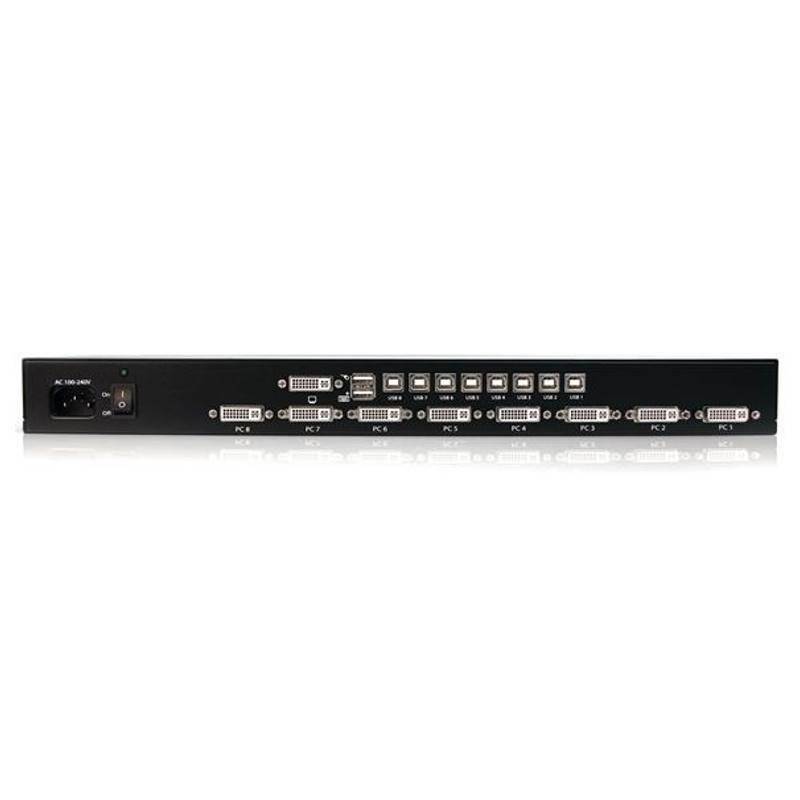

| Host Connectors | 8 - DVI-I (29 pin) Female | |
| 8 - USB B (4 pin) Female | ||
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Special Notes / Requirements | ||
| Note | Supports SUN keyboard emulation | |
| Power | ||
| Center Tip Polarity | Positive | |
| Input Current | 1.8A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 4A | |
| Output Voltage | 12 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 48 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Humidity | 0~80%RH | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Height | 1.7 in [4.4 cm] | |
| Product Length | 7.1 in [18 cm] | |
| Product Width | 17.2 in [43.8 cm] | |
| Weight of Product | 5.5 lb [2.5 kg] | |
| Packaging Information | ||
| Package Height | 3.5 in [90 mm] | |
| Package Length | 23.4 in [59.5 cm] | |
| Package Width | 10.4 in [26.5 cm] | |
| Shipping (Package) Weight | 8.3 lb [3.8 kg] | |
| What's in the Box | ||

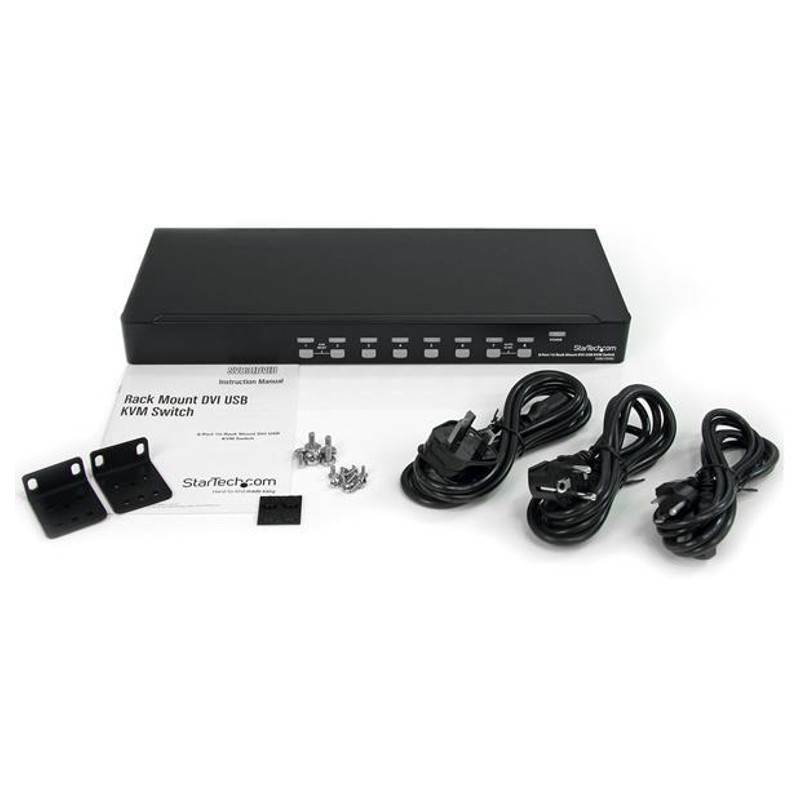

| Included in Package | 1 - 8 Port DVI USB KVM Switch | |
| 1 - Set Rack-mount brackets | ||
| 3 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | ||
| 1 - User Manual | ||
| SKU | SV831DVIU |
| Barcode # | 65030842303 |
| Brand | Startech |
| Shipping Weight | 3.9700kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.090m |
| Shipping Length | 0.596m |
| Shipping Cubic | 0.014483000m3 |
