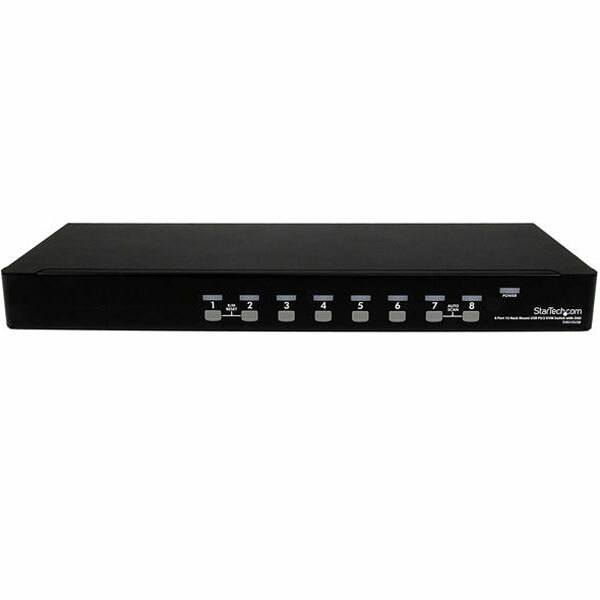

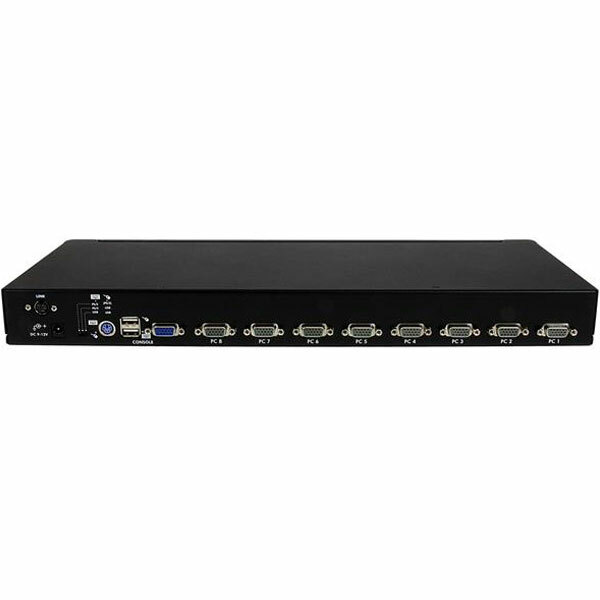

The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support.
The SV831DUSB only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
(SV831DUSB)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| Audio | No | |
| Cables Included | No | |
| Daisy-Chain | Yes | |
| KVM Ports | 8 | |
| Number of Monitors Supported | 1 | |
| PC Interface | USB and PS/2 | |
| PC Video Type | VGA | |
| Rack-Mountable | Yes | |
| Performance | ||
| DVI Support | No | |
| Hot-Key Selection | Yes | |
| IP Control | No | |
| Maximum Analog Resolutions | 1920 x 1440 @60hz | |
| Maximum Cascaded Computers | 64 | |
| Maximum Number of Users | 1 | |
| MTBF | 150000 hours | |
| On-Screen Display | Yes | |
| Port Selection Support | Push Button and Hotkeys | |
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Power | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.2A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 0.6A | |
| Output Voltage | 9 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 5.4 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Operating Temperature | 5°C to 40°C (41°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Height | 1.8 in [4.5 cm] | |
| Product Length | 17.2 in [43.8 cm] | |
| Product Width | 7.1 in [18 cm] | |
| Weight of Product | 6.4 lb [2.9 kg] | |
| Packaging Information | ||
| Package Height | 10.4 in [26.4 cm] | |
| Package Length | 23.4 in [59.5 cm] | |
| Package Width | 3.5 in [88 mm] | |
| Shipping (Package) Weight | 7.6 lb [3.5 kg] | |
| What's in the Box | ||
| Included in Package | 1 - 8-port KVM switch | |
| 2 - mounting brackets | ||
| 1 - PS/2 keyboard and mouse Y cable | ||
| 1 - universal power adapter (NA/EU/UK) | ||
| 4 - foot pads | ||
| 1 - instruction manual | ||
| SKU | SV831DUSB |
| Barcode # | 65030821117 |
| Brand | Startech |
| Shipping Weight | 3.3500kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.090m |
| Shipping Length | 0.594m |
| Shipping Cubic | 0.013900000m3 |
