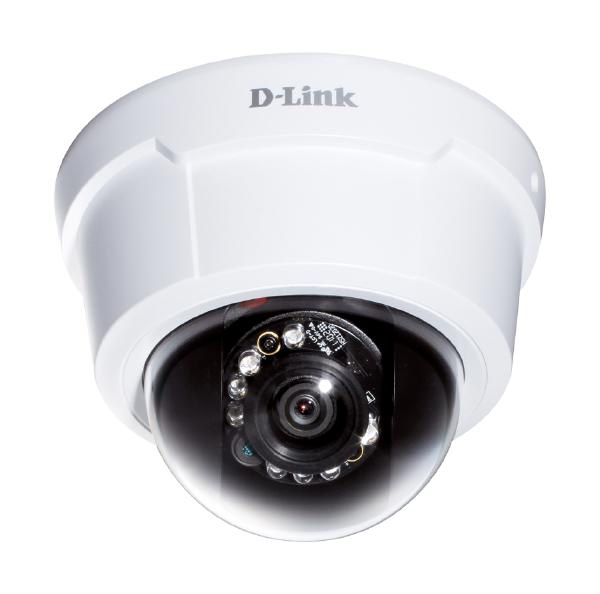

\D-Link's DCS-6113V Full HD Day & Night Vandal-proof Dome IP Camera features industry-leading High-Definition (Full 1080p HD) Megapixel resolution and H.264 compression that offers high-quality live and recorded video footage. DCS-6113V connects to a network to provide live video over the LAN and Internet. This camera also features a 3-axis inner bracket that allows for flexible observation area adjustment. With the free-bundled D-ViewCam 32-channel recording software, this IP camera provides a complete solution for high-quality live viewing and reliable recording.

(DCS-6113V)

Camera Hardware Profile
1/2.7” Full HD progressive megapixel CMOS sensor
10 meter IR illumination distance
Built-in Infrared-Cut Removable (ICR) Filter module
Minimum illumination: 0.12 lux (day mode), 0 lux (night mode) with IR LED
Fixed lens, 4 mm F1.5 with 77.4 degree horizontal viewing angle
256 Mbytes SDRAM
128 Mbytes of flash memory
16X digital zoom
Image Features
Configurable image size, quality and bit rate
Time stamp and text overlays
3 configurable motion detection windows
ePTZ function
5 configurable privacy masks
Flip & mirror
Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness
Video Compression
H.264/MPEG4/MJPEG dual format compression simultaneously
JPEG for still image
H.264/MPEG-4 multicast streaming
Video Resolution
1920x1080 @ 15 fps, 1280x1024 @ 20 fps, 1280x720 @ 30 fps, 640x480 @ 30 fps, 320x240 @ 30 fps, 176x144 @ 30 fps
Audio Features
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kpbs to 128 kbps
Supports two-way audio and audio mute
General Power Input: 12 V DC 1.25 A, 50/60 Hz, IEEE 802.3af PoE
Max. Power Consumption: 5.3 W
Operating Temperature: -0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 70 °C (-4 to 158 °F)
Humidity: 90% non-condensing
Vandal-proof: IK-10 standard
Weight: 578 g (1.27 lbs)
Certifications: CE (Class A), CE LVD (EN60965-1), FCC (Class A), ICES-003, C-Tick
Network Network Protocols
IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS,
Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, LLTD, CoS/QoS, SNMP, IGMP, 802.1x, ONVIF Compliant
Security
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption
HTTPS streaming
Remote client access control
System Management System Requirements for Web Interface
Operating system: Microsoft Windows 7, Vista, XP, 2000 Browser: Internet Explorer 6 or higher, Chrome, Firefox, Safari
D-ViewCam™ System Requirements
Operating System: Microsoft Windows 7, Vista, XP
Web Browser: Internet Explorer 6 or higher
Protocol: Standard TCP/IP
Event Management
Motion detection
Tamper detection
Supports multiple HTTP, SMTP and FTP servers
Multiple event notification
Multiple recording methods for easy backup
Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
Remote Management
Configuration accessible via web browser
Take snapshots/video clips and save to local hard drive or NAS via web browser
Surveillance Software Function
Remote management/control of up to 32 cameras
Viewing of up to 32 cameras on one screen
Supports all management functions provided in web interface
Scheduled motion triggered, or manual recording options
Supported PDA, Mobile Phones, and Software
Handsets with 3GPP player, QuickTime 6.5, Real Player 10.5, Windows 2000/ XP/ Vista or 7
External Device Interface
DI and DO for external sensor and alarm
External audio input (MIC in)
External audio/video output (AV out)
TV system switch (NTSC/ PAL)
MicroSD card slot
SKU DCS-6113V
Barcode # 790069371233
Brand D-Link
Shipping Weight 1.5000kg
Shipping Width 0.210m
Shipping Height 0.140m
Shipping Length 0.270m
Shipping Cubic 0.007938000m3

Manufacturer Warranty

12 Months Limited Warranty



  Manufacturer Contact Info

  http://www.dlink.com.au/tech/
  1300 766 868
