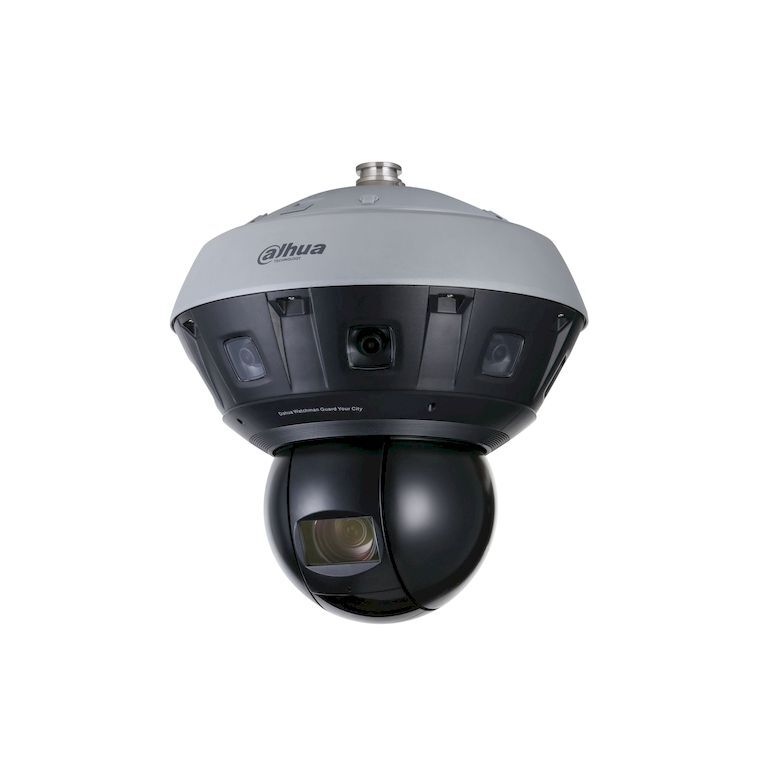

Camera Image Sensor 1/1.8”4Megapixel progressive CMOS Max. Resolution 8192 (H) × 2700 (V) ROM Panoramic network camera: 4 GB PTZ camera: 32 GB RAM Panoramic network camera: 8 GB PTZ camera: 4 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination Panoramic network camera: 0.001 Lux (Color); 0.0002 Lux (B/W) PTZ camera: 0.001 Lux (Color); 0.0001 Lux (B/W); 0 Lux (IR on) S/N Ratio > 56 dB Illumination Distance PTZ camera: ? 400 m (1312 ft) (IR LED) Illuminator On/Off Control Auto/Manual/Zoomprio Illuminator Number 7 (IR LED) Pan/Tilt/Rotation Range Pan: 0° to 355° Tilt: -12° to 90° Rotation: 0°–355° Lens Lens Type Panoramic network camera: Fixed-focal PTZ camera: Vari-focal Mount Type Panoramic network camera: M12 PTZ camera: Module Focal Length Panoramic network camera: 2.8 mm PTZ camera: 5.5 mm-220 mm Max. Aperture Panoramic network camera: F1.6 PTZ camera: F1.35–F4.8 Field of View Panoramic network camera: Horizontal: 270° Vertical: 111° PTZ camera: Horizontal: 2.27°–61.4° Vertical: 1.3°–35.99° Diagonal: 2.62°–68.18° Iris Type Panoramic network camera: Fixed PTZ camera: Auto Close Focus Distance Panoramic network camera: 1.4 m (4.6 ft) PTZ camera: 0.5 m–2 m (1.6 ft–6.6 ft) DORI Distance Lens Detect Observe Recognize Identify Panoramic network camera 57.9 m (190.0 ft) 23.2 m (76.1 ft) 11.6 m (38.1 ft) 5.8 m (19.0 ft) PTZ camera 2873.1 m (9426.2 ft) 1149.2 m (3770.3 ft) 574.6 m (1885.2 ft) 287.3 m (942.6 ft) Professional, intelligent IVS (Perimeter Protection) Tripwire; intrusion Crowd Distribution Map Crowd map, global crowd density; crowd density in area; people counting in area; smart track for crowd density exception Vehicle Density Parking upper limit; traffic congestion alarm Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.264+ Smart H.265+ Video Frame Rate Panoramic network camera: Main stream: 8192 × 2700@1–25/30 fps Sub stream 1: 2048 × 680@1–25/30 fps Sub stream 2: 3840 × 1248@1–25/30 fps PTZ camera: Main stream: 2560 × 1440@1–25/30 fps Sub stream 1: 704 × 480@1–25/30 fps Sub stream 2: 1920 × 1080@–25/30 fps Stream Capability 3 streams Resolution Panoramic network camera: Main stream: 8192 × 2700; 7680 × 2520; 5760 × 1896; 4096 × 1360 Sub stream 1: 2048 × 680; 1600 × 532; 1280 × 420 Sub stream 2: 3840 × 1248; 2560 × 840 PTZ camera: Main stream: 2560 × 1400; 2048 × 1536; 1920 × 1080; 1280 × 960; 1280 × 720 Sub stream 1: 704 × 576/704 × 480; 352 × 288/352 × 240 Sub stream 2: 1920 × 1080; 1280 × 960; 1280 × 720 Bit Rate Control CBR/VBR Video Bit Rate Panoramic network camera: H.264: 127 kbps– 65536 kbps H.265: 50 kbps– 65536 kbps PTZ camera: H.264: 32 kbps– 17152 kbps H.265: 12 kbps– 10240 kbp Day/Night Auto (ICR)/Color/B/W BLC Yes HLC Yes WDR Panoramic network camera: DWDR PTZ camera: 120 dB Scene Self-adaptation (SSA) Yes White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Panoramic network camera: Yes (4 areas) PTZ camera: Yes (4 areas) Electronic Image Stabilization (EIS) Panoramic network camera: Not support PTZ camera: Yes Smart Illumination Yes Defog Panoramic network camera: NA PTZ camera: Optical defog Flip Panoramic network camera: NA PTZ camera: 180° Privacy Masking Panoramic network camera: 4 areas PTZ camera: 24 areas Audio Audio Compression PCM;G.711A;G.711Mu;G.726;G.723 Alarm Alarm Event No SD card; SD card full; SD card error; SD card service life warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; safety exception; crowd congestion; vehicle congestion; parking upper limit Audio Sampling 8 KHz; 16 KHz; 32 KHz; 48 KHz; 64 KHz Network Network RJ-45 (10/100/1000 Base-T) SDK and API Yes Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;Genetec User/Host 20 (Total bandwidth: 1000 M) Storage Micro SD card (support max. 256 G); FTP; SFTP; NFS; SMB Browser IE: IE9; IE10; IE11 Chrome: 42 and earlier Firefox: 52 and earlier Management Software EVS; NVR5X-I; IVSS; DSS Pro; M70; Milestone; Genetec PTZ Dome Pan Range Pan: 0° to 360° endless Tilt: –12° to 90°, auto flip 180 Manual Control Speed Pan: 240°/s Tilt: 100°/s Remote Lens Reset Yes Remote PTZ Reset Yes Preset 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Preset/Pattern/Tour/Scan Time Task Yes Three-dimensional Positioning Yes PTZ Limit Yes Position Display Yes Information Display Yes Time Display Yes Certifications Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Port Audio Input 2 channels (terminal) Audio Output 2 channels (terminal) Alarm Input 7 channels in: 5mA 3V–5V DC Alarm Output 3 channels out?1,000mA 30V DC/500mA 50V AC Analog Output 1 channel (CVBS outputs, NBC port) Optical Module Specification SFP optical module, single mode, single fiber 20KmTX-1310nm/RX-1550nm Optical Fiber FC Optical Fiber Module Type Gigabit SFP optical module, single mode, single fiber TX-1550nm/RX-1310nm Power Power Supply 36V DC Operating Voltage 36V DC (±50%) Power Consumption Basic power consumption: 33.7W (36V DC) Max. power consumption (Basic power consumption + WDR + intelligent functions enabled + IR on + PTZ operation): Panoramic network camera: 71.9W (36V DC); PTZ camera: 5.4W Environmental Operating Conditions –40°C to +70°C (–40°F to +158°F)/Less than 95% RH Storage Temperature –40°C to +70°C (–40°F to +158°F) Protection Grade IP66; IK10 (optional) Structure Casing Metal + plastic Dimensions ?383 mm × 389.8 mm(?15.1" × 15.3") Box Dimensions 500 mm × 500 mm × 658 mm (19.7" × 19.7" × 25.9") (L × W × H) Net Weight 14.7 kg (32.4 lb) Gross Weight 19.8 kg (43.7 lb) Installation Wall mount; ceiling mount; pole mount Power Adapter Standard Lens Standard Power Output 12V DC power output, max. current 165mA Others Position GPS/BDS Calibration Manual/Auto
