Eaton SKU 5S1600AU

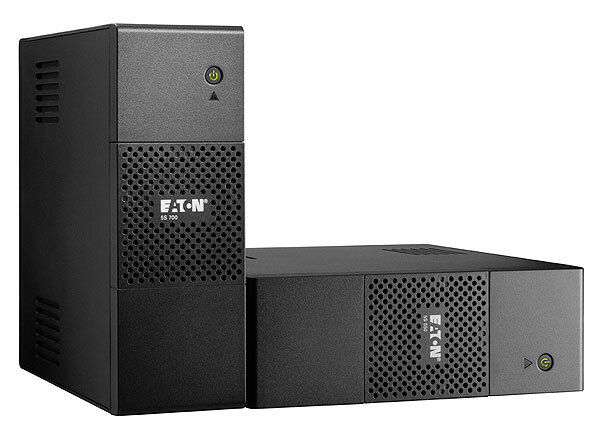

Eaton 5S1600AU 1600VA/960W Line-Interactive Tower UPS

The Eaton 5S1600AU is a 5S Series line-interactive UPS identified as 1600VA / 960W in the supplied product name, with an Australian 10A input plug and USB connectivity.

The supplied record lists 230V AC input, 230V AC output, under-monitor / tower installation and a black enclosure measuring 250 x 87 x 382mm.

1600VA / 960WLine-interactive UPSUnder-monitor / tower2-year warrantyDeviceDeal authorised Eaton reseller

Eaton 5S1600AU 1600VA/960W Line-Interactive Tower UPS

Product overview

Power rating

The supplied record lists 1600VA / 960W.

Australian connection

The structured specification lists an Australian 10A plug and a USB interface.

Installation format

The supplied form factor is under-monitor / tower, with an approximate weight of 11.08kg.

Source review: Confirm the required outlet arrangement, connected load and runtime for the intended equipment before purchase.

Frequently asked questions

What capacity is listed for the Eaton 5S1600AU?

The supplied rating information is 1600VA / 960W.

Does this UPS include USB connectivity?

Yes. The structured specification lists USB.

Which input plug is listed?

The source lists an Australian 10A plug.

What warranty is supplied?

The source lists a two-year limited Eaton manufacturer warranty.

(5S1600AU)

Features

Eaton 5S1600AU 1600VA/960W Line-Interactive Tower UPS

Power and connectivity

Line-interactive topology
Rating: 1600VA / 960W
Input voltage: 230V AC
Output voltage: 230V AC
Australian 10A plug
AVR with booster and fader
6 x 10A outputs stated
LCD display

Battery, management and protection

USB interface
Automatic battery test
Deep-discharge protection
Cold-start capable
Replaceable batteries
Half-load runtime: 12 minutes
Full-load runtime: 4 minutes
Dataline protection: RJ-11; RJ-45
Protection types: Sag; surge; over-voltage; brownout; power failure

Physical and environmental

Under-monitor / tower
Black finish
Dimensions (H x W x D): 250mm x 87mm x 382mm
Approximate weight: 11.08kg
Maximum operating temperature: 40°C
Sound emission: 40dB

Confirm outlet configuration and runtime requirements for the intended connected load.

Technical specifications

Eaton 5S1600AU 1600VA/960W Line-Interactive Tower UPS

Product details
Brand	Eaton
Model / SKU	5S1600AU
Series	5S
Product type	Line-interactive UPS
Product-name rating	1600VA / 960W
Structured load capacity	1600VA / 960W
Power and connections
Power rating	1600VA / 960W
Input voltage	230V AC
Output voltage	230V AC
Input plug	Australian 10A
USB	Yes
Input current	10A
Output current	10A
Additional description details	AVR with booster and fader; 6 x 10A outputs stated; LCD display
Battery and runtime
Battery management	Automatic battery test; deep-discharge protection; cold-start capable; replaceable batteries
Backup time at half load	12 minutes
Backup time at full load	4 minutes
Protection and environment
Dataline protection	RJ-11; RJ-45
Protection types	Sag; surge; over-voltage; brownout; power failure
Maximum operating temperature	40°C
Sound emission	40dB
Physical properties
Form factor	Under-monitor / tower
Height	250mm
Width	87mm
Depth	382mm
Approximate weight	11.08kg
Product colour	Black
Standards and package
Certifications and standards	IEC/EN 62040-1; IEC/EN 62040-5; CB Report; CE Mark
Package contents	5S 1600VA tower/under-monitor UPS; USB cable

SKU	5S1600AU
Barcode #	743172436658
Brand	EATON
Shipping Weight	12.1600kg
Shipping Width	0.330m
Shipping Height	0.160m
Shipping Length	0.492m
Shipping Cubic	0.025978000m3

Warranty information

Eaton 5S1600AU 1600VA/960W Line-Interactive Tower UPS

2-Year Limited Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a two-year limited Eaton manufacturer warranty in Australia, as listed in the supplied product information.
