Eaton SKU 5SX1750RAU

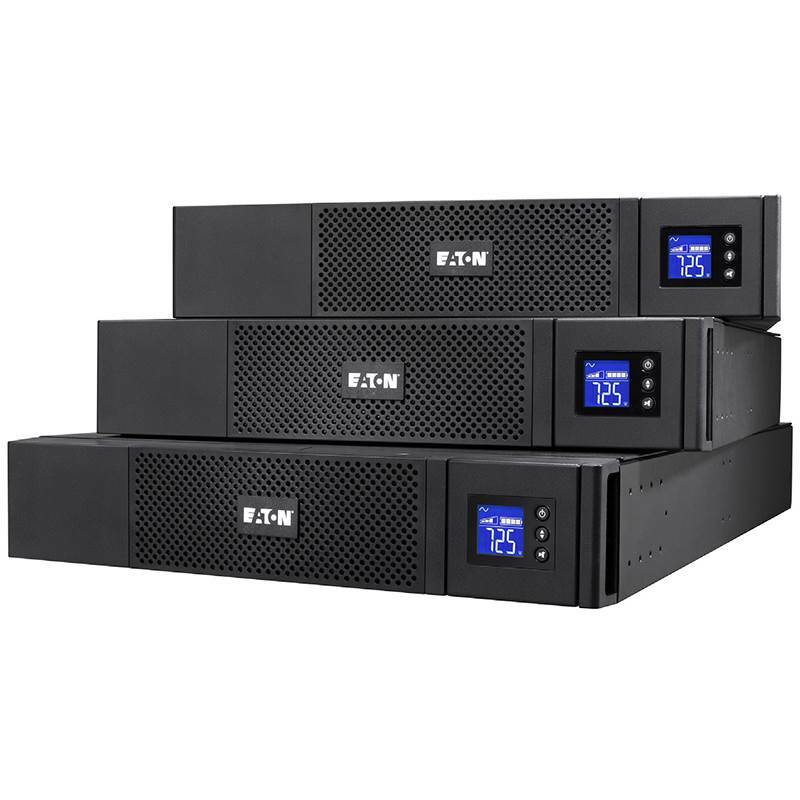

Eaton 5SX1750RAU 1750VA/1580W 230V 2U Rack/Tower UPS

The Eaton 5SX1750RAU 5SX is a 1750VA / 1580W line-interactive sine-wave UPS described for 230V operation in a 2U rackmount format; the structured specification also lists rack/tower installation.

The supplied description lists IEC C14-AU 10A input, 9 x IEC C13 outlets, an LCD monitoring interface, USB and serial connectivity. A rail kit is identified as not included.

1750VA / 1580WLine-interactive sine wave2U rack/tower2-year warrantyDeviceDeal authorised Eaton reseller

Product overview

1750VA / 1580W

The structured load capacity is 1750VA / 1580W with sine-wave output.

LCD and management ports

The source lists an LCD interface for real-time status and measurements, plus USB HID and serial connectivity.

2U installation

The product description identifies 2U rackmount installation and states that the rail kit is not included.

Source review: The description lists nine IEC C13 outlets, while the structured receptacle detail lists eight. It also ends with model text 5SX1750AU, while the SKU and structured part number are 5SX1750RAU. The structured dimensions are labelled height 441.2mm and width 86.2mm, which appears inconsistent with a 2U rack profile; the labels are preserved for review.

Frequently asked questions

What capacity is listed for the Eaton 5SX1750RAU?

The structured specification lists 1750VA / 1580W.

How many output receptacles are listed?

The description lists 9 x IEC C13 outlets; the structured field lists 8 x IEC C13. Any difference is retained for review.

Is the rail kit included?

The supplied description states that the rail kit is not included.

What warranty is supplied?

The source lists a two-year limited Eaton manufacturer warranty.

(5SX1750RAU)

Features

Eaton 5SX1750RAU 1750VA/1580W 230V 2U Rack/Tower UPS

Power performance

Line-interactive topology
Sine-wave output
1750VA / 1580W
230V operation stated

Connections and monitoring

IEC C14-AU 10A
Description outputs: 9 x IEC C13 outlets
Structured outputs: 8 x IEC C13
LCD status and measurements
USB HID
Serial port

Installation and support

2U rackmount description
Rack/tower structured form factor
Rail kit not included
Two-year limited manufacturer warranty

Confirm the source differences noted above and the required rail kit before installation.

Technical specifications

Eaton 5SX1750RAU 1750VA/1580W 230V 2U Rack/Tower UPS

Product details
Brand	Eaton
Model / SKU	5SX1750RAU
Series	5SX
Product type	Line-interactive UPS
Form factor	Rack / tower
Rack height	2U
Load capacity	1750VA / 1580W
Waveform	Sine wave
Power and connections
Input voltage	230V
Input connection stated in description	IEC C14-AU 10A
Structured plug / connector field	Australian 10A
Outputs stated in description	9 x IEC C13 outlets
Structured receptacle detail	8 x IEC C13
Serial port	Yes
USB HID-compliant port	Yes
Display and applications
Status display	LCD interface: real-time status and measurements
Applications listed	Server; IT; virtual platform; IT equipment; ticket machine
Runtime, environment and management
Backup time at half load	9 minutes
Backup time at full load	2 minutes
Sound emission	40dB
Maximum operating temperature	40°C
Network-management options	Network-MS card; Relay-MS card
Physical properties
Approximate weight	26.60kg
Height field	441.2mm
Width field	86.2mm
Depth field	522mm

SKU	5SX1750RAU
Barcode #	743172088970
Brand	EATON
Shipping Weight	30.0000kg
Shipping Width	0.590m
Shipping Height	0.190m
Shipping Length	0.752m
Shipping Cubic	0.084299000m3

Warranty information

Eaton 5SX1750RAU 1750VA/1580W 230V 2U Rack/Tower UPS

2-Year Limited Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a two-year limited Eaton manufacturer warranty in Australia, as listed in the supplied product information.
