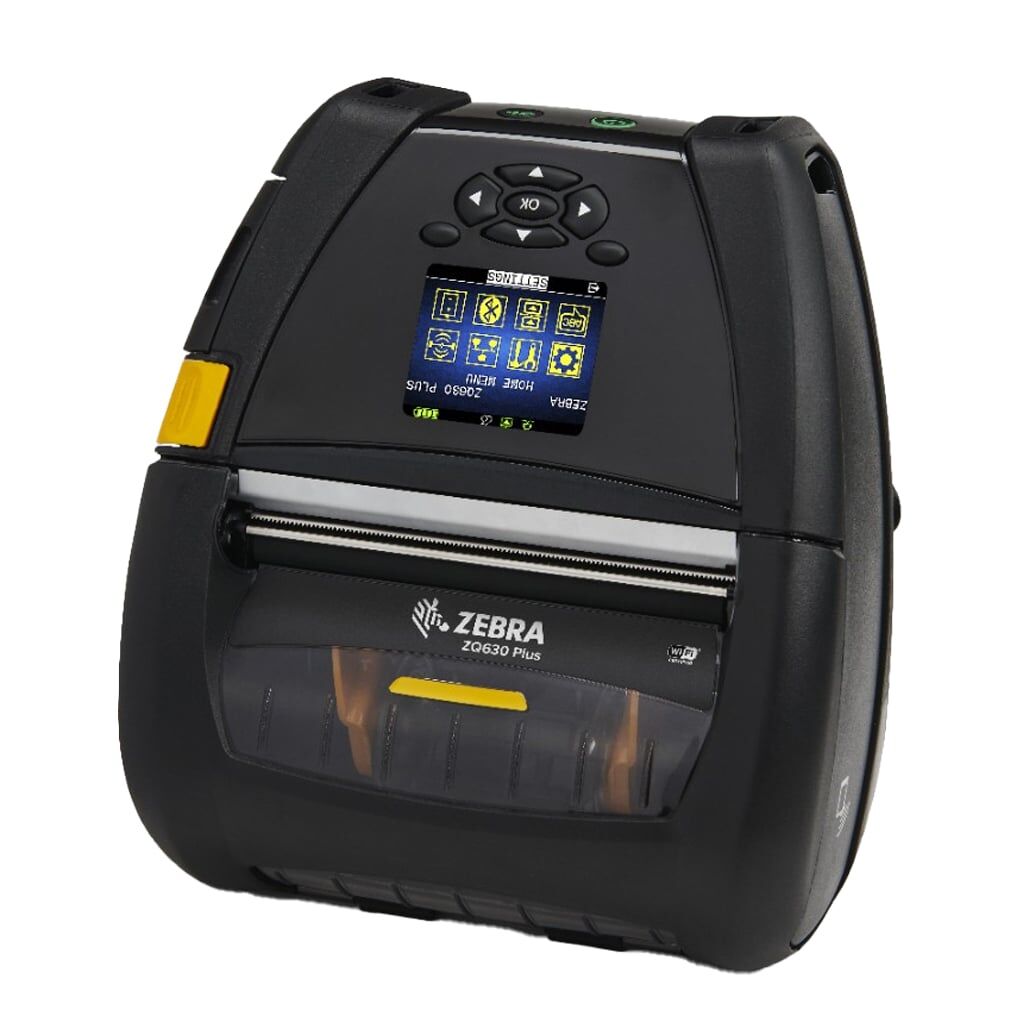

DT Printer ZQ630 Plus; English, Trad Chinese, Korean fonts, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered platen, 0.75 core, Group A, Belt clip

DT Printer ZQ630 Plus; English, Trad Chinese, Korean fonts, Wi-Fi 6 Dual Radio (802.11AX / BT5.x), Linered platen, 0.75 core, Group A, Belt clip

Premium mobile printing and RFID capabilities for maximum productivity

Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630 Plus RFID rounds out Zebra's ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity-6600 mAh-power every minute of the longest shift. The instant wake-up feature on Wi-Fi™ or Bluetooth® ensures the ZQ630 Plus RFID never sleeps on the job. And, the ZQ630 Plus RFID is easier to integrate, manage, setup and secure, thanks to Zebra's Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools.

Premium Features for Maximum Productivity | RFID + Mobility Made Easy

Leading the industry in RFID mobility, Zebra was the first to introduce RFID mobile printers in the market.. The innovative ZQ630 Plus RFID printer gives your workers the flexibility to print and encode RFID labels with ease. Compatible with all current Zebra RFID technology, including tags and encoding schemes, it's easy to extend RFID to a mobile printer.

RFID setup is simple with automatic calibration features that eliminate complex RFID placement guidelines. Insert the RFID media into the ZQ630 Plus and RFID calibrate only once-no need to recalibrate with same-type media changes.

The Industry's First Wi-Fi 6 Mobile Printer

anced roaming. For flexibility, choose between 802.11ax/Bluetooth 5.3 or 802.11ac/Bluetooth 4.2 dual radio options, depending on your network environment.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ630 Plus RFID is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Superior Battery Power and Power Management | Do More on a Single Charge

With the ZQ630 Plus RFID's high-capacity battery, you can be sure that every worker has plenty of power for every shift

Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.

Extraordinary Battery Management Capabilities

The ZQ630 Plus RFID's PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.

(ZQ63-AAXAA04-00)

  • Apple® iOS, Android™ and Windows® Mobile connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL™ and ZPL® programming languages
  • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
  • 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing
  • Black mark sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
  • Center-loading media locking for variable roll widths
  • "Clamshell" design for easy media loading
  • Brochure
Display & Graphics
Display Screen Yes
Interfaces/Ports
USB Host Yes
Power Description
Power Source Battery
Software
Operating System Supported Link-OS
Memory
Flash Memory 512 MB
Standard Memory 256 MB
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 6800 mAh
Battery Included Yes
Physical Characteristics
Weight (Approximate) 1.10 kg
Height 82.6 mm
Width 165.1 mm
Depth 186.7 mm
Fonts & Emulation
Language Emulation CPCL
  EPL
  XML
  ZBI 2.0
  ZPL
Miscellaneous
Platform Supported PC
  iOS
  Android
Energy Star Yes
Power Cable Localization India
Network & Communication
Bluetooth Yes
Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Ethernet Technology Fast Ethernet
Near Field Communication (NFC) Yes
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZQ63AAXAA0400
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZQ630 Plus
Product Name ZQ630 Plus RFID Mobile Printer
Product Series ZQ600
Brand Name Zebra
Media Types & Handling
Media Thickness 190.5 µm
Maximum Roll Diameter 66.04 mm
Media Type Receipt
  Linered Media
  Gap
  Black Bar
  Tag
  Die-cut Label
  Black Mark
  Label
Media Sensor Label Present Sensor
  Black Mark Sensor
  Gap Sensor
Maximum Label Width 111.76 mm
Maximum Label Length 812.80 mm
Technical Information
Application/Usage Healthcare
  Desktop
  Transportation & Logistic
  Warehouse
  Retail
  Mobile
  Manufacturing
  Industrial
Barcode Symbology Supported MSI PLESSEY
  PDF417
  UPC-A
  UPC E with 2 and 5 add on
  UCC/EAN 128
  TLC 39
  QR Code
  EAN-8
  FIM
  POSTNET
  EAN-13
  Data Matrix
  Micro PDF-417
  Maxi Code
  Interleaved 2 of 5
  GS1 DataBar
  2 and 5 Digits Add-on
  AZTEC
  Codabar (NW-7)
  Code 128
  Code 39
  Code 93
Maximum Print Width 104 mm (4.09")
Recommended Use Label/Receipt Print
Connectivity Technology Wireless
Features Water Resistant
  Dust Resistant
  Shoulder Strap
  Belt Clip
Print Technology Direct Thermal
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 813 mm
Character Sets Universal Font Scaling Technology (UFST)
  Agfa Monotype
Ingress Protection (IP) Rating IP54
Maximum Print Resolution (dpi) 203
SKU ZQ63-AAXAA04-00
Brand ZEBRA
Shipping Weight 1.3000kg
Shipping Width 0.090m
Shipping Height 0.195m
Shipping Length 0.170m
Shipping Cubic 0.002983500m3

Manufacturer Warranty: 1 Year Manufacturer Warranty
