QNAP TL-D800S 8-Bay Desktop SATA JBOD Expansion Unit

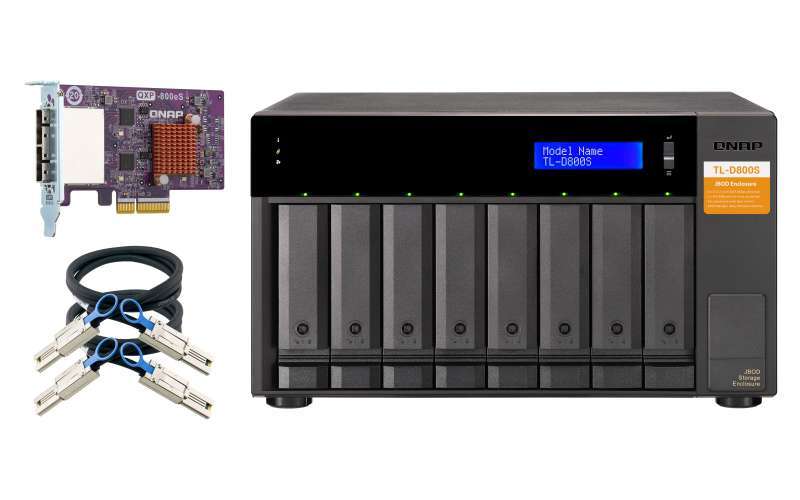

The QNAP TL-D800S is a high-capacity 8-bay desktop SATA JBOD expansion unit designed to easily increase your storage capacity. It comes bundled with the QXP-800eS-A1164 PCIe SATA host card and two SFF-8088 to SFF-8088 SAS/SATA 6Gb cables, ensuring fast, stable, and reliable connections to your NAS or server system.
- 8 Drive Bays: Supports up to 8 SATA drives for scalable storage expansion.
- QXP-800eS-A1164 PCIe SATA Host Card: Provides a high-speed interface for seamless integration with the expansion unit.
- 2 x SFF-8088 to SFF-8088 SAS/SATA 6Gb Cables: Enable reliable, high-speed data transfer between host and expansion unit.
- JBOD Configuration: Flexible expansion without RAID constraints, ideal for diverse storage needs.
- Compact Desktop Form Factor: Suitable for office and home environments requiring space-efficient storage solutions.
Expand your storage infrastructure with the QNAP TL-D800S, delivering high-speed connectivity and flexible storage management.
(TL-D800S)
Specifications
| Bays | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Capacity | Not Included |
| Form Factor | Tower |
| LAN Port | NA |
| Processor/Memory | NA |
| Raid | NA |
| Series | QNAP Enclosure |
| USB Port | NA |
| Warranty | 2 Years |
| Audio Alert On/Off Switch | Yes |
| Buttons | Power switch, enter, select |
| Dimensions (HxWxD) | 188.2 × 329.3 × 279.6 mm |
| Drive Compatibility | 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives |
| Fan | 2 x 120mm, 12VDC |
| Fan Mode Switch | Yes (Auto, high, medium, low) |
| Host Interface | 2 x SFF-8088 |
| Kensington Security Slot | Yes |
| LCD Display/ Button | Yes |
| LED Indicators | HDD 1-8, Status, Link, Fan error |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Power Consumption: Operating Mode, Typical | 51.606 W **Tested fully polulated with Seagate ST6000NM0024 hard drives. |
| Power Supply Unit | 250W PSU, 100 - 240V |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| System Warning | Buzzer |
| Weight (Net) | 6.17 kg |
| SKU | TL-D800S |
| Model # | TL-D800S |
| Barcode # | 885022017935 |
| Brand | QNAP |
| Shipping Weight | 8.8000kg |
| Shipping Width | 0.430m |
| Shipping Height | 0.300m |
| Shipping Length | 0.400m |
| Shipping Cubic | 0.051600000m3 |
Maunfacturer Warranty: 2 Years Maunfacturer Warranty
