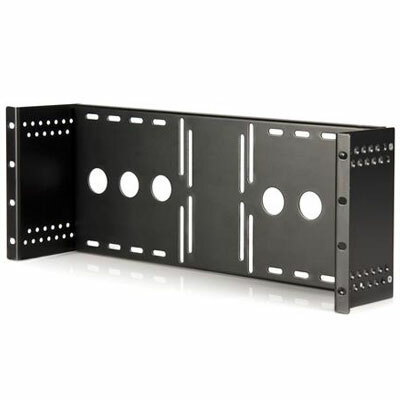

The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.

The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).

Backed by a StarTech.com Lifetime warranty.

(RKLCDBK)

Warranty Information
	Warranty	Lifetime
Hardware
	Cable Management	No
	Frame Type	Steel
	Industry Standards	EIA RS310-D
	U Height	4U
Physical Characteristics
	Color	Black
	Internal Width	17.3 in [438.9 mm]
	Maximum Mounting Depth	3.5 in [88.9 mm]
	Minimum Mounting Depth	0 in [0 mm]
	Weight of Product	3.7 lb [1.7 kg]
Packaging Information
	Package Height	8.7 in [22 cm]
	Package Length	18.6 in [47.2 cm]
	Package Width	2.1 in [54 mm]
	Shipping (Package) Weight	4.3 lb [2 kg]
What's in the Box
	Included in Package	2 - mounting brackets
		1 - LCD bracket
		8 - M5 cage nuts
		8 - M5 screws
		4 - M4 x 10mm LCD mounting screws
		4 - M5 x 10mm bracket screws
		4 - washers
		1 - instruction manual

SKU	RKLCDBK
Barcode #	65030834896
Brand	STARTECH
Shipping Weight	1.9400kg
Shipping Width	0.190m
Shipping Height	0.050m
Shipping Length	0.464m
Shipping Cubic	0.004408000m3
