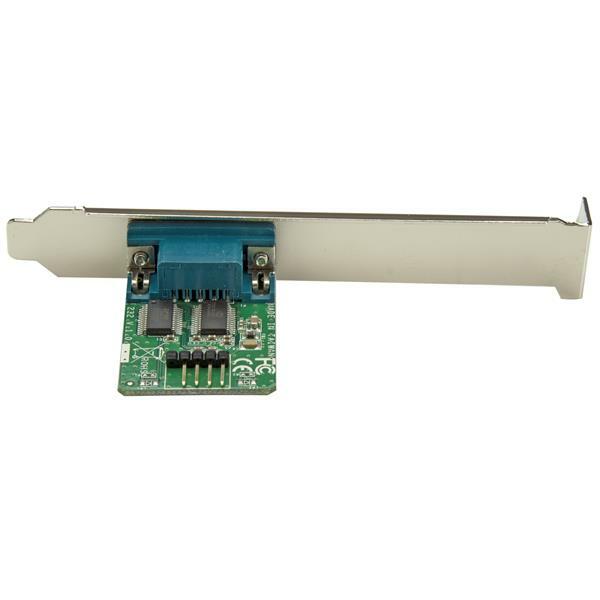

StarTech USB Motherboard Header to Serial Adapter - ICUSB232INT1
Model # ICUSB232INT1
-
SKU: ICUSB232INT1
- Pick Up Available
- Australian Warranty
- Checkout Securely
The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.
Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.
This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
(ICUSB232INT1)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Bus Type | Motherboard Header | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | FTDI - FT232RL | |
| Interface | Serial | |
| Port Style | Integrated on Card | |
| Ports | 1 | |
| Performance | ||
| Data Bits | 7, 8 | |
| FIFO | 256 Bytes | |
| Max Baud Rate | 115.2 Kbps | |
| Parity | None, Odd, Even, Space, Mark | |
| Serial Protocol | RS-232 | |
| Stop Bits | 1, 2 | |
| Connector(s) | ||
| External Ports | 1 - DB-9 (9 pin, D-Sub) Male | |
| Internal Ports | 1 - IDC (10 pin, Motherboard Header) Female | |
| Software | ||
| Microsoft WHQL Certified | Yes | |
| OS Compatibility | Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS® 10.6 to 10.12 Linux 2.4.x to 4.11.x LTS Versions only | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) | |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Physical Characteristics | ||
| Cable Length | 2 ft [0.6 m] | |
| Product Height | 0.5 in [1.2 cm] | |
| Product Length | 1.8 in [45 mm] | |
| Product Width | 4.8 in [12.3 cm] | |
| Weight of Product | 1.1 oz [31 g] | |
| Packaging Information | ||
| Package Height | 1.3 in [32 mm] | |
| Package Length | 6.8 in [17.3 cm] | |
| Package Width | 5.6 in [14.3 cm] | |
| Shipping (Package) Weight | 0.4 lb [0.2 kg] | |
| What's in the Box | ||
| Included in Package | 1 - USB to RS232 Serial Adapter | |
| 1 - Low profile bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | ICUSB232INT1 |
| Barcode # | 65030840934 |
| Brand | Startech |
| Shipping Weight | 0.1200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.000800000m3 |
Manufacturer Warranty: 2 Years Limited Warranty
