Teltonika DIN Rail Ethernet Switch, 4x Gigabit Ethernet with speeds of up to 1000 Mbpsl, Wide range of voltages, , PSU excluded
Model # TSW304000000
-
SKU: TSW304000000
- Pick Up Available
- Australian Warranty
- Checkout Securely
TSW304
DIN RAIL ETHERNET SWITCH

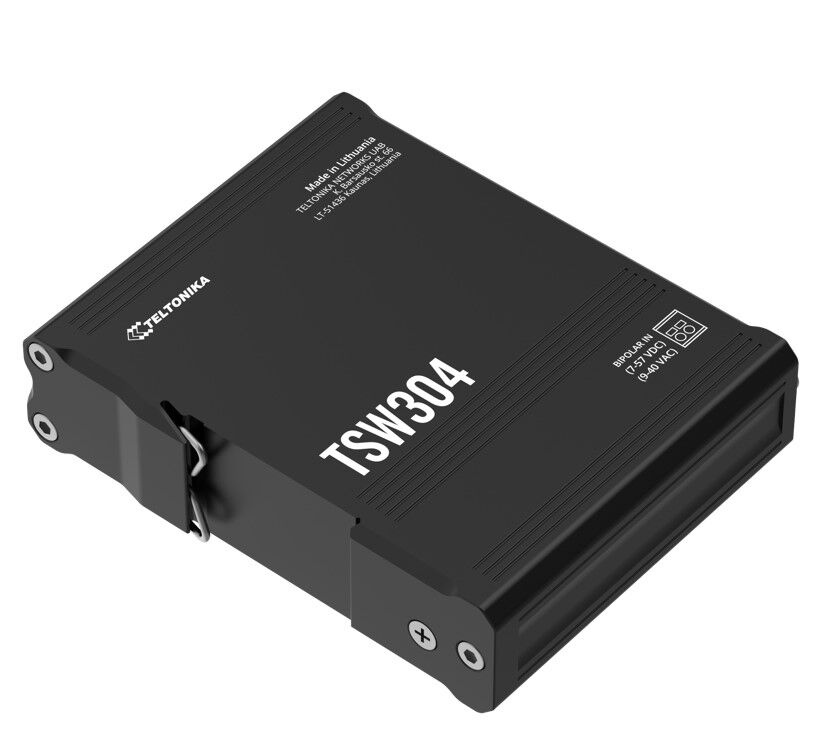

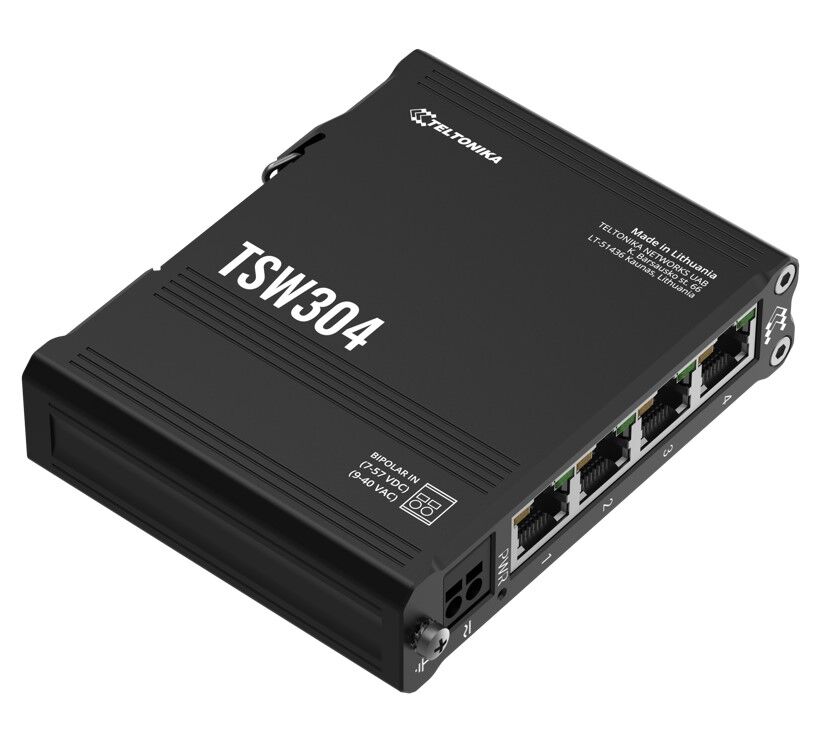

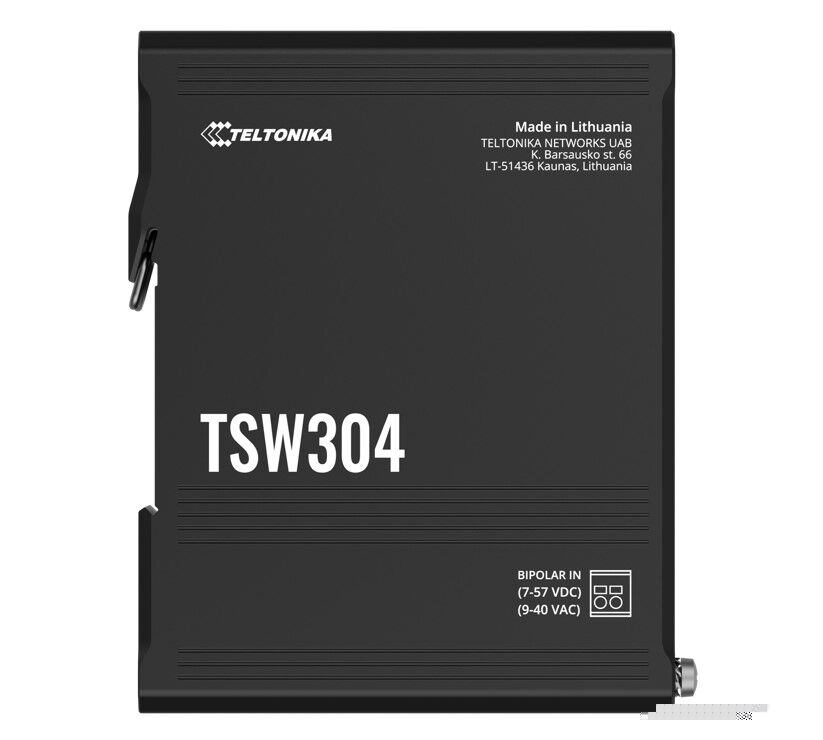

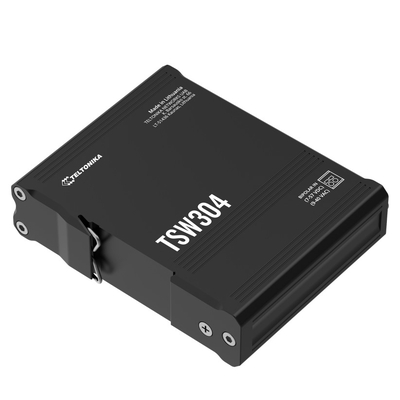

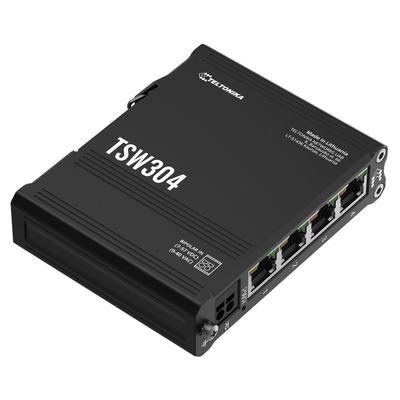

TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
|
MOUNTING
Integrated DIN rail bracket and surface mounting options
|
COMPACT
102 x 25 x 81.5 mm
|
GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
|
7-57 VDC / 9-40 VAC
Wide range of supported power supply voltages
|
For More Case Studies Click Here ...
(TSW304000000)
| Category | Feature | Description |
|---|---|---|
| Ethernet | ETH | 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class A conformance (available with optional order code) |
| Performance Specifications | Bandwidth (Non-blocking) | 8 Gbps |
| Packer buffer | 128 KB | |
| MAC address table size | 2K entries | |
| Jumbo frame support | 9216 bytes | |
| Power | Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 - 57 VDC; 9 - 40 VAC | |
| PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC | |
| Power consumption | Idle: 0.26 W / Max: 1.44 W | |

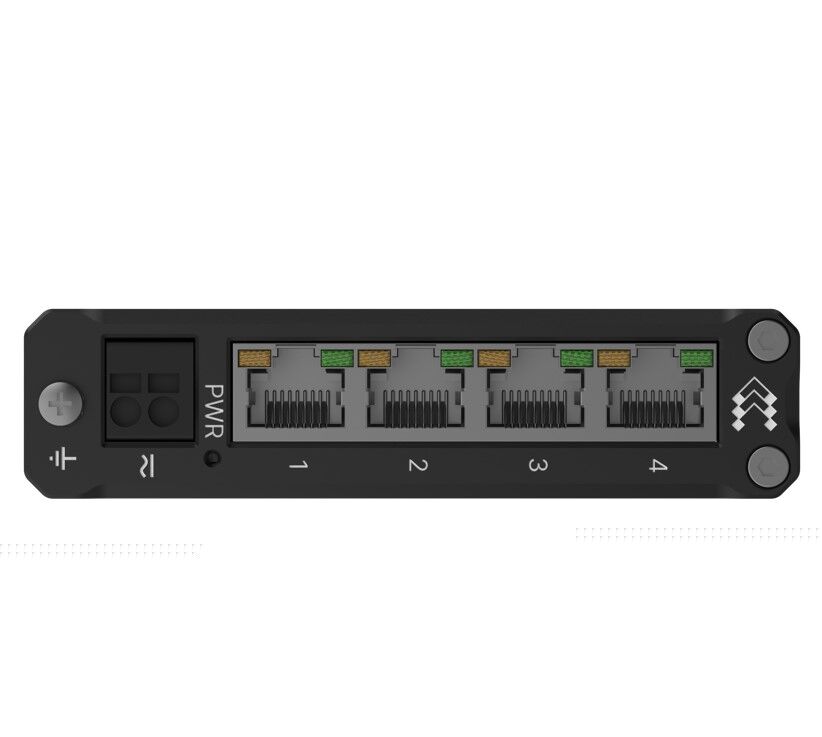

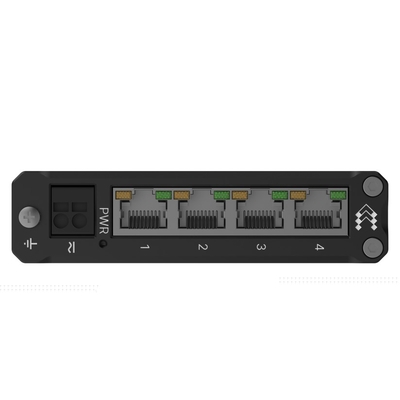

| Physical Interfaces | Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 8 x ETH status LEDs, 1 x Power LED | |
| Power | 1 x 2-pin industrial DC power socket | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Aluminium housing |
| Dimensions (W x H x D) | 102 x 25 x 81.5 mm | |
| Weight | 210 g | |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM |
| Safety | Standards | EN IEC 62368-1:2020+A11:2020IEC 60068-2-6:2007 Environmental testing - Part 2-6IEC 60068-2-27:2008 Environmental testing - Part 2-27IEC 60068-2-31:2008 Environmental testing - Part 2-31 |
| SKU | TSW304000000 |
| Barcode # | 4779051840144 |
| Brand | TELTONIKA |
| Shipping Weight | 0.2600kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
