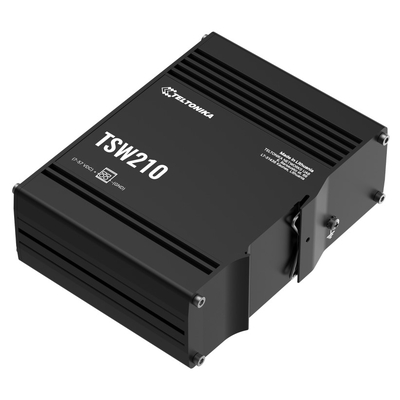

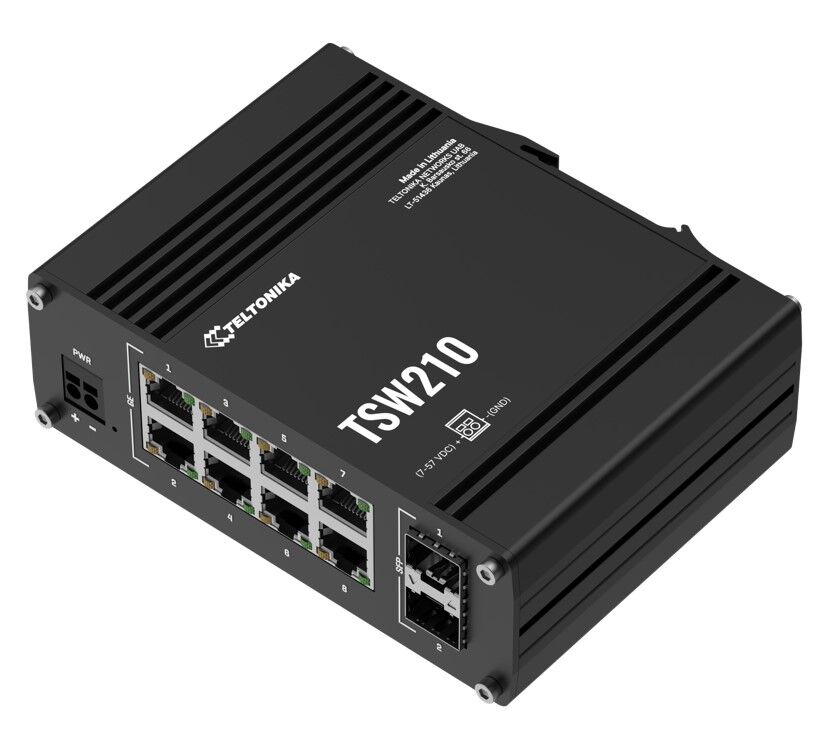

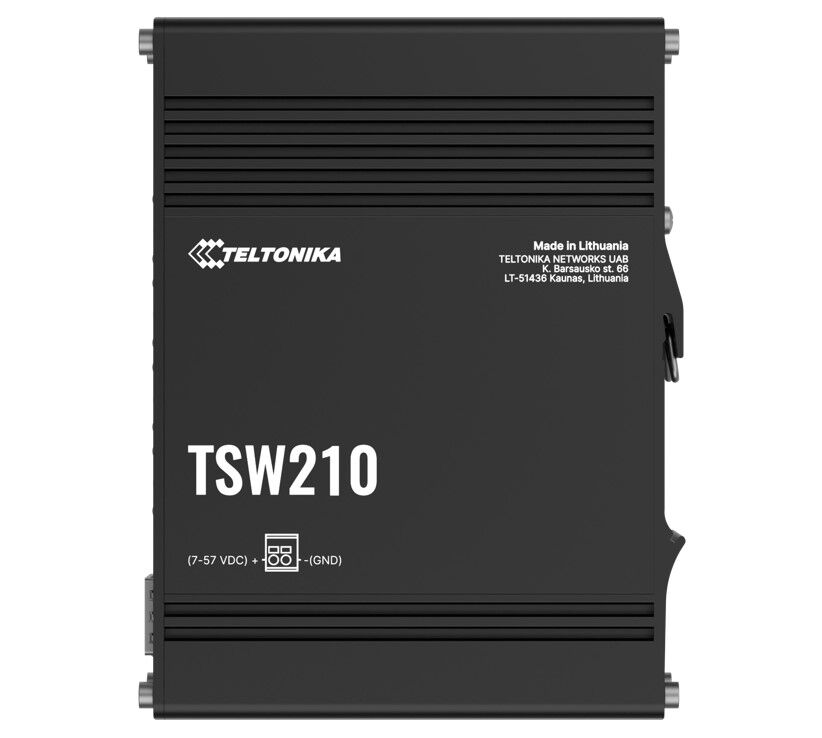

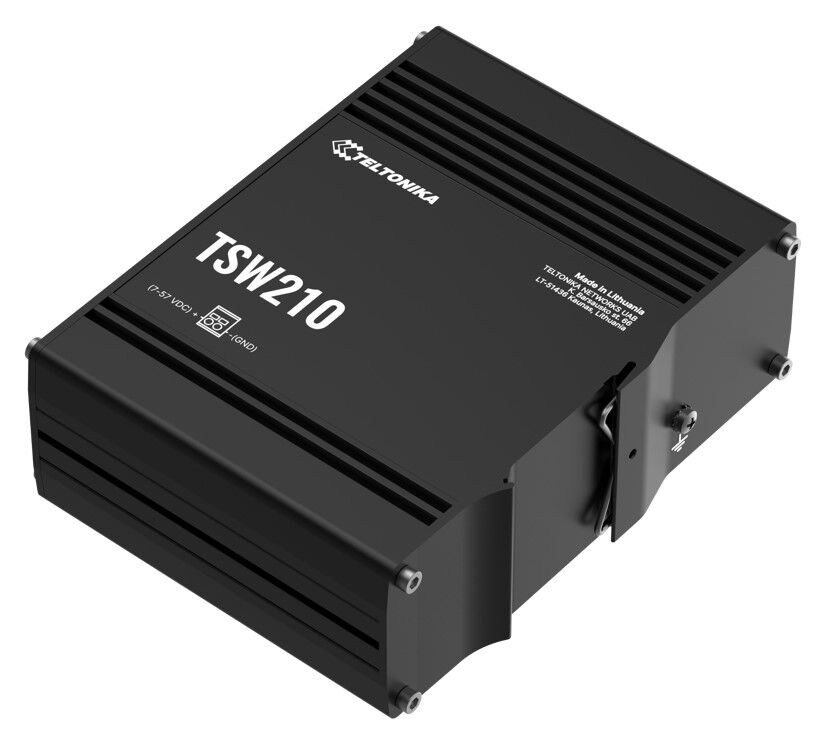

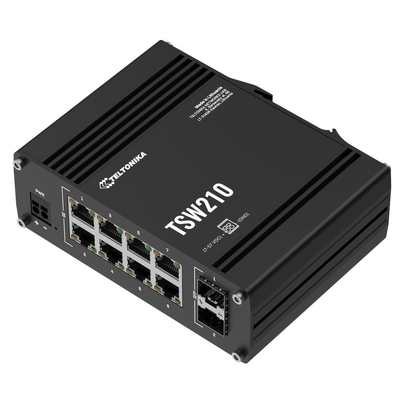

View PDF BrochureTeltonika TSW210 Industrial Ethernet Switch, 2x SFP ports, 8x Gigabit Ethernet ports, DIN rail, PSU excluded
Model # TSW210000010
-
SKU: TSW210000010
- Pick Up Available
- Australian Warranty
- Checkout Securely
TSW210
INDUSTRIAL ETHERNET SWITCH
TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.
| ETHERNET 8 x Gigabit Ethernet ports with speeds of up to 1000 Mbps | PLUG AND PLAY No additional configuration needed | MOUNTING DIN rail and surface mounting options | SFP 2 x SFP ports for long-range fiber-optic communication |
For More Case Studies Click Here ...
(TSW210000010)
| Category | Feature | Description |
|---|---|---|
| Ethernet | ETH | 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fibre | 2 x SFP ports | |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class A conformance (available with optional order code) |
| Performance Specifications | Bandwidth (Non-blocking) | 20 Gbps |
| Packer buffer | 128 KB | |
| MAC address table size | 2K entries | |
| Jumbo frame support | 9216 bytes | |
| Power | Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC | |
| Power consumption | Idle: ~1.03 W / Max: 3.71 W | |

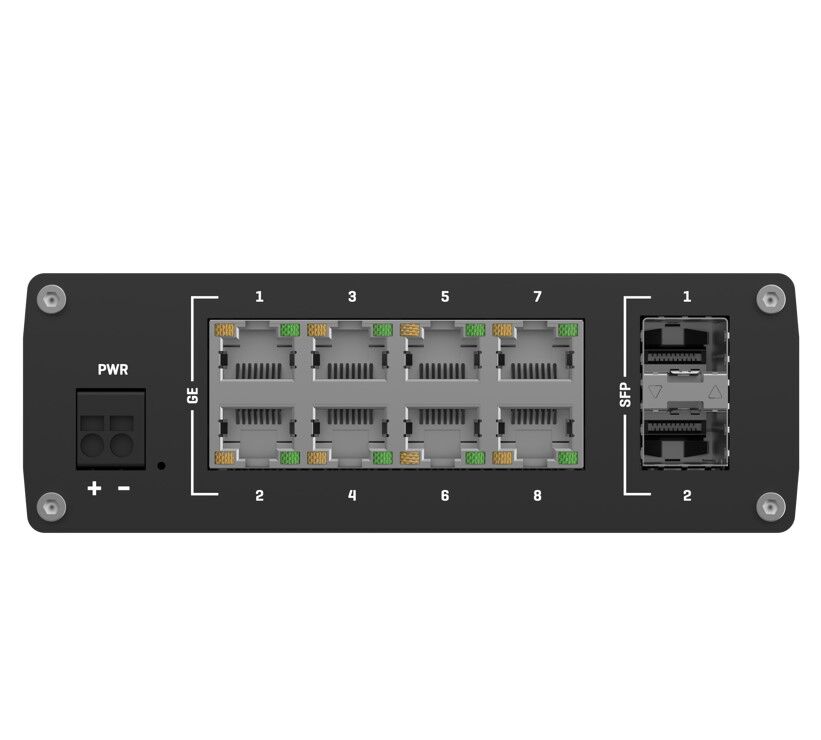

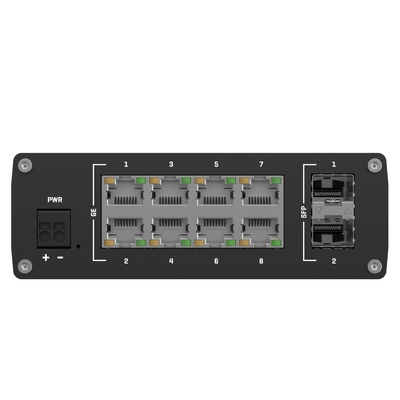

| Physical Interfaces | Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports | |
| Status LEDs | 1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs | |
| Power | 1 x 2-pin industrial DC power socket | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm | |
| Weight | 500 g | |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB, EAC, Kenya, NOM, UL/CSA, Japan, SDPPI (POSTEL) |
| EMC Emissions & Immunity | Standards | EN 55032:2015 + A1:2020EN 55035:2017 + A11:2020EN IEC 61000-3-2:2019 + A1:2021EN 61000-3-3:2013 + A1:2019 |
| ESD | EN 61000-4-2:2009 | |
| EFT | EN 61000-4-4:2012 | |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 | |
| CS | EN 61000-4-6:2014 | |
| DIP | EN IEC 61000-4-11:2020 | |
| Safety | Standards | IEC 62368-1:2018EN IEC 62368-1:2020+A11:2020 |
| Safety (Hazardous Locations) | Standards | UL 62368-1CAN/CSA C22.2 No. 62368-1-19 |
| SKU | TSW210000010 |
| Barcode # | 4779051840243 |
| Brand | TELTONIKA |
| Shipping Weight | 0.9000kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
