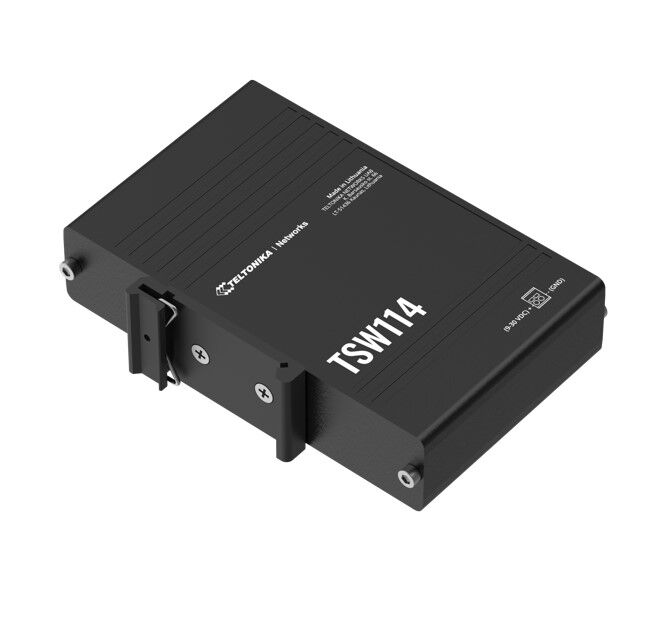

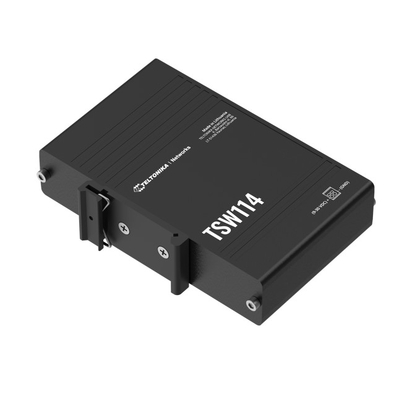

Teltonika Gigabit DIN Rail Ethernet Switch,Easy Mounting, 5x Gigabit Ethernet ports with speeds of up to 1000 Mbps, PSU excluded
Model # TSW11400B000
-
SKU: TSW11400B000
- Pick Up Available
- Australian Warranty
- Checkout Securely

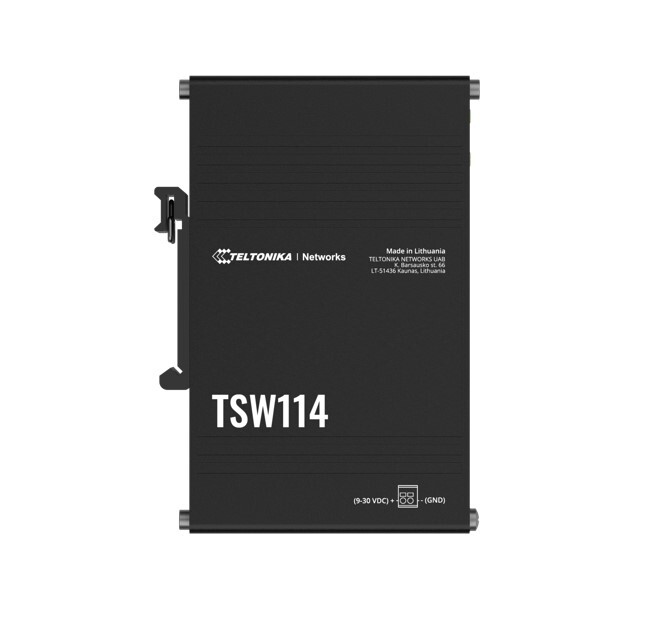

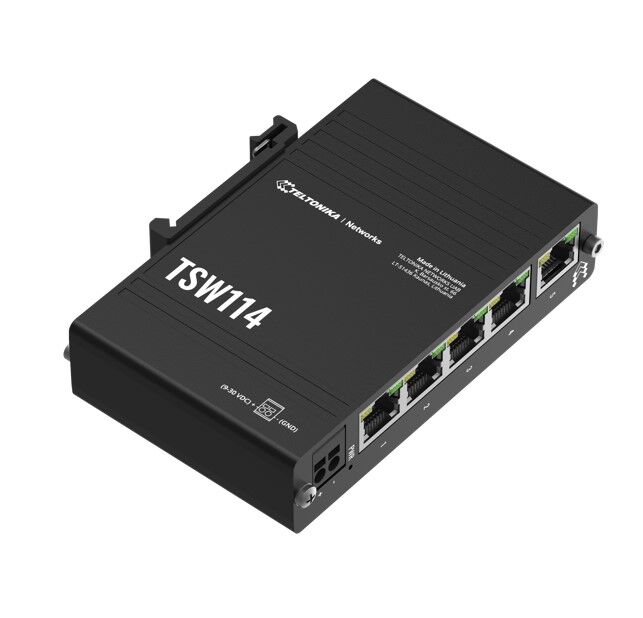

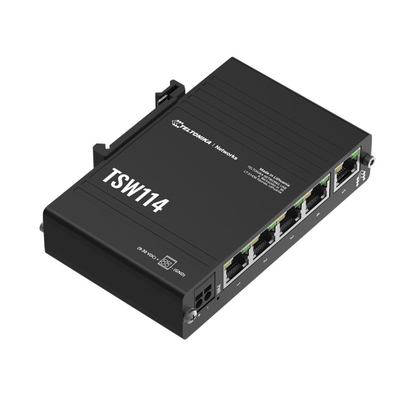

TSW114
GIGABIT DIN RAIL ETHERNET SWITCH
TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.
| EASY MOUNTING Integrated DIN rail bracket and front-facing ports | GIGABIT ETHERNET 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps | COMPACT & DURABLE Rugged anodized aluminum housing that fits in your pocket | PLUG AND PLAY No additional configuration needed |
For More Case Studies Click Here ...
(TSW11400B000)
| Category | Feature | Description |
|---|---|---|
| Ethernet | ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class A conformance (available with optional order code) |
| Performance Specifications | Bandwidth (Non-blocking) | 10 Gbps |
| Packer buffer | 128 KB | |
| MAC address table size | 2K entries | |
| Jumbo frame support | 9216 bytes | |
| Power | Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC | |
| PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC | |
| Power consumption | Idle: 0.3 W / Max: 2.3 W | |

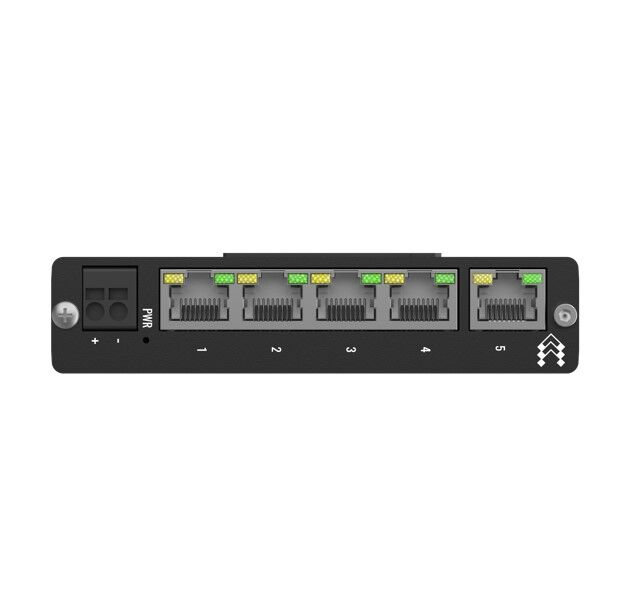

| Physical Interfaces | Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs | |
| Power | 1 x 2-pin industrial DC power socket | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm | |
| Weight | 174 g | |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE |
| EMC Emissions & Immunity | Standards | EN 55032:2015 + A11:2020 + A1:2020EN 55035:2017 + A11:2020 |
| ESD | EN 61000-4-2:2009 | |
| Radiated Immunity | EN IEC 61000-4-3:2020 | |
| EFT | EN 61000-4-4:2012 | |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 | |
| CS | EN 61000-4-6:2014 | |
| Safety | Standards | CE: EN IEC 62368-1:2020 + A11:2020RCM: AS/NZS 62368.1:2022CB: IEC 62368-1:2018 |
| SKU | TSW11400B000 |
| Barcode # | 4779051840298 |
| Brand | TELTONIKA |
| Shipping Weight | 0.2200kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
