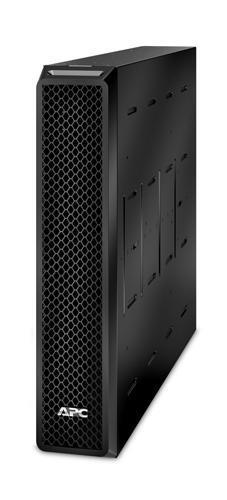

APC Smart-UPS On-Line SRT Battery Pack for 3kVA Extended runtime model 96V

SKU: SRT96BP | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
96V SRT Rackmount Battery pack for 3kVA SRT On-Line UPS
Connect up to 10 battery packs for extended runtime
Predictable and consistent runtime performance
Graceful unattended shutdown of servers and workstations
Peace of mind with 2-year battery warranty

Description

This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications.
This extendable-run battery pack provides extended runtime during prolonged power outages.
Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health.
It is a lead-acid battery with a 2-year warranty.
Its dimensions are 594mm (depth) x 432mm (height) x 85mm (width) and weighs 40.6kg.
Ideal for Smart-UPS on-line mission critical applications.

Product Images

Downloads & Documents

Compatible Products & Accessories

Mounting

SRTRK3

APC Smart-UPS SRT 2 Post Mounting Rail Kit for Smart-UPS SRT

SRTRK4

APC Smart-UPS SRT 19 inch Rail Kit for Smart-UPS SRT 1/1.5/2...

Replacement battery

APCRBC152

APC Replacement Battery Cartridge for Smart-UPS On-Line, 12V...

(SRT96BP)

Specifications - SRT96BP

Overview

Lead time

Usually in Stock

Main

Product or component type	External battery pack
Number of rack unit	2U
Battery type	Lead-acid battery
Provided equipment	Documentation CD User manual Warranty card
Range of product	Smart-UPS Battery Systems

Batteries & Runtime

Number of battery free slots	0
Number of battery filled slots	0
Battery voltage	96 V
Number of battery replacement quantity	2
Replacement battery	APCRBC152

Physical

Colour	Black
Height	432 mm
Width	85 mm
Depth	594 mm
Net weight	40.6 kg
Mounting mode	Rack-mounted with kit

Output

Battery capacity

20 Ah

Environmental

Ambient air temperature for operation	0…40 °C
Operating altitude	0...10000 ft
Relative humidity	0…95 % non-condensing
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Storage Relative Humidity	0…95 % non-condensing

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	23.900 cm
Package 1 Width	59.900 cm
Package 1 Length	83.100 cm
Package 1 Weight	44.500 kg
