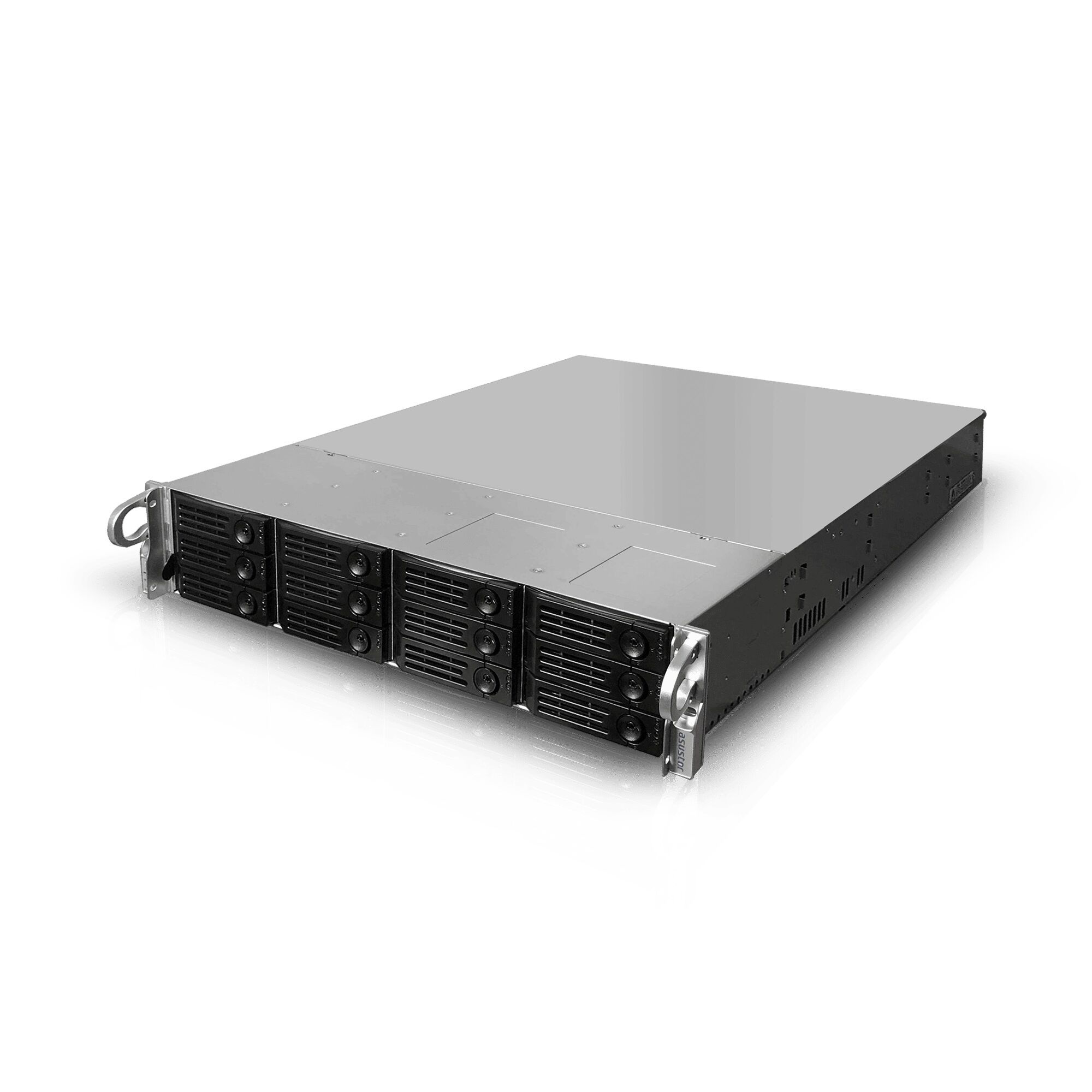

The Xpanstor 12R 12-Bay NAS Expansion Enclosure from ASUSTOR may be used to expand the capacity of your NAS and grow your workflow. It features twelve 3.5/2.5" drive bays that support both SAS III and SATA III drives and connects to your NAS using one of its mini-SAS HD (SFF-8644) ports. Three internal and hot-swappable 80mm fans help keep things running cool, while support for RAID 0, 1, 5, 6, and 10 offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD, and Single allow each drive to be utilized individually. Also featured are dual redundant 650W power supplies, a BMC (IPMI) RJ45 port, and a 2 RU form factor.

  • 12 SAS/SATA hard drive bays
  • 4x Mini-SAS HD (SFF-8644)
  • Supports 2U server racks
  • 650W dual backup power supply
  • Hot-swappable fan design
  • Enterprise-grade stability

Expanding Storage Space

The Xpanstor 12R helps you expand your storage space while enhancing data management flexibility and efficiency. NAS devices serve as a centralized storage solution that offers convenient file sharing, remote access, and backup all in one. When attached to an ASUSTOR NAS, the Xpanstor 12R provides more drive bays for easy capacity expansion, making it especially suitable for enterprise environments that require extensive data storage and management.

Easily Configure Using Storage Manager

The Xpanstor 12R appears in ADM natively and drives appear within Storage Manager, which makes managing and configuring the attached expansion unit easy. Use Storage Manager to set up RAID configurations as well as utilize snapshot features to further enhance data security and reliability.

Dual Redundant Power Supplies and Hot-Swappable Fan Design

The Xpanstor 12R is equipped with two 650W redundant power supplies and three hot-swappable fans, which increases overall operational efficiency and fault tolerance. Both power supplies can automatically switch to the other in the event one fails, ensuring continuous operation and data security. The hot-swappable fan design allows for fan replacement without downtime, effectively reducing maintenance and upgrade costs.

irst-Class Product Warranty

The Xpanstor 12R comes with a five year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.



(AX7012R)

Hardware Specifications

  • Chip: SAS3X28R
  • Flash Memory: 2MB SRAM
  • Expansion: SAS In-port: 2, SAS Out-port: 2
  • HDD: 12 x SATA3/SAS; 3.5"/2.5" HDD/SSD
  • Maximum Internal Raw Capacity: N/A
  • Supports Hot Swappable Drives
  • System Fan: 80 x 38 mm hot-swap cooling fan(s) x 3
  • Power Supply Unit / Adapter: 650W x2
  • Input Power Voltage: 100V to 240V AC
  • Certification: FCC, CE, UKCA, VCCI, BSMI, C-Tick

Operation

  • Operation Temperature: 0°C~40°C (32°F~104°F)
  • Humidity: 5% to 95% RH

Size and Weight

  • Size: 89 (H) x 437 (W) x 647 (D) mm
  • Weight: 13.15 (kg) / 29 (lb)
SKU AX7012R
Brand ASUSTOR
Shipping Weight 13.0000kg
