Eaton SKU 5SC1500IR-AU

Eaton 5SC1500IR-AU 1500VA/1050W 230V 2U Rackmount UPS

The Eaton 5SC1500IR-AU is a 230V line-interactive pure-sine-wave UPS with a structured load capacity of 1500VA / 1050W in a 2U rackmount format.

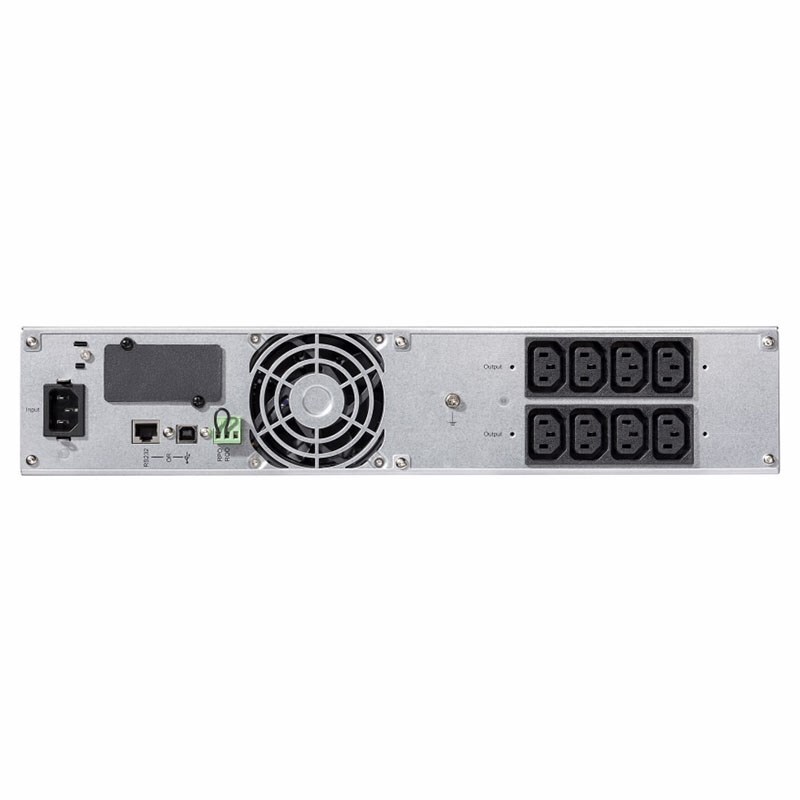

The source lists one IEC C14 10A input, eight IEC C13 10A receptacles, RS-232 serial, USB HID, a communication-card slot and ROO/RPO terminals.

1500VA / 1050W structured ratingPure sine wave2U rackmount2-year warrantyDeviceDeal authorised Eaton reseller

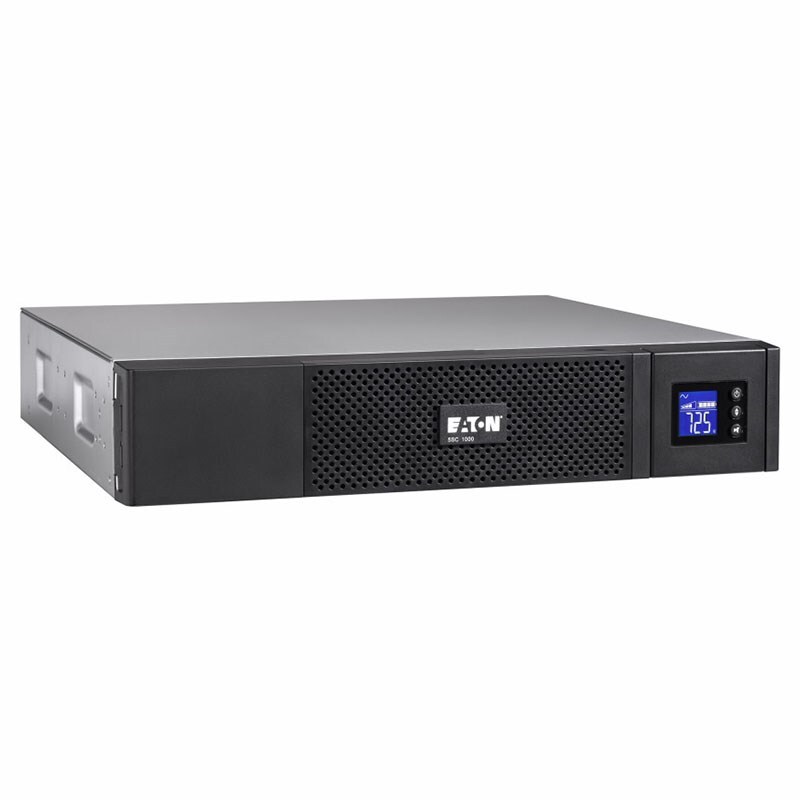

Eaton 5SC1500IR-AU 1500VA 1050W 2U rackmount UPS shown in Image 02

Product overview

1500VA / 1050W structured capacity

The product name and structured specification both identify a 1500VA / 1050W model.

Eight IEC C13 outputs

The supplied description and structured receptacle detail list eight IEC C13 outputs.

2U rackmount deployment

The structured physical fields list a 2U rackmount chassis measuring 86.2 x 440 x 405mm.

Source review: The plain-text description contains a conflicting power-rating line of 1000VA / 2400W, while the product name and structured load-capacity field state 1500VA / 1050W. Both source values are retained and require confirmation.

Frequently asked questions

What power rating is listed for the Eaton 5SC1500IR-AU?

The product name and structured field list 1500VA / 1050W; a conflicting description line lists 1000VA / 2400W.

How many output receptacles are listed?

The source lists eight IEC C13 receptacles.

What half-load runtime is listed?

The structured specification lists 13 minutes at half load.

What warranty is supplied?

The source lists a two-year Eaton manufacturer warranty.

(5SC1500IR-AU)

Features

Eaton 5SC1500IR-AU 1500VA/1050W 230V 2U Rackmount UPS

Power performance

Line-interactive topology
Pure sine wave
Structured rating: 1500VA / 1050W
Description conflict: 1000VA / 2400W
230V input

Connections and monitoring

1 x IEC C14 10A input
8 x IEC C13 10A outputs
RS-232 serial
USB HID
Communication-card slot
ROO / RPO terminals

Installation and runtime

2U rackmount
13-minute half-load runtime
86.2 x 440 x 405mm
Approximate weight: 17.80kg
40°C maximum operating temperature

Confirm the conflicting description power rating before publication or purchase.

Technical specifications

Eaton 5SC1500IR-AU 1500VA/1050W 230V 2U Rackmount UPS

Product details and source ratings
Brand	Eaton
Model / SKU	5SC1500IR-AU
Series	5SC
Product type	Line-interactive UPS
Waveform	Pure sine wave
Product-name rating	1500VA / 1050W
Structured load capacity	1.50kVA / 1.05kW
Conflicting description rating	1000VA / 2400W
Power and connections
Input voltage	230V AC
Output-voltage values	220V AC; 230V AC; 240V AC
Input-voltage range	184276V AC
Description input-frequency ranges	4555Hz (50Hz); 5564Hz (60Hz)
Structured output frequency	60Hz
Input connector	1 x IEC C14 10A
Output receptacles	8 x IEC C13 10A
Serial port	Yes
USB HID-compliant port	Yes
Communication-card slot	Stated in description
Terminals	ROO / RPO
Runtime and physical properties
Half-load runtime	13 minutes
Maximum operating temperature	40°C
Form factor	Rack mountable
Rack height	2U
Height	86.2mm
Width	440mm
Depth	405mm
Approximate weight	17.80kg
Applications listed
Application / usage	Server; network storage device; ATM; kiosk; ticket machine; network

SKU	5SC1500IR-AU
Barcode #	743172101938
Brand	EATON
Shipping Weight	19.6000kg
Shipping Width	0.540m
Shipping Height	0.230m
Shipping Length	0.570m

Warranty information

Eaton 5SC1500IR-AU 1500VA/1050W 230V 2U Rackmount UPS

2-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a two-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
