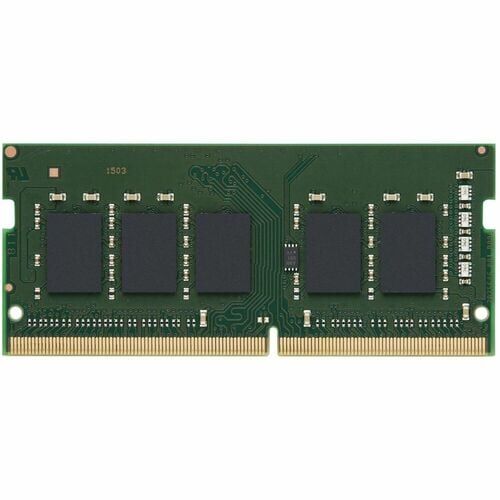

Kingston Server Premier RAM Module for Server - 16 GB (1 x 16GB) - DDR4-3200/PC4-25600 DDR4 SDRAM - 3200 MHz Single-rank Memory - CL22 - 1.20 V - ECC - Unbuffered - 260-pin - SODIMM - Lifetime Warranty

FEATURESKingston's KSM32SES8/16HC is a 2G x 72-bit (16GB)

DDR4-3200 CL22 SDRAM (Synchronous DRAM) w/ parity, 1Rx8,

ECC, memory module, based on nine 2G x 8-bit FBGA

components. The SPD is programmed to JEDEC standard latency

DDR4-3200 timing of 22-22-22 at 1.2V. Each 260-pin SODIMM

uses gold contact fingers. The electrical and mechanical

specifications are as follows:

FEATURES

• Power Supply: VDD = 1.2V
• VDDQ = 1.2V
• VPP = 2.5V
• VDDSPD = 2.20V to 3.60V
• Functionality and operations comply with the DDR4 SDRAM datasheet
• 16 internal banks
• Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
• the banks in the same or different bank group accesses are available
• Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Supports ECC error correction and detection
• On-Die Termination (ODT)
• Temperature sensor with integrated SPD
• This product is in compliance with the RoHS directive.
• Per DRAM Addressability is supported
• Internal Vref DQ level generation is available
• Write CRC is supported at all speed grades
• CA parity (Command/Address Parity) mode is supported
• RoHS Compliant and Halogen-Free
