ATEN SKU CL3108NX-ATA-AU

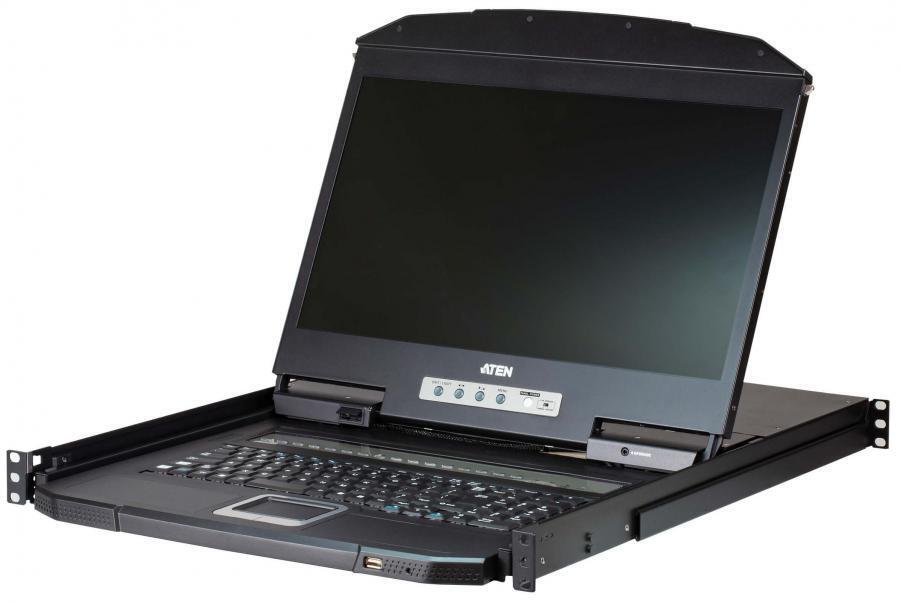

ATEN CL3108NX-ATA-AU 8-Port 18.5-inch LCD KVM Switch

The ATEN CL3108NX-ATA-AU combines an 18.5-inch LED-backlit widescreen LCD, keyboard and mouse control with an 8-port KVM switch in a short-depth, single-rail 1U housing.

The supplied record lists eight direct connections, cascading to a maximum of 128 computers, a 1366 x 768 panel and input video up to 1920 x 1200 at 60Hz.

8 direct KVM ports18.5-inch LCDUp to 128 computers2-year warrantyDeviceDeal authorised ATEN reseller

ATEN CL3108NX-ATA-AU 8-Port 18.5-inch LCD KVM Switch

Product overview

Eight-port control

Select any of eight direct SPHD KVM ports using the OSD, hotkeys or front-panel pushbuttons.

Cascade to 128 computers

The supplied source states that the CL3108 can cascade through two levels to control up to 128 computers.

Short-depth 1U design

The integrated console uses a single-rail housing and the source states a mounting-depth range of 42cm to 72cm.

Source review: The source lists a 1366 x 768 LCD panel and accepted input video up to 1920 x 1200 at 60Hz. These are the panel resolution and the maximum input signal respectively.

Frequently asked questions

How many computers connect directly to the CL3108NX-ATA-AU?

The supplied source lists eight direct computer connections.

How many computers can it control through cascading?

The source lists a maximum of 128 computers through two cascade levels.

What screen resolution is listed?

The LCD panel is listed at 1366 x 768, while input video is listed up to 1920 x 1200 at 60Hz.

What cables are included?

The supplied product name states that two 1.8m VGA USB KVM cables are included.

What warranty is supplied?

The source lists a two-year ATEN manufacturer warranty.

(CL3108NX-ATA-AU)

Features

ATEN CL3108NX-ATA-AU 8-Port 18.5-inch LCD KVM Switch

KVM control

8 direct computer connections
Maximum 128 computers via cascade
OSD, hotkey and pushbutton selection
PS/2 and USB keyboard/mouse emulation

Integrated console

18.5-inch LED-backlit widescreen LCD
1366 x 768 panel
Input video up to 1920 x 1200 @ 60Hz
External USB mouse port

Rack and included cables

1U single-rail housing
Source-stated 42cm to 72cm mounting-depth range
2 x 1.8m VGA USB KVM cables included
Metal and plastic housing

Confirm rack depth, cable requirements and the exact cascade design before installation.

Technical specifications

ATEN CL3108NX-ATA-AU 8-Port 18.5-inch LCD KVM Switch

Product details
Brand	ATEN
Model / SKU	CL3108NX-ATA-AU
Product type	8-port short-depth LCD KVM switch
Rail type	Single rail
Rack height	1U
Computer control
Direct connections	8
Maximum via cascade	128
Port selection	OSD; hotkey; pushbutton
KVM ports	8 x SPHD female (yellow)
Keyboard / mouse emulation	PS/2; USB
Scan interval	1255 seconds
Display and video
LCD module	18.5-inch LED-backlit widescreen
Panel resolution	1366 x 768 @ 60Hz
Input video	Up to 1920 x 1200 @ 60Hz; DDC2B
Connections and power
External mouse port	1 x USB Type-A female, front
Firmware upgrade	1 x 3.5mm audio jack female
Power input	1 x IEC 60320 C14
Maximum input rating	100240V AC; 5060Hz; 1A
Power consumption	AC 110V: 14.1W / 70BTU; AC 220V: 14.9W / 74BTU
Physical properties
Housing	Metal and plastic
Weight	10.50kg
Dimensions (L x W x H)	48.06 x 63.17 x 4.28cm
Body dimensions (L x W x H)	44.92 x 58.4 x 4.28cm

SKU	CL3108NX-ATA-AU
Barcode #	672792010705
Brand	Aten
Shipping Weight	0.7200kg

Warranty information

ATEN CL3108NX-ATA-AU 8-Port 18.5-inch LCD KVM Switch

2-Year ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
