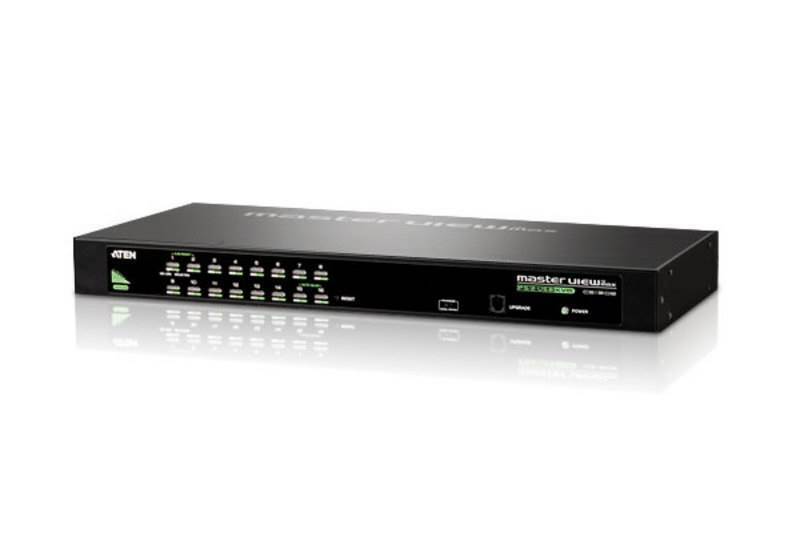

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.

Package Contents

1x CS1316 KVM Switch with Rack Mount Kit
1x Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x Power Adapter
1x Mounting Kit
1x User Instructions

One USB-PS/2 console controls 16 computers
Cascade up to 2 levels - control up to 256 computers
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Superior video quality - up to 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Auto Scan feature for monitoring user-selected computers
Hot pluggable - add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Firmware upgradeable
No software installation required
Designed for desktop or rack mount (19" system rack, 1U)

16-Port PS/2 - USB KVM Switch

Computer Connections
Direct	16
Maximum	256 (via Cascade)
Port Selection	OSD, Hotkey, Pushbutton

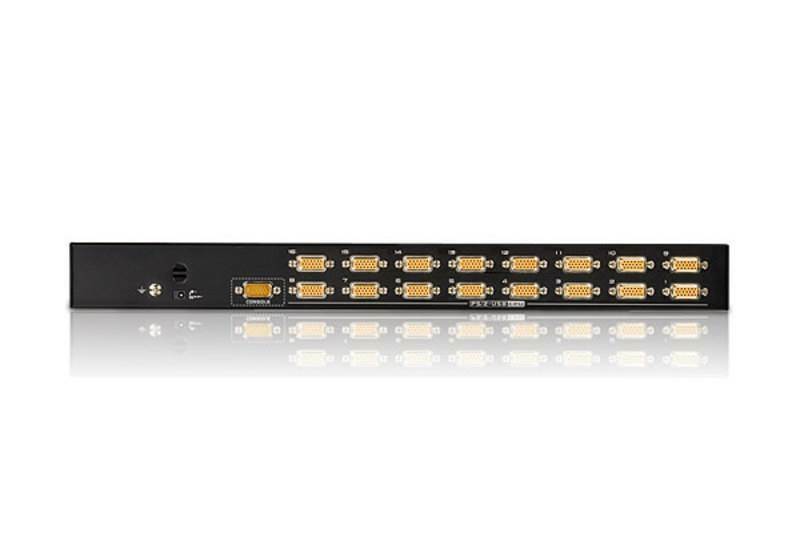

Connectors
Console Ports	1 x SPHD-18 Male (Yellow)
Firmware Upgrade	1 x RJ-11 Female (Black)
Power	1 x DC Jack
KVM Ports	16 x SPHD-15 Female (Yellow)

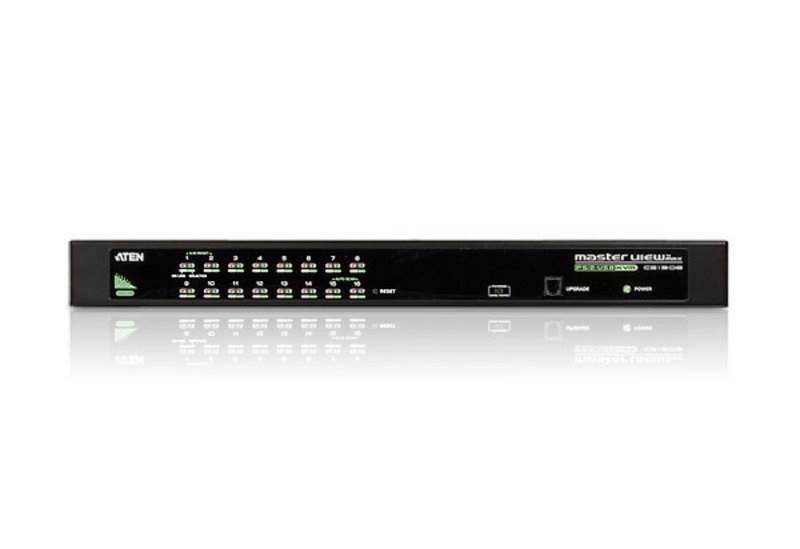

Switches
Ports	16 x Pushbutton
Firmware Upgrade	1 x Slide
LEDs
Online	16 (Orange)
Selected	16 (Green)
Power	1 (Dark Green)
Emulation
Keyboard / Mouse	PS/2, USB
Video	2048 x 1536; DDC2B
Scan Interval	1-255 Seconds
Power Consumption	DC5.3V:3.83W:26BTU
Environmental
Operating Temperature	0-50?C
Storage Temperature	-20-60?C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	2.83 kg ( 6.23 lb )
Dimensions (L x W x H)	43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Firmware

Description	Ver.	Release Date	File Name
Firmware Upgrade	v1.6.158	2018-09-03	cs1308_1316_v1.6.158.zip
Firmware Upgrade	v1.6.155	2017-12-08	cs1308_1316_v1.6.155.zip
Firmware Upgrade	v1.6.153	2017-03-28	cs1308_1316_v1.6.153.zip
Firmware Upgrade	v1.5.149	2016-12-27	cs1308_1316_v1.5.149.zip
Firmware Upgrade	v1.5.147	2016-12-02	cs1308_1316_v1.5.147.zip
Firmware Upgrade	v1.5.143	2015-05-25	cs1308_1316_v1.5.143.zip
Firmware Upgrade	v1.5.142	2015-04-02	cs1308_1316_v1.5.142.zip
Firmware Upgrade	v1.4.138	2014-10-08	cs1308_1316_v1.4.138.zip
Firmware Upgrade	v1.4.136	2014-05-06	cs1308_1316_v1.4.136.zip
Firmware Upgrade	v1.4.133	2013-09-12	cs1316_1308_v1.4.133.zip
Firmware Upgrade	v1.2.116	2011-07-07	cs1308_1316_v1.2.116.zip
Firmware Upgrade	v1.2.111	2009-11-26	cs1308_1316_v1.2.111.zip
Firmware Upgrade	v1.0.082	2009-08-25	cs1308_1316_v1.0.082.zip
Firmware Upgrade	v1.0.072	2009-04-29	cs1308_1316_v1.0.072.zip

(CS1316-AT-U)

Specifications

Compatible/Used for	System Control
Type	KVM Switch
Warranty	2 Years
Port Selection	OSD, Hotkey, Pushbutton
Power Consumption	DC 5.3 V; 6.6 W
Scan Interval	1-255 Seconds
Video	2048 x 1536; DDC2B

SKU	CS1316-AT-U
Barcode #	672792100369
Brand	ATEN
Shipping Weight	3.5000kg
Shipping Width	0.130m
Shipping Height	0.240m
Shipping Length	0.560m
Shipping Cubic	0.017472000m3
