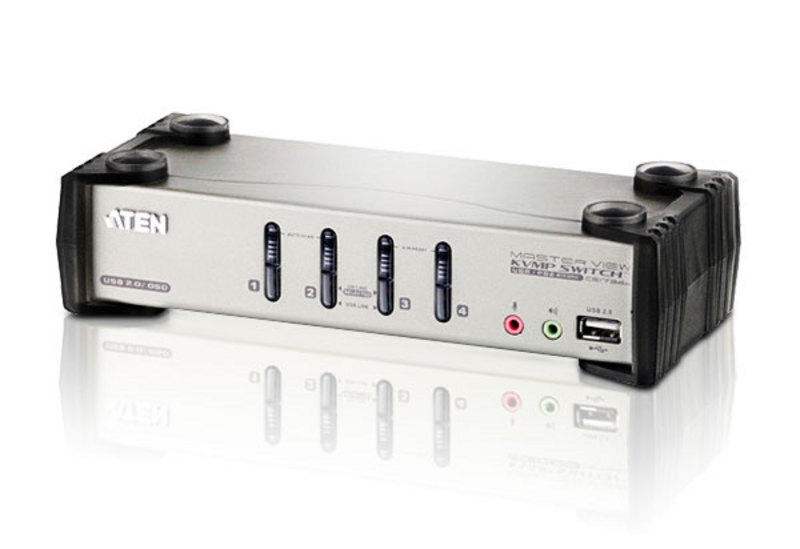

The ATEN CS1734B is a 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, the CS1734B allows users to access four computers from a single keyboard, monitor, and mouse console. The ATEN CS1734B KVM allows the user to use three methods to obtain instant access to any computer in your installation: Manual, Hotkey, OSD, and mouse.

ATEN CS1734B KVM Features:

• 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
• One console controls four computers and two additional USB devices
• 2-port USB 2.0 hub built in
• USB 2.0 compliant
• Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
• Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
• Console audio ports on front panel for easy access - ideal for IP phone users
• Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
• Independent switching of KVM, USB, and Audio focus
• Superior video quality; 2048 x 1536; DDC2B
• Supports widescreen resolutions
• Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse
• Multiplatform support - Windows , Mac, and Sun
• Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
• Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Complete keyboard emulation for error-free booting
• Sun/Mac keyboard support and emulation*
• Auto Scan Mode for monitoring all computers
• LED Display for easy status monitoring
• Easy installation no software required
• Firmware upgradeable

1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
