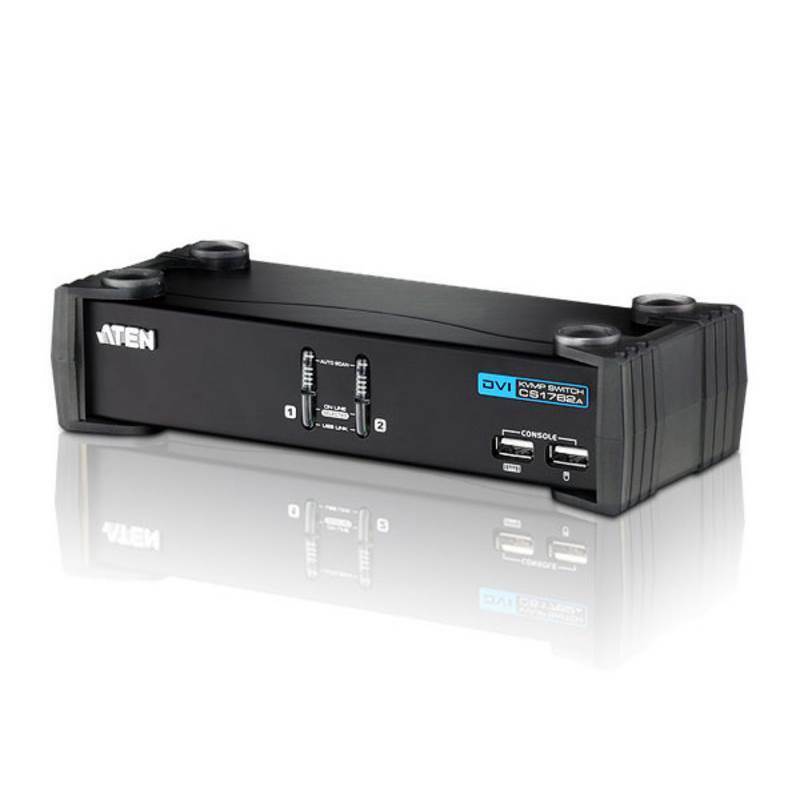

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.

Package Contents

1x CS1762A USB 2.0 DVI KVMP™ Switch
2x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x Power Adapter
1x User Instructions

One USB console controls two DVI computers and two additional USB 2.0 devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification

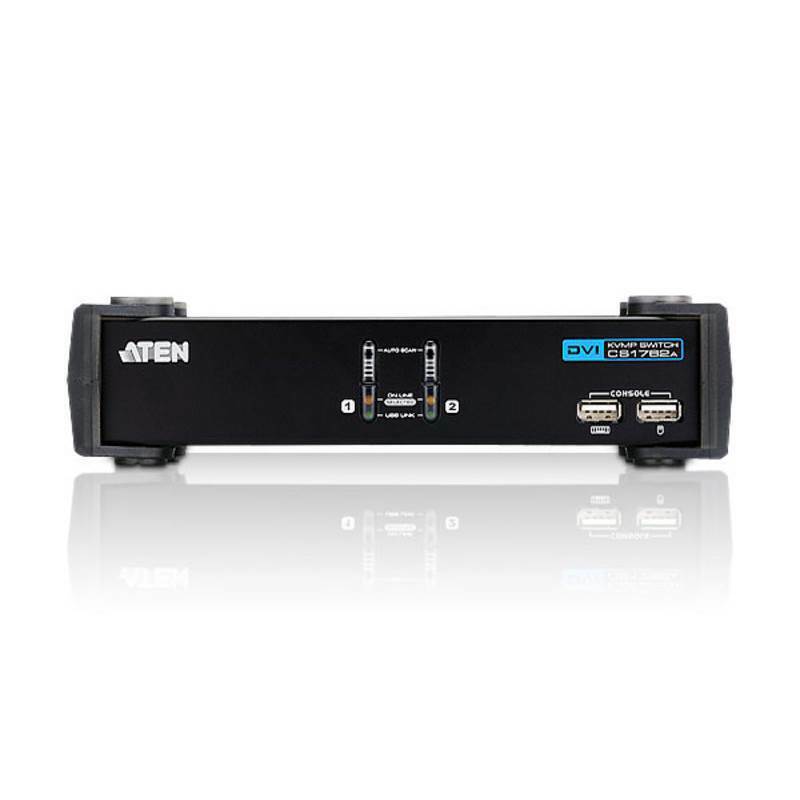

Computer selection via front panel pushbuttons, hotkeys, and mouse
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support – Windows, Linux, Mac, and Sun
Supports widescreen resolutions
Superior video quality – 1920 x 1200
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
HDCP compatible
Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable

* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboards only work with their own computer

USB 2.0 DVI KVMP™ Switch

Computer Connections	2
Port Selection	Hotkey, Pushbutton, Mouse
Connectors
Console Ports	2 x USB Type A Female 1 x DVI-I Female (White) 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)

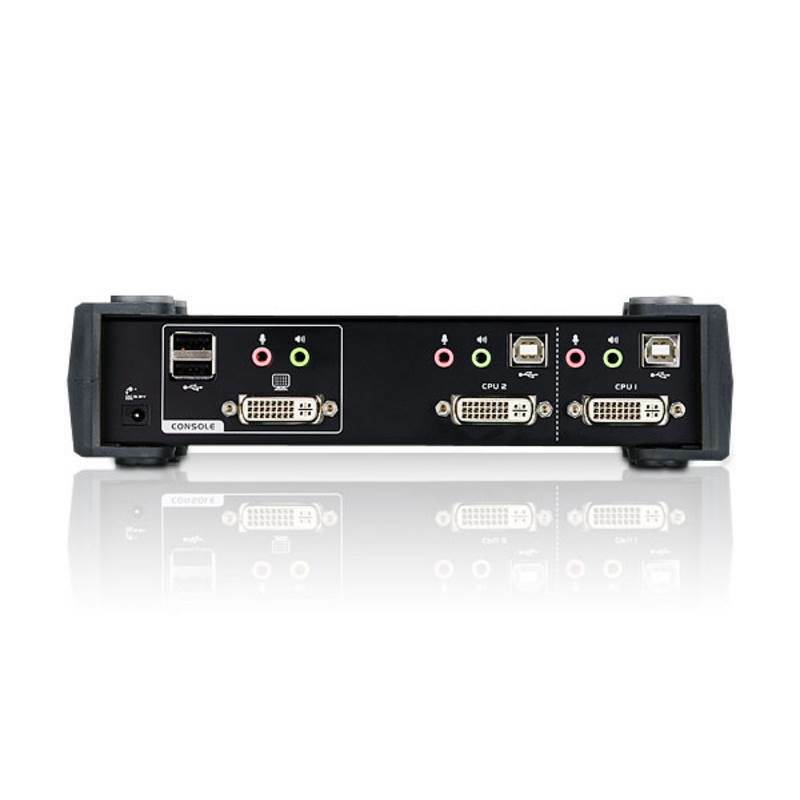

KVM Ports	2 x USB Type B Female 2 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (rear panel)
Switches
Selected	2 x Pushbutton
LEDs
USB Link	2 (Green)
On Line /Selected	2 (Orange)
Emulation
Keyboard / Mouse	USB
Video	1920 x 1200 @ 60Hz
Scan Interval	1–99 seconds (default: 5 sec.)
Power Consumption	DC5.3V:3.78W:43BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.73 kg ( 1.61 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Firmware

Description	Ver.	Release Date	File Name
Firmware Upgrade	v1.2.115	2018-04-02	cs1762a_v1.2.115.zip
Firmware Upgrade	v1.2.114	2016-07-25	cs1762a_v1.2.114.zip
Firmware Upgrade	v1.1.112	2015-12-17	cs1762a_v1.1.112.zip
Firmware Upgrade	v1.1.110	2013-11-28	cs1762a_v1.1.110.zip
Firmware Upgrade	v1.1.109	2012-09-20	cs1762a_v1.1.109.zip
Firmware Upgrade	v1.1.106	2010-07-08	cs1762a_v1.1.106.zip

We are here to help! Please visit ATEN eService for technical assistance.

(CS1762A-AT-U)

Computer Connections	2
Port Selection	Hotkey, Pushbutton, Mouse
Connectors
Console Ports	2 x USB Type A Female 1 x DVI-I Female (White) 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	2 x USB Type B Female 2 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (rear panel)
Switches
Selected	2 x Pushbutton
LEDs
USB Link	2 (Green)
On Line /Selected	2 (Orange)
Emulation
Keyboard / Mouse	USB
Video	1920 x 1200 @ 60Hz
Scan Interval	1–99 seconds (default: 5 sec.)
Power Consumption	DC5.3V:3.78W:43BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.73 kg ( 1.61 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	CS1762A-AT-U
Barcode #	672792002199
Brand	ATEN
Shipping Weight	2.2000kg
Shipping Width	0.190m
Shipping Height	0.100m
Shipping Length	0.300m
Shipping Cubic	0.005700000m3

Manufacturer Warranty: 3 Years Limited Warranty
