• One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
• KVM console supports a digital (DVI-D) or an analog (VGA) video output
• Computer ports support digital (DVI) and analog (VGA) video inputs* – mixed operation possible
• Cascadable to three levels – control up to 512 computers
• Multiview mode – stack up to four CS1768 units and display video from up to four monitors (dual view / triple view / quad view)
• Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
• OSD Backup/Restore function – enables the administrator to back up the switch´s configuration and user profile information
• 2-port USB 2.0 hub built in
• Fully compliant with the USB 2.0 specification
• Two-level (Administrator/User) password authorization for enhanced security protection
• Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
• Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
• Console audio ports on front panel for easy access
• Multiplatform support – Windows, Linux, Mac, Sun
• Supports widescreen resolutions
• Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B
• Independent switching of KVM and USB focus
• DVI digital and analog monitor support – fully compliant with the DVI specifications
• HDCP compatible
• Video DynaSync™  – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Chinese, and Spanish
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation**
• Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional
• Auto Scan Mode for monitoring all computers
• Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously.
• Firmware upgradable

  Note:
  * A VGA input requires a VGA to DVI adapter or a VGA to DVI KVM cable(2L-7DX2U/2L-7DX3U). This KVM cable is sold separately
  ** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers

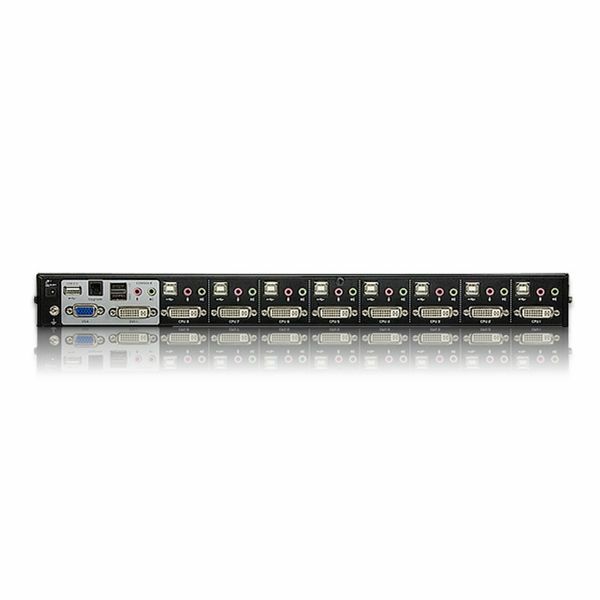

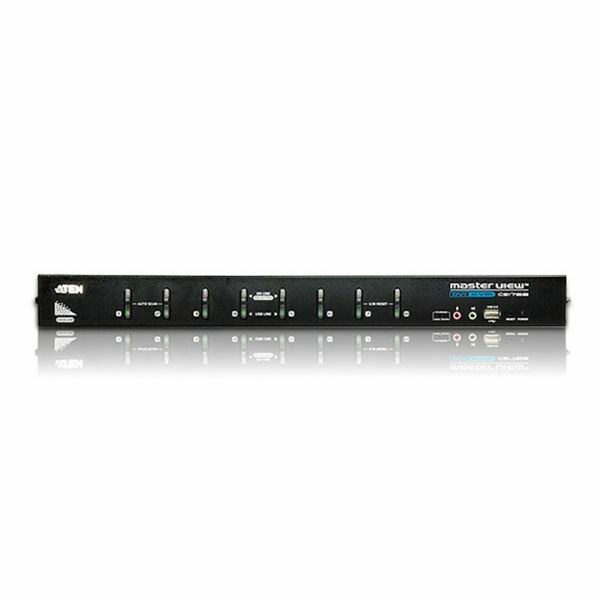

8-Port USB DVI KVM Switch
