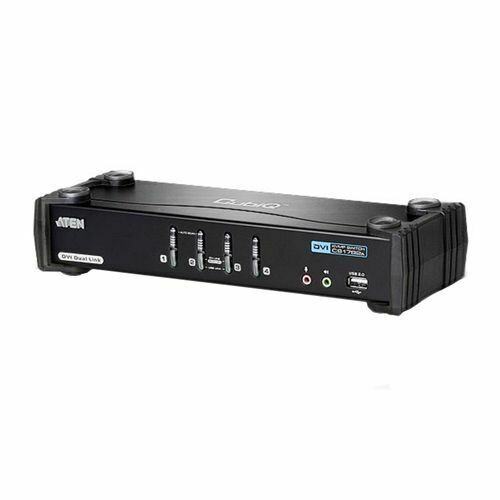

The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

Package Contents

1x CS1784A USB DVI Dual Link KVMP™ Switch
4x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft)
1x Power Adapter
1x User Instructions

4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio

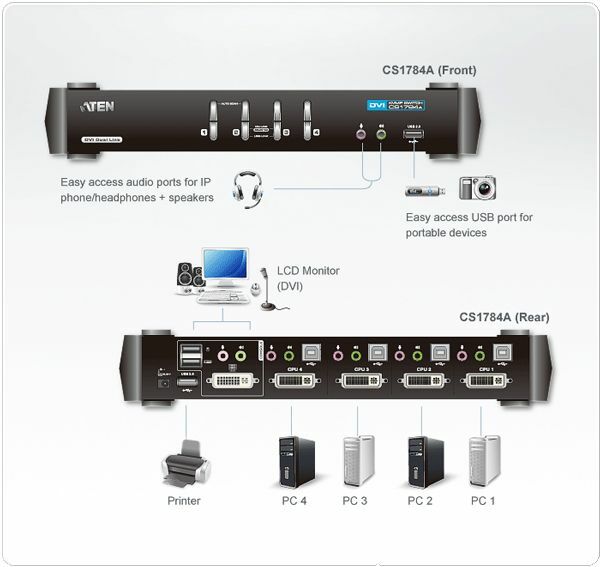

One USB console controls four computers and two additional USB devices
2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
Full bass response for high quality 2.1 channel surround sound systems
Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
Multiplatform support – Windows, Linux, Mac, and Sun*
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
HDCP compatible
Support widescreen resolutions
Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable

* PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own

4-Port USB DVI Dual Link KVMP™ Switch

Computer Connections	4
Port Selection	Hotkey, Pushbutton, Mouse
Connectors
Console Ports	1 x DVI-I Female (White) 2 x USB Type A Female (rear panel) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel) 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel)

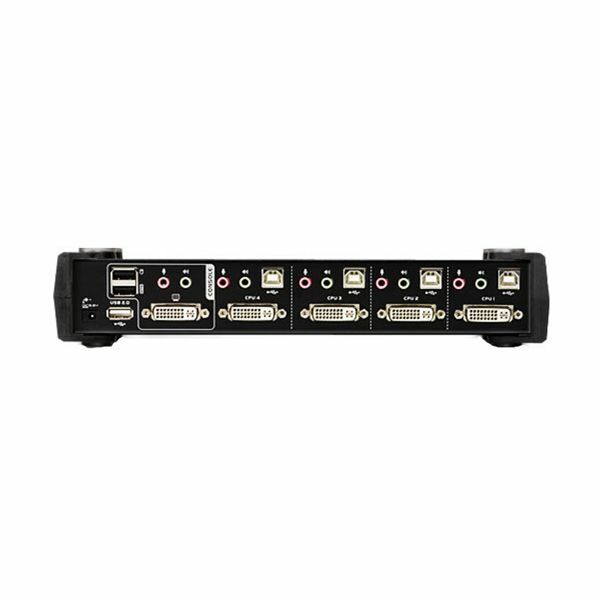

KVM Ports	4 x DVI-I Female (White) 4 x USB Type B Female 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (1 x front panel, 1 x rear panel)
Switches
Power Selected	4 x Pushbutton
LEDs
USB Link	4 (Green)
On Line /Selected	4 (Orange)
Emulation
Keyboard / Mouse	USB
Video	DVI Dual Link: 2560 x 1600 @ 60Hz; DVI Single Link: 1920 x 1200 @ 60Hz
Scan Interval	1–99 seconds (default: 5 secs.)
Power Consumption	DC5.3V:5.91W:53BTU
Environmental
Operating Temperature	0 -50°C
Storage Temperature	-20-60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.93 kg ( 2.05 lb )
Dimensions (L x W x H)	27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Firmware

Description	Ver.	Release Date	File Name
Firmware Upgrade	V1.1.107	2018-04-02	cs1782a_1784a_v1.1.107.zip
Firmware Upgrade	v1.1.106	2017-12-08	cs1782a_1784a_v1.1.106.zip
Firmware Upgrade	v1.1.105	2016-08-02	cs1782a_1784a_v1.1.105.zip
Firmware Upgrade	v1.1.104	2015-12-17	cs1782a_1784a_v1.1.104.zip
Firmware Upgrade	v1.1.102	2014-08-27	cs1782a_1784a_v1.1.102.zip
Firmware Upgrade	v1.0.077	2013-11-28	cs1782a_1784a_v1.0.077.zip
Firmware Upgrade	v1.0.076	2012-08-16	cs1782a_1784a_v1.0.076.zip
Firmware Upgrade	v1.0.074	2010-12-21	cs1782a_1784a_v1.0.074.zip

(CS1784A-AT-U)

Computer Connections	4
Port Selection	Hotkey, Pushbutton, Mouse
Connectors
Console Ports	1 x DVI-I Female (White) 2 x USB Type A Female (rear panel) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel) 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel)
KVM Ports	4 x DVI-I Female (White) 4 x USB Type B Female 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (1 x front panel, 1 x rear panel)
Switches
Power Selected	4 x Pushbutton
LEDs
USB Link	4 (Green)
On Line /Selected	4 (Orange)
Emulation
Keyboard / Mouse	USB
Video	DVI Dual Link: 2560 x 1600 @ 60Hz; DVI Single Link: 1920 x 1200 @ 60Hz
Scan Interval	1–99 seconds (default: 5 secs.)
Power Consumption	DC5.3V:5.91W:53BTU
Environmental
Operating Temperature	0 -50°C
Storage Temperature	-20-60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.93 kg ( 2.05 lb )
Dimensions (L x W x H)	27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	CS1784A-AT-U
Barcode #	672792002403
Brand	ATEN
Shipping Weight	2.4500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3

Manufacturer Warranty: 3 Years Limited Warranty
