StarTech MSA Compliant SFP Transceiver Module - 100BASE-BX SFP100BBXDST
Model # SFP100BBXDST
-
SKU: SFP100BBXDST
- Pick Up Available
- Australian Warranty
- Checkout Securely

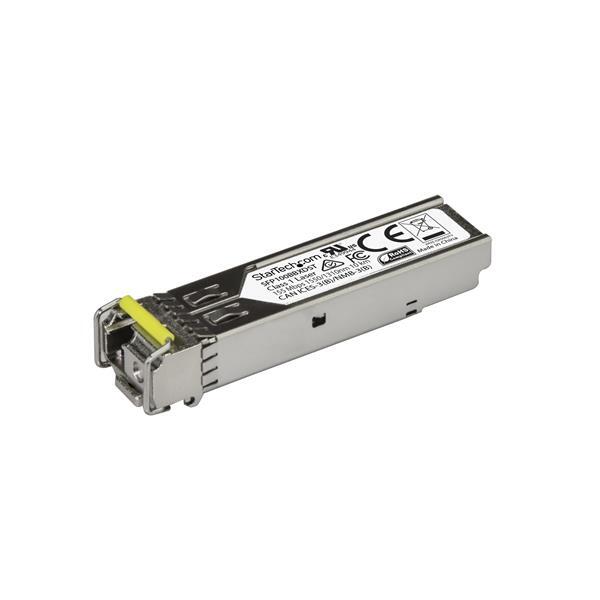

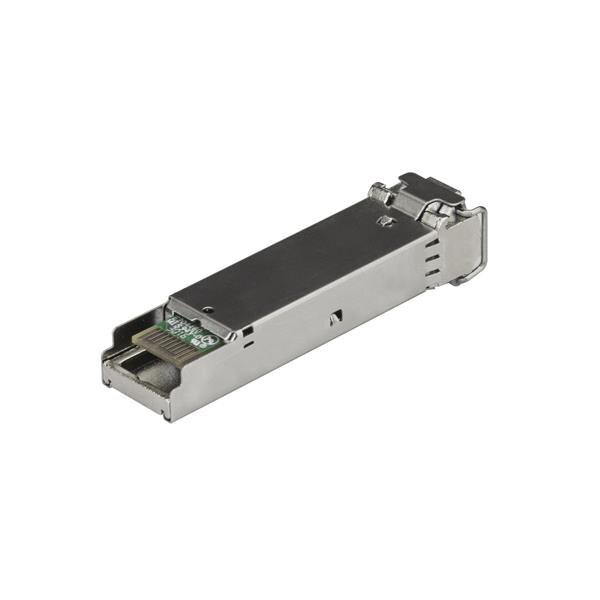

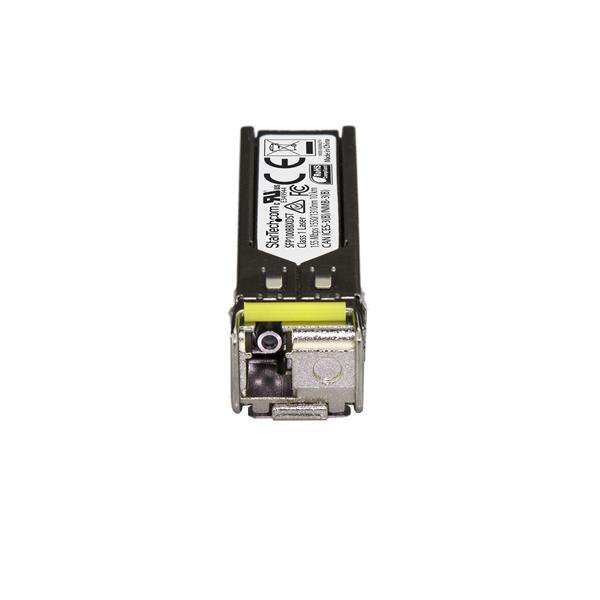

The SFP100BBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXUST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:- Wavelength: 1550nmTx/1310nmRx
- Maximum Data Transfer Rate: 155 Mbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- Power Consumption: Less than 1 Watt
- DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
(SFP100BBXDST)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Compatible Brand | MSA Compliant | |
| Industry Standards | IEEE 802.3u 100BASE-BX | |
| WDM | Yes | |
| Performance | ||
| Compatible Networks | 100 Mbps | |
| DDM | Yes | |
| Fiber Operating Mode | Half/Full-Duplex | |
| Max Transfer Distance | 10 km (6.2 mi) | |
| Maximum Data Transfer Rate | 155 Mbps | |
| Type | Single Mode | |
| Wavelength | 1550nmTx/1310nmRx | |
| Connector(s) | ||
| Local Unit Connectors | 1 - Fiber Optic LC Duplex Female | |
| Special Notes / Requirements | ||
| Note | For use in 100 Mbps fiber networking equipment and media converters | |
| System and Cable Requirements | MSA compliant SFP port | |
| Power | ||
| Power Consumption (In Watts) | < 1 W | |
| Environmental | ||
| Humidity | 5~95% RH | |
| Operating Temperature | 0¡C to 70¡C (32¡F to 158¡F) | |
| Storage Temperature | -40¡C to 85¡C (-40¡F to 185¡F) | |
| Physical Characteristics | ||
| Color | Silver | |
| Enclosure Type | Aluminum | |
| Product Height | 0.4 in [1.1 cm] | |
| Product Length | 2.4 in [60 mm] | |
| Product Width | 0.6 in [16 mm] | |
| Weight of Product | 0.6 oz [18 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [30 mm] | |
| Package Length | 4.6 in [11.7 cm] | |
| Package Width | 3.6 in [92 mm] | |
| Shipping (Package) Weight | 1.7 oz [47 g] | |
| What's in the Box | ||
| Included in Package | 1 - SFP transceiver | |
| SKU | SFP100BBXDST |
| Barcode # | 65030873529 |
| Brand | Startech |
| Shipping Weight | 0.5000kg |
