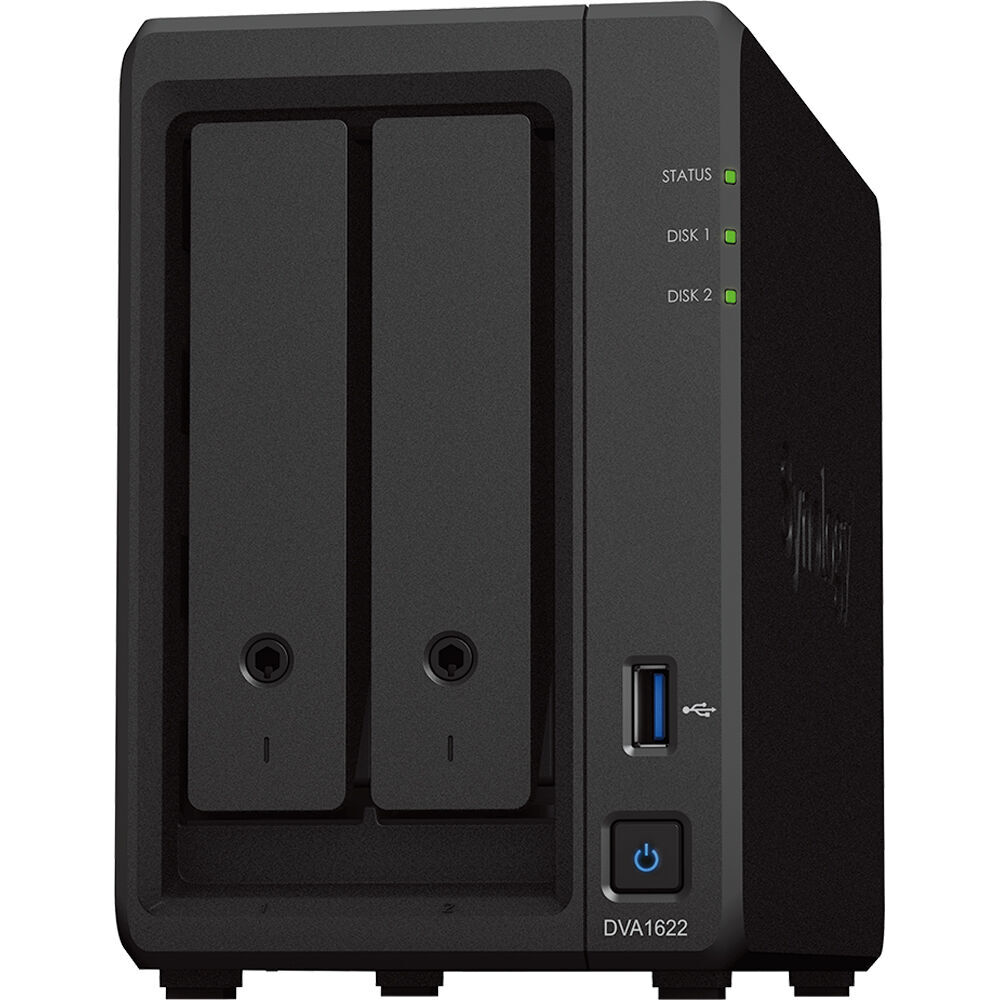

Network Video Recorder

DVA1622

Name: Synology Network Video Recorder DVA1622 , 2 Bay, utpo 16 Cameras, 8 Licenses , 3 Year Warranty
Brand: SYNOLOGY
SKU: DVA1622
Price: 1483 AUD
Availability: InStock

Enterprise-grade network video recorder storage solution

DVA1622 is only capable of recognizing license plates on vehicles that are stationary.

Uncompromising performance

Throughput

1x 1GbE LAN ports

Scalability

2 drive bays

CPU

Intel Celeron J4125 @ Quad Core 2.0 (base) / 2.7 (burst) GHz

Memory

6 GB DDR4 non-ECC

Smarter surveillance

Combine the comprehensive video management features inSynology Surveillance Stationwith advanced analytics to speed up incident response and collect better business intelligence.

Flexible monitoring capabilities

Leverage highly configurable options and automation features to act quickly when potentially dangerous situations arise.

Comprehensive access options

Enjoy a uniform monitoring experience wherever you are and adapt your surveillance system to your needs — not the other way around.

Performance backed by Synology drives

Leverage high sustained performance and reliability with enterprise-grade drives with built-in data protection designed for Synology systems.

Leverage your Synology system as a network video recorder

Units ideal to secure premises served by up to 40 IP cameras.

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

AI-powered insights

Bolster the security of your premises while increasing efficiency.

Versatile monitoring

Watch over your deployment in the way that works best for you.

Easy deployment

Quickly set up your surveillance system with minimal effort.

Map-supported alerts

Display real-time previews of detected events on interactive multi-floor and multi-site maps supported by Google Maps and OpenStreetMap.Learn more

Automation rules

Reduce workloads by triggering responses to specific situations, such as activating recording when a microswitch detects a door is opened.Learn more

Notifications

Specify which events should trigger a notification, and whether to receive alerts by SMS, email, or push notification on mobile devices.

(DVA1622)

Technical Specifications

Complete hardware and software specifications

CPU

CPU Model Intel Celeron J4125

CPU Architecture 64-bit

CPU Frequency Quad Core 2.0 (base) / 2.7 (burst) GHz

Hardware Encryption Engine (AES-NI) Yes

Video Outputs

Video Outputs HDMI X 1

Supported Video Resolution 1080p 60Hz

Memory

System Memory 6 GB DDR4 non-ECC

Memory Module Pre-installed 6 GB (2 GB + 4 GB)

Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays 2

Compatible Drive Type*(See all supported drives) 3.5" SATA HDD 2.5" SATA SSD

Hot Swappable Drive* Yes

Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port 1

USB 3.0 Port 2

Appearance

Size (Height x Width x Depth) 166 mm x 106 mm x 223 mm

Weight 1.51 kg

Others

Wake on LAN / WAN Yes

System Fan 92 mm x 92 mm x 1 pcs

Fan Speed Mode Cool Mode Quiet Mode Full-Speed Mode

Power Recovery Yes

Noise Level* 18.4 dB(A)

Scheduled Power On / Off Yes

Power Supply Unit / Adapter 60 W

AC Input Power Voltage 100 V to 240 V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption 19.93 W (Access) 4.02 W (HDD Hibernation)

British Thermal Unit 67.96 BTU/hr (Access) 13.71 BTU/hr (HDD Hibernation)

Notes For more information on how power consumption is measured, refer to this article . Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Certification

Certification FCC CE BSMI VCCI RCM UKCA EAC KC

Warranty

Warranty 3-year hardware warranty, extendable to 5 years with EW201

Notes Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 1 Quick Installation Guide X 1

Optional Accessories

Optional Accessories Enterprise Series 3.5" SATA HDD: HAT5300 Series Surveillance Device License Pack

Video Analysis

Deep Video Analytics Features People and vehicle detection (with license plate recognition) People counting Vehicle counting Intrusion detection Face recognition

Deep Video Analytics Tasks People and vehicle detection (with license plate recognition): up to 2 tasks People counting: up to 2 tasks Vehicle counting: up to 2 tasks Intrusion detection (detecting specific objects): up to 2 tasks Face recognition: up to 1 task

Maximum Number of Registrations Supported by Face Database 10,000

Notes DVA1622 is only capable of recognizing license plates on vehicles that are stationary.

General Specifications

Default Licenses 8 (Additional cameras require purchase of licenses)

Suggested Maximum IP Cameras and Total FPS (H.264) 720p: 16 channels, 480 FPS 1080p: 16 channels, 285 FPS 3M: 16 channels, 160 FPS 5M: 12 channels, 120 FPS 4K: 8 channels, 80 FPS

Suggested Maximum IP Cameras and Total FPS (H.265) 720p: 16 channels, 480 FPS 1080p: 16 channels, 350 FPS 3M: 16 channels, 190 FPS 5M: 12 channels, 120 FPS 4K: 8 channels, 80 FPS

Video Codecs H.264 H.264+ H.265 H.265+ MJPEG MPEG-4 MxPEG (not supported by Deep Video Analytics tasks)

Audio Codecs AMR G711 G726 PCM

Notes Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present. Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.

Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers Google Chrome

Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

File System

Internal Drives Btrfs ext4

External Drives Btrfs ext4 ext3 FAT NTFS HFS+ exFAT

Storage Management

Maximum Single Volume Size 108 TB

Maximum Internal Volume Number 64

Supported RAID Type Synology Hybrid RAID Basic JBOD RAID 0 RAID 1

RAID Migration Basic to RAID 1

Volume Expansion with Larger HDDs Synology Hybrid RAID RAID 1

Volume Expansion by Adding a HDD Synology Hybrid RAID

Notes Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.

File Services

File Protocol SMB/AFP/NFS/FTP/WebDAV

Account & Shared Folder

Maximum Local User Accounts 2,048

Maximum Local Groups 256

Maximum Shared Folder 512

VPN Server

Maximum Connections 40

SKU	DVA1622
Barcode #	846504009749
Brand	SYNOLOGY
Shipping Weight	1.0000kg
Shipping Width	0.300m
Shipping Height	0.500m
Shipping Length	0.310m
