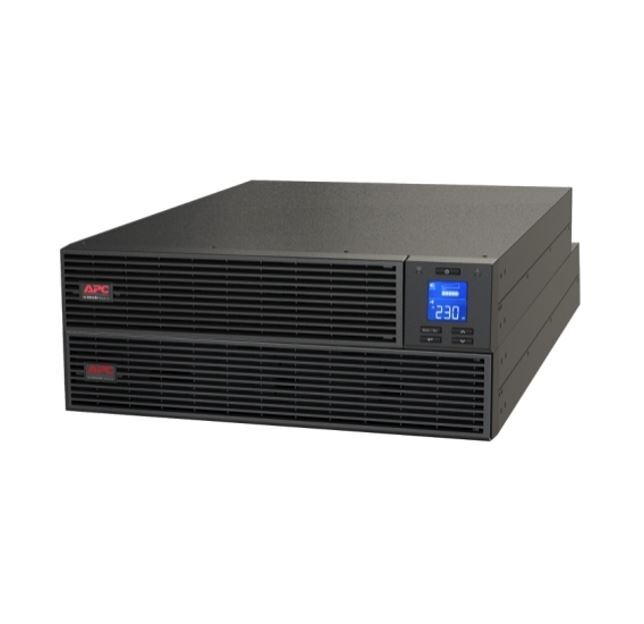

APC Easy UPS Double Conversion Online UPS - 2 kVA/1.60 kW - 4U Tower - 4 Hour Recharge - 22.30 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC,
Model# SRV2KRILRK
-
SKU: SRV2KRILRK
- Pick Up Available
- Australian Warranty
- Checkout Securely
APC Easy UPS On-Line, 2000VA/1600W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit
SKU: SRV2KRILRK | Brand: APC Brand
Key Features
- 2000VA/1600W double-conversion on-line pure sine wave 4U rackmount UPS
- High operating efficiency in energy-saving ECO mode

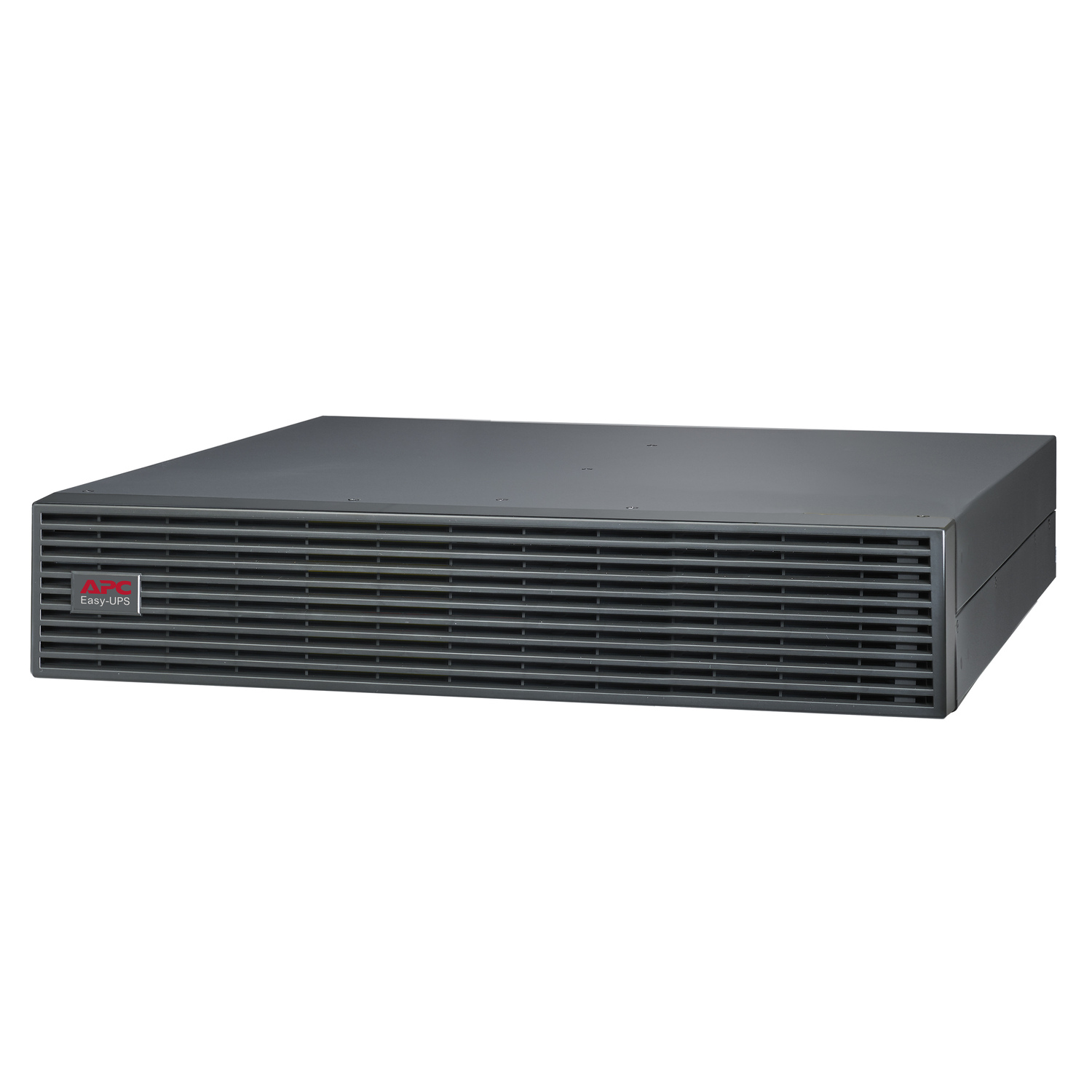

- Add up to 4 external battery packs (SRV72RLBP-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Description
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity.
This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.
The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets.
The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management.
The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.
The UPS and the built-in lead-acid battery has a 2-year warranty.
Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Product Images
Downloads & Documents
Compatible Products & Accessories
Communication Options
Racks
ER6482
APC Easy Rack, 24U, Black, With Roof, Castors, Feet, 4 Brack...
ER6222
APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...
ER6212
APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...
ER6202
APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...
ER6282
APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...
ER8222
APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...
ER8212
APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...
ER8202
APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...
ER8282
APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...
ER6822
APC Easy Rack, 48U, Black, With Roof, Castors, Feet, 4 Brack...
ER6812
APC Easy Rack, 48U, Black, With Roof, Castors, Feet, 4 Brack...
ER6802
APC Easy Rack, 48U, Black, With Roof, Castors, Feet, 4 Brack...
Subscriptions
FWENMC1P-ST1Y-DIGI
Subscription, Network Management Cards, 1 year, Secure NMC S...
FWENMC1P-ST2Y-DIGI
Subscription, Network Management Cards, 2 year, Secure NMC S...
FWENMC1P-ST3Y-DIGI
Subscription, Network Management Cards, 3 year, Secure NMC S...
FWENMC1P-ST4Y-DIGI
Subscription, Network Management Cards, 4 year, Secure NMC S...
FWENMC1P-ST5Y-DIGI
Subscription, Network Management Cards, 5 year, Secure NMC S...
FWENMC1P-ST6Y-DIGI
Subscription, Network Management Cards, 6 year, Secure NMC S...
(SRV2KRILRK)
Specifications - SRV2KRILRK
Overview
| Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
| Lead time | Usually in Stock |
Main
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage | 220 V 240 V |
| Input Connection Type | IEC 60320 C14 |
| Input voltage limits | 110...285 V half load 160...280 V full load |
| Network frequency | 40...70 Hz auto sensing |
| Output voltage | 220 V 240 V |
| Rated power in W | 1600 W |
| rated power in VA | 2000 VA |
| Output connection type | 4 IEC 60320 C13 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | 3 % |
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1600 W |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Half load runtime | 00:12:00 800 W |
| Efficiency | 88 % (full load) |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
Complementary
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery type | Lead-acid external included |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port USB port Available expansion slot |
| Surge energy rate | 600 J |
| Number of rack unit | 4U |
| Number of cables | 1 |
| Colour | Black (RAL 7010) |
| Height | 172 mm |
| Width | 437 mm |
| Depth | 632 mm |
| Net weight | 51.7 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with included kit |
| USB compatible | No |
| Mounting position | Horizontal |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Easy UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
Environment
| Product certifications | CE UKCA EAC TISI |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15000 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 745 Btu/h |
| Operating altitude | 0...3000 m |
Batteries & Runtime
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 72 V |
| Extended runtime | 1 |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 5.5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 350 W rated |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 3 |
| Package 1 Height | 48 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 70 cm |
| Package 1 Weight | 66.5 kg |
Contractual warranty
| Warranty (in months) | 24 |
| SKU | SRV2KRILRK |
| Brand | APC |
| Shipping Weight | 50.0000kg |
Manufacturer Warranty:3 Years Manufacturer Warranty
