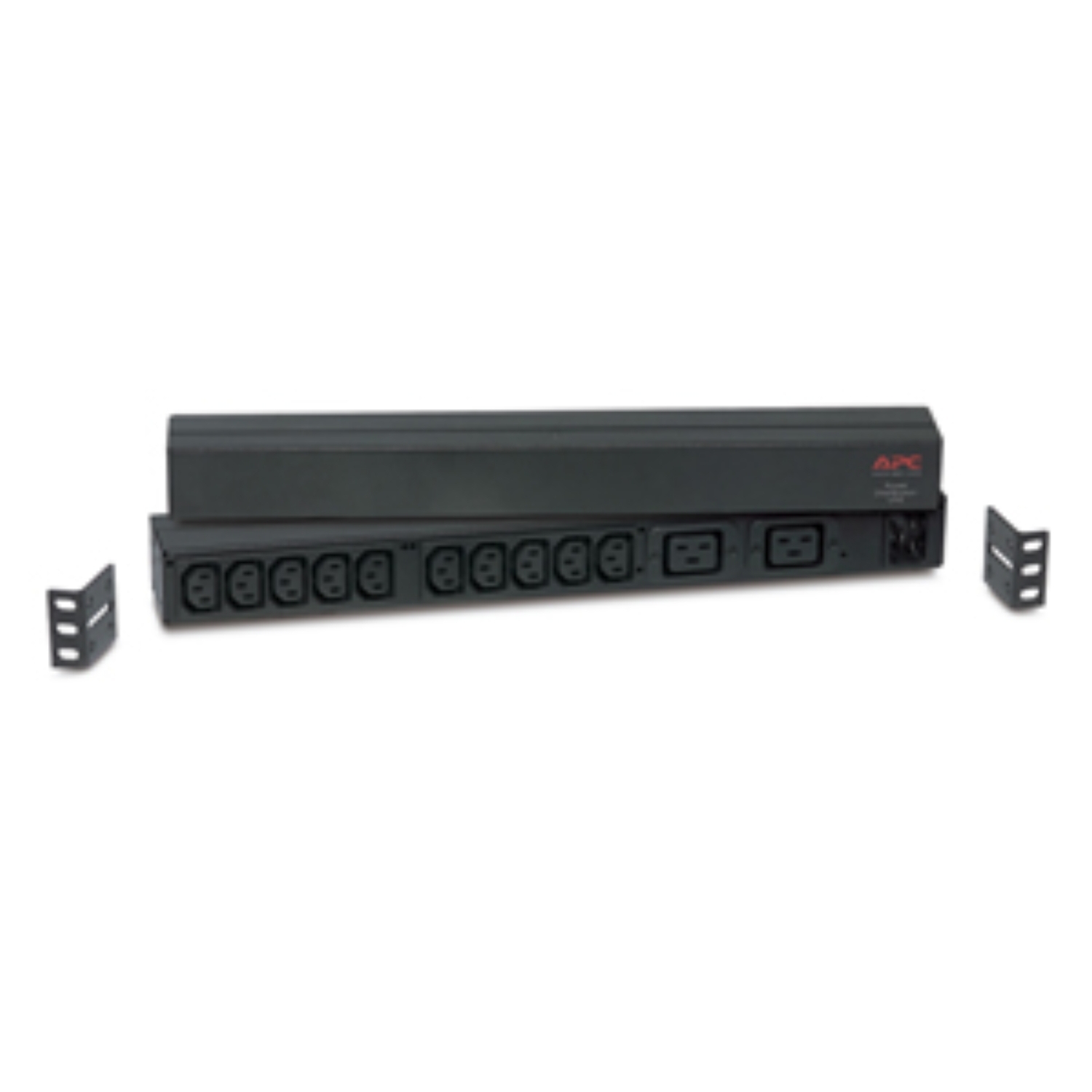

APC Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19
Model # AP9559
-
SKU: AP9559
- Pick Up Available
- Australian Warranty
- Checkout Securely
Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19
SKU: AP9559 | Brand: APC Brand
Key Features
- Features 10 C13 and 2 C19 outlets for comprehensive power distribution
- Horizontal mounting to fit various rack configurations
- Supports up to 16A, 208 and 230V power distribution
- Includes toolless mounting kit for quick setup
Description
It is a basic rack PDU with a 1U horizontal mounting design.
It supports a maximum input current of 16A and operates at 208 and 230V.
The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment.
It includes an 8.2-foot power cord with an IEC 60320 C20 plug.
The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.
Product Images
Downloads & Documents
Compatible Products & Accessories
× ![]()
(AP9559)
Specifications - AP9559
Overview
| Lead time | Usually in Stock |
Main
| Colour | Black |
| Product or component type | PDU |
| PDU type | Basic |
| Cord length | 2.49 m |
| Number of cables | 1 |
| Provided equipment | User manual Rack mounting brackets |
Complementary
| Input Voltage | 120 V 208 V 230 V |
| Height | 44 mm |
| Width | 447 mm |
| Output Voltage | 120 V 208 V 230 V |
| Depth | 57 mm |
| Net weight | 0.98 kg |
| Mounting location | Front Rear |
| Mounting preference | No preference |
| Input Plug Type | IEC 60320 C20 |
| Mounting mode | Rack-mounted |
| Rack units | 1U |
| Mounting position | Horizontal |
| permissible voltage | 90…250 V |
| Max line current | 16 A |
| Input current limits | 16 A |
| Load capacity | 3680 VA |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 10 IEC 60320 C13 2 IEC 60320 C19 |
Environment
| Product certifications | cUL listed CE UL listed VDE Victoria |
| Ambient air temperature for operation | 0…45 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.5 cm |
| Package 1 Width | 48.3 cm |
| Package 1 Length | 15.2 cm |
| Package 1 Weight | 2.355 kg |
Contractual warranty
| Warranty (in months) | 24 |
| SKU | AP9559 |
| Barcode # | 731304123521 |
| Brand | APC |
| Shipping Weight | 2.3400kg |
