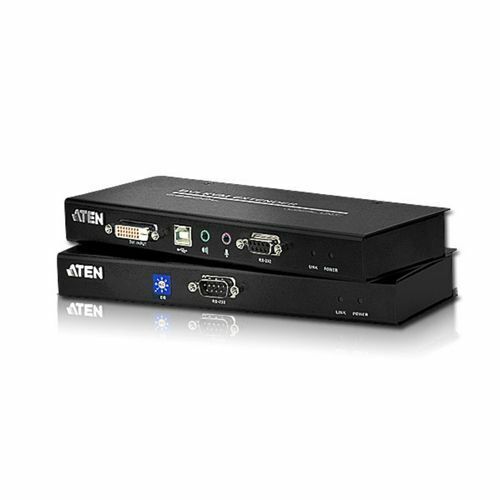

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.

The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1200 video resolution *

* The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals.

Package Contents

1x CE600L DVI KVM Extender (Local Unit)
1x CE600R DVI KVM Extender (Remote Unit)
1x Custom KVM Cable (DVI-D Single Link, USB, Audio; 1.8m/6ft)
2x Power Adapters
1x Mounting Kit
1x User Instructions

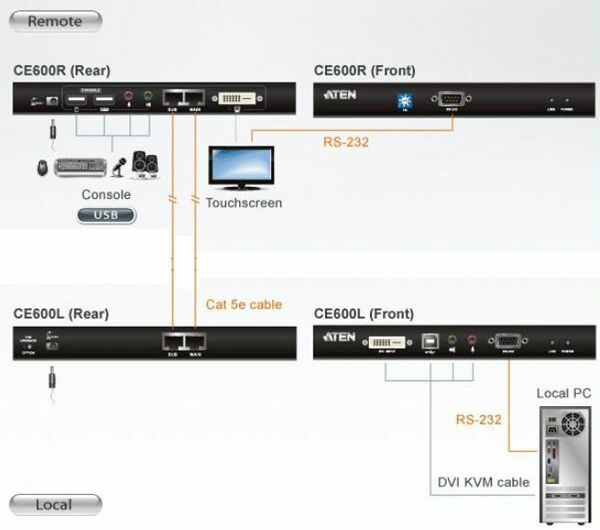

Local and Remote Units connect at distances up to 60 m using Cat 5e cable
Allows access to a computer or KVM installation from a remote console (up to 60 m)
Features ATEN technology that allows A/V transmission over one cat 5e cable
The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
Manual compensation control to adjust signal strength in order to compensate for distance
RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
Audio Enabled – supports stereo speakers and microphone
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Supports Wide Screen formats
Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
Hot pluggable
Rack mountable
Easy to install – no software required – connecting cables to the devices is all it takes
Firmware upgrade

DVI KVM Extender

Function	CE600L	CE600R
Connectors
Console Ports	N/A	2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports	1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x USB Type B Female (White)	N/A
RS-232	1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
Power	1 x DC Jack	1 x DC Jack
Sub / Main	2 x RJ-45 Female (Black)	2 x RJ-45 Female (Black)
LEDs
Link	1 (Green)	1 (Green)
Power	1 (Green)	1 (Green)
Switches
EQ Switch	N/A	1 x 8-position switch
Firmware Upgrade	1 x Slide Switch	N/A
Emulation
Keyboard / Mouse	USB	USB
Video	1920 x 1200 @ 60Hz (30 m); 1024 x 768 @ 60Hz (60 m);	1920 x 1200 @ 60Hz (30 m); 1024 x 768 @ 60Hz (60 m);
Power Consumption	DC5.3V:1.92W:13BTU	DC5.3V:1.69W:12BTU
Environmental
Operating Temperature	0–50°C	0–50°C
Storage Temperature	-20–60°C	-20–60°C
Humidity	0–80% RH, Non-condensing	0–80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.48 kg ( 1.06 lb )	0.48 kg ( 1.06 lb )
Dimensions (L x W x H)	20.20 x 8.54 x 2.50 cm (7.95 x 3.36 x 0.98 in.)	20.20 x 8.50 x 2.50 cm (7.95 x 3.35 x 0.98 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Firmware

Description	Ver.	Release Date	File Name
Firmware Upgrade	v1.1.108	2018-10-31	ce600_ce602_v1.1.108.zip
Firmware Upgrade	v1.1.107	2018-06-06	ce600_ce602_v1.1.107.zip
Firmware Upgrade	v1.1.106	2017-07-24	ce600_ce602_v1.1.106.zip
Firmware Upgrade	v1.1.105	2016-09-26	ce600_ce602_v1.1.105.zip
Firmware Upgrade	v1.1.104	2014-05-21	ce600_ce602_v1.1.104.zip
Firmware Upgrade	v1.1.101	2011-10-05	ce600_602_v1.1.101.zip

We are here to help! Please visit ATEN eService for technical assistance.

(CE600-AT-U)

ATEN CE600 DVI USB KVM Console Extender - 1920 x 1080 @ 30m - Supports up to 60m & RS232

SKU	CE600-AT-U
Barcode #	672792002991
Brand	ATEN
Shipping Weight	2.7900kg
Shipping Width	0.100m
Shipping Height	0.210m
Shipping Length	0.320m
Shipping Cubic	0.006720000m3

Manufacturer Warranty: 2 Years Limited Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

ATEN CE600 USB DVI Cat5 KVM Extender - 1024 x 768 at 60m

Name: ATEN CE600 USB DVI Cat5 KVM Extender - 1024 x 768 at 60m
Brand: ATEN
SKU: CE600-AT-U
Price: 409 AUD
Availability: OutOfStock
