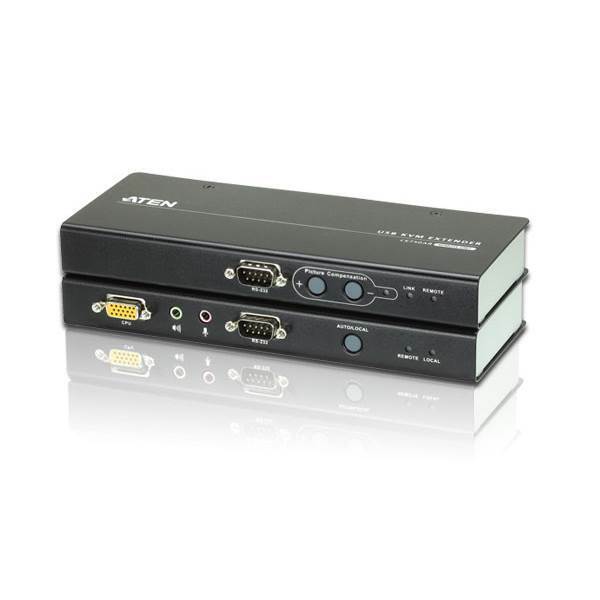

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).

Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.

The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).

Package Contents

1x CE750AL USB KVM Extender (Local Unit)
1x CE750AR USB KVM Extender (Remote Unit)
1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
2x Power Adapters
1x Mounting Kit
1x User Instructions

Local and Remote units connect at distances up to 200 meters using Cat 5e cable
Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
USB keyboard and USB mouse ports
RS-232 serial ports – allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit)
Supports stereo speakers and stereo microphone
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes
Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV) and 2KV surge protection
Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
High resolution video – up to 1920x1200@60Hz at 30m,1600x1200@60Hz at 150m, 1280x1024@60Hz at 200m
Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), and multisync monitors; local monitor supports DDC, DDC2, DDC2B
Hot pluggable
Rack mountable
Easy to install – no software required, simply connect cables to the devices
Supports wide screen formats*

* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays, connect the monitor to the local video output port or use an ATEN EDID emulator.

Function	CE750AL	CE750AR
Connectors

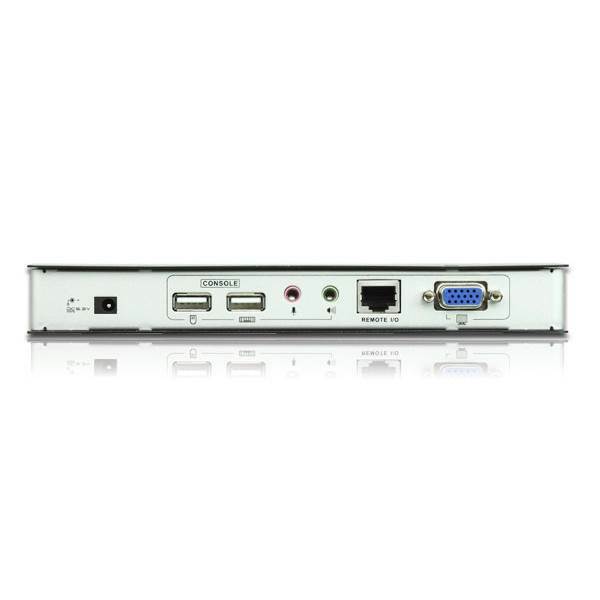

Console Ports	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports	1 x SPHD-15 Female (Yellow) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)	N/A
RS-232	1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
Power	1 x DC Jack (Black)	1 x DC Jack (Black)
Unit To Unit	1 x RJ-45 Female (Black)	1 x RJ-45 Female (Black)
LEDs
Remote	1 (Green)	1 (Green)
Link	N/A	1 (Green)
Local	1 (Green)	N/A
Picture Compensation	N/A	1 (Orange)
Pushbuttons
Operating Mode Selection	1 x Pushbutton	N/A
Picture Compensation	N/A	2 x Pushbuttons
Emulation
Keyboard / Mouse	USB	USB
Video	1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m	1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m
Power Consumption	DC5.3V:2.44W:16BTU	DC5.3V:3.27W:20BTU
Environmental
Operating Temperature	0-50?C	0-50?C
Storage Temperature	-20-60?C	-20-60?C
Humidity	0-80% RH, Non-condensing	0-80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.47 kg ( 1.04 lb )	0.47 kg ( 1.04 lb )
Dimensions (L x W x H)	20.20 x 8.63 x 2.50 cm (7.95 x 3.4 x 0.98 in.)	20.20 x 8.51 x 2.50 cm (7.95 x 3.35 x 0.98 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(CE750A-AT-U)

ATEN CE750A USB VGA/Audio over Cat5 KVM Extender - 1280x1024 at 200m - Built-in ASIC for greater reliability and compatibility - Dual console operation - 2x USB Type A Female (White), 1x HDB-15 Female (Blue), 1x Mini Stereo Jack Female (Green), 1x Mini Stereo Jack Female (Pink), 1x DB-9 Female (Black), 1x RJ-45 Female, 1x DC Jack - 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m

SKU	CE750A-AT-U
Barcode #	672792006852
Brand	ATEN
Shipping Weight	2.7000kg
Shipping Width	0.100m
Shipping Height	0.210m
Shipping Length	0.330m
Shipping Cubic	0.006930000m3

Manufacturer Warranty: 2 Years Limited Warranty
