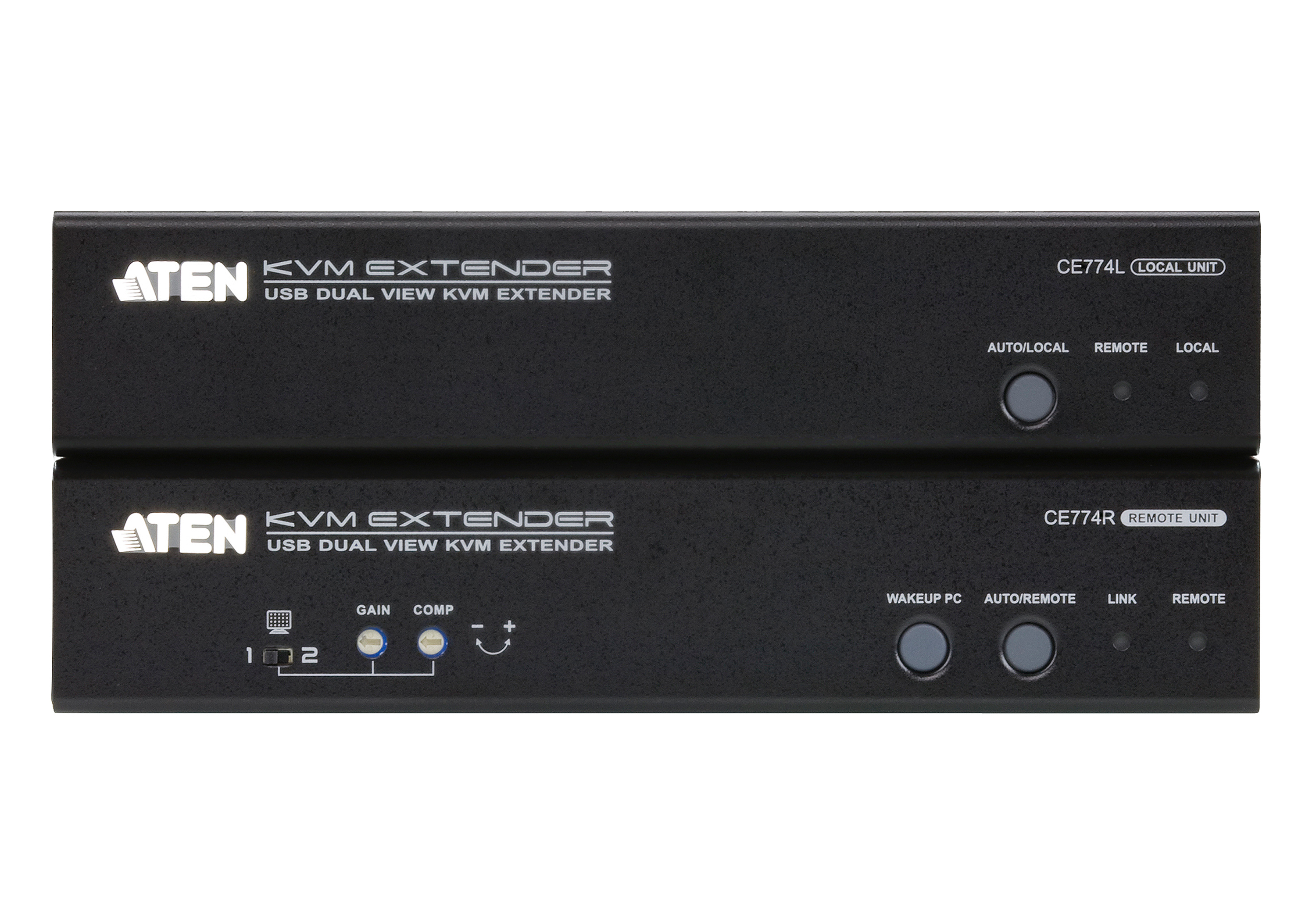

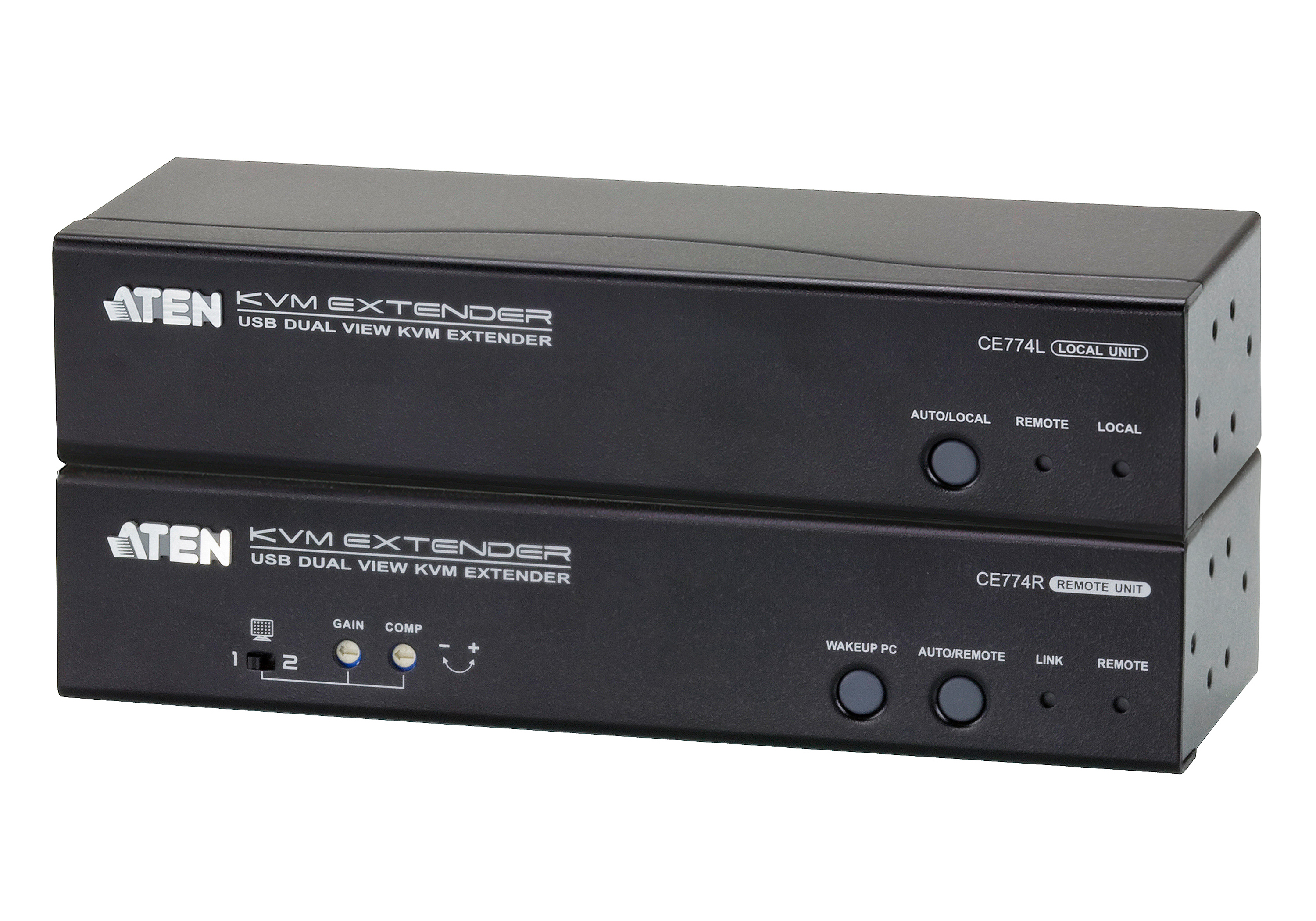

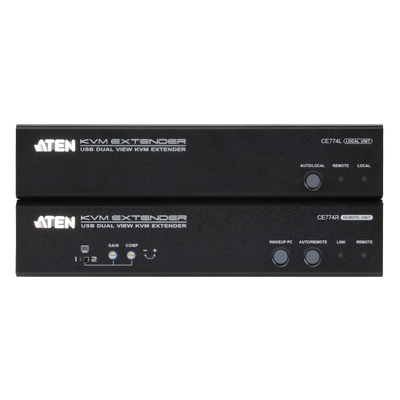

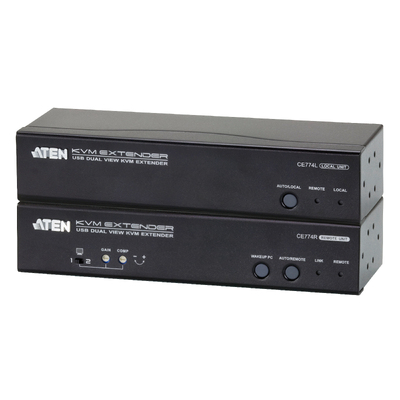

ATEN CE774-AT-U USB VGA Dual View Cat 5 KVM Extender (1600 x 1200@150m)
Model # CE774-AT-U
-
SKU: CE774-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN CE774 Dual View KVM Extenders allows access to a computer system from a remote Dual View console up to 150 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible. Use the improved built-in front panel tuners to easily adjust the picture quality.
Package Contents
- 1x CE774L USB KVM Extender (Local Unit)
- 1x CE774R USB KVM Extender (Remote Unit)
- 1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
- 1x VGA Cable (1.8m)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
(CE774-AT-U)

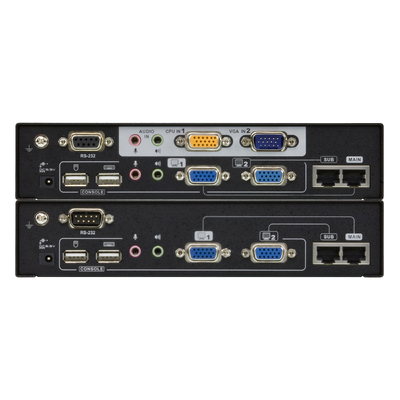

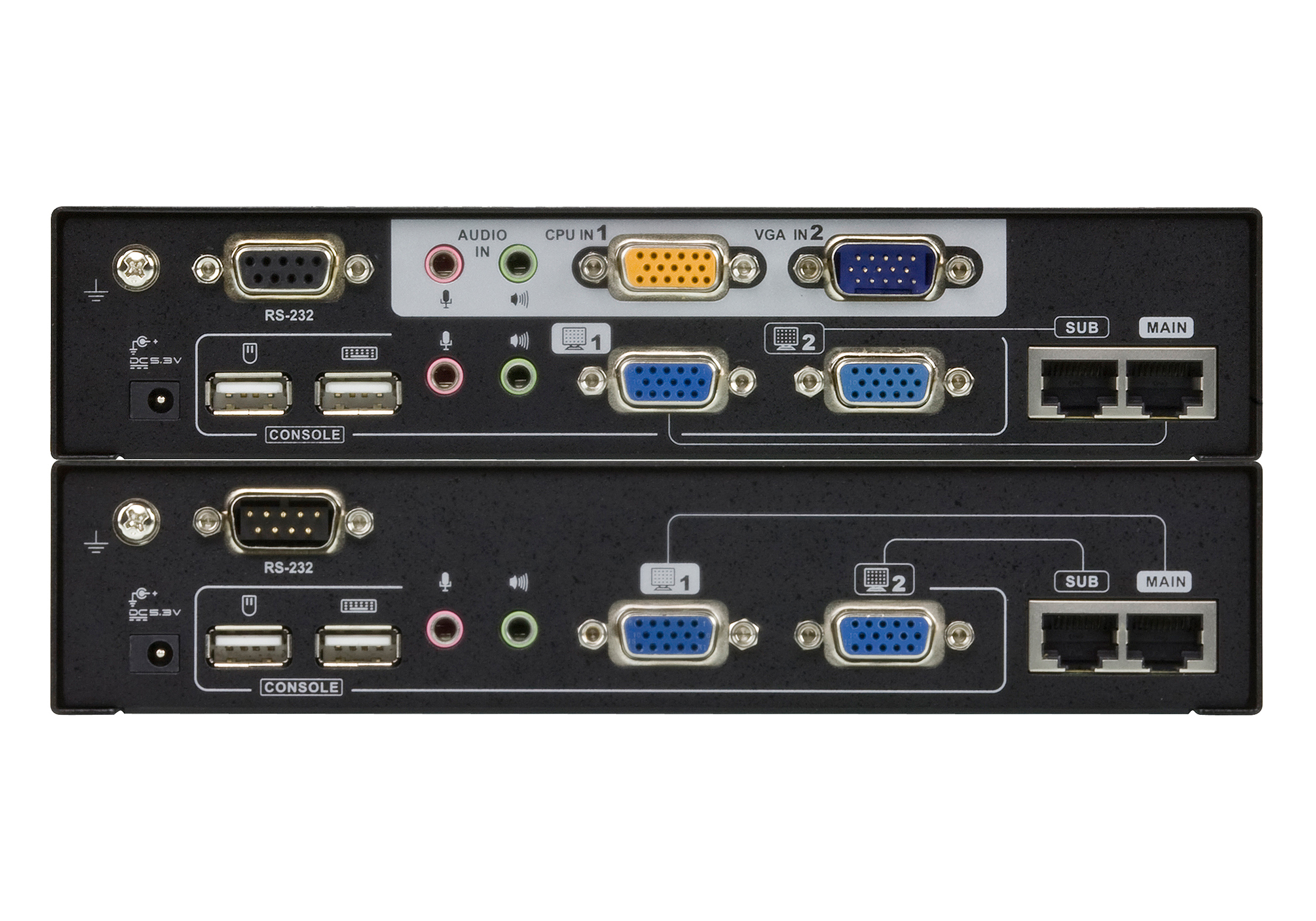

| Function | CE774L | CE774R |
| Connectors | ||
| Console Ports | 2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) | 2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 1 x SPHD-17 Female (Yellow) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x HDB-15 Male (Blue) | N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
| Unit To Unit | 2 x RJ-45 Female (Black) | 2 x RJ-45 Female (Black) |
| Switches | ||
| Operation Mode Selection | 1 x Pushbutton | 1 x Pushbutton |
| Wakeup PC | N/A | 1 x Pushbutton |
| Video Output Port Selection | N/A | 1 x Slide Switch |
| Video Gain Tuner | N/A | 1 x Knob |
| Video Compensation Tuner | N/A | 1 x Knob |
| LEDs | ||
| Local | 1 (Green) | N/A |
| Remote | 1 (Green) | 1 (Green) |
| Link | N/A | 1 (Green) |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Video | 1920 x 1200 @ 60Hz (30 m); 1600 x 1200 @ 60Hz (150 m) | 1920 x 1200 @ 60Hz (30 m); 1600 x 1200 @ 60Hz (150 m) |
| Power Consumption | DC5.3V:3.83W:22BTU | DC5.3V:5.73W:31BTU |
| Environmental | ||
| Operating Temperature | 0–50°C | 0–50°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.69 kg ( 1.52 lb ) | 0.69 kg ( 1.52 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.62 x 4.20 cm (7.87 x 3 x 1.65 in.) | 20.00 x 7.63 x 4.20 cm (7.87 x 3 x 1.65 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| SKU | CE774-AT-U |
| Barcode # | 4710423778504 |
| Brand | ATEN |
| Shipping Weight | 0.4900kg |
