ATEN SKU CE924-AT-U

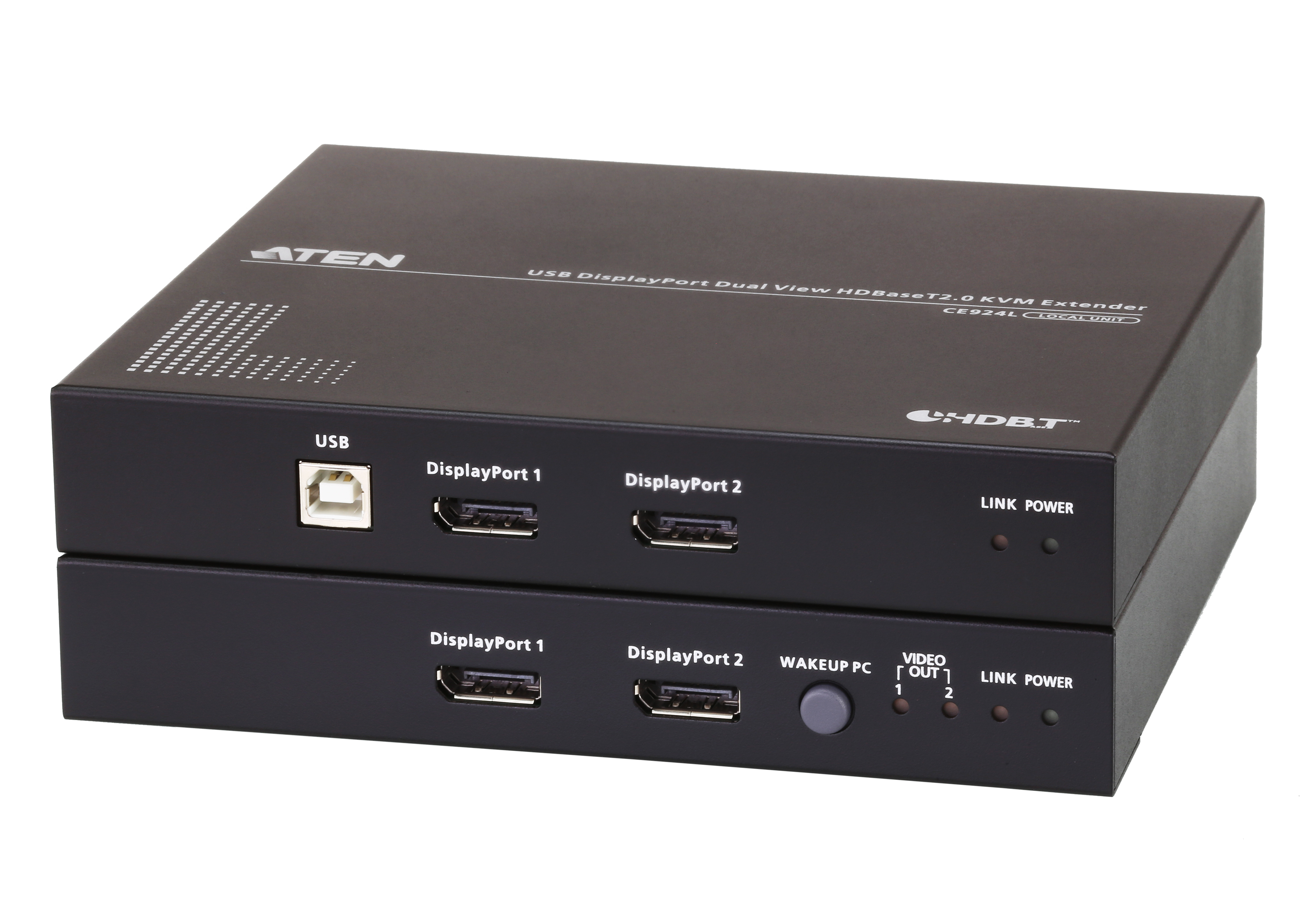

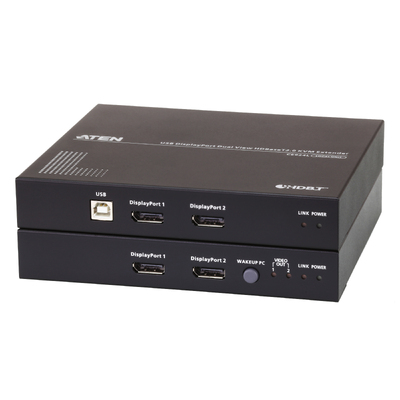

ATEN CE924-AT-U Dual-View DisplayPort HDBaseT KVM Extender

The ATEN CE924-AT-U is a dual-view DisplayPort HDBaseT 2.0 KVM extender for single-display 4K or dual-display 1080p operation over one Cat cable.

The supplied source lists single-view 4K up to 90m on Cat 5e or 100m on Cat 6/6a/ATEN 2L-2910 and dual-view 1080p up to 100m on Cat 6/6a/2L-2910.

Single 4K or dual 1080pUp to 100mUSB and RS-2321-year warrantyDeviceDeal authorised ATEN reseller

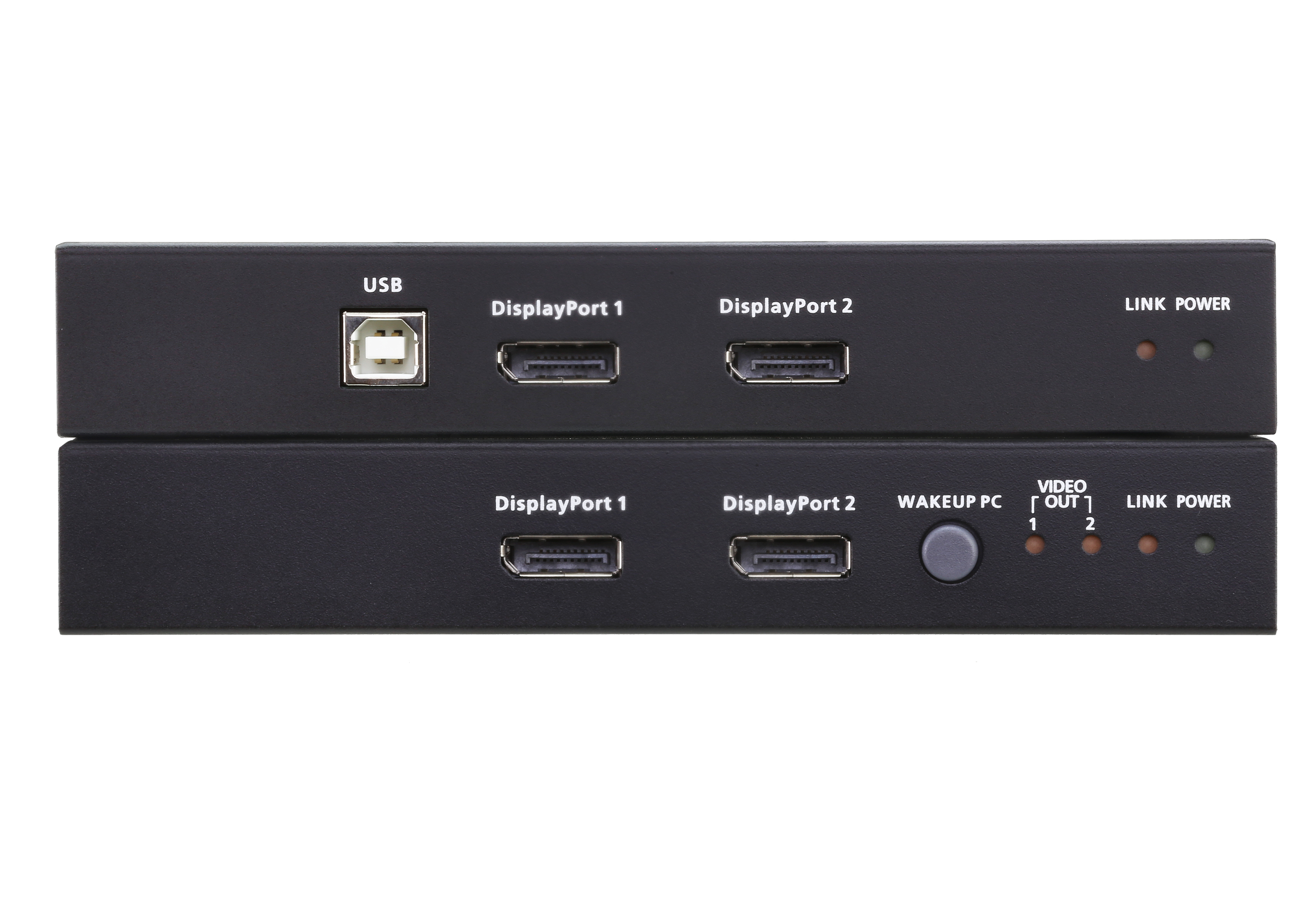

ATEN CE924-AT-U Dual-View DisplayPort HDBaseT KVM Extender shown in the supplied second product image

Product overview

Single 4K or dual 1080p

The supplied record supports a single 4K display or dual 1080p DisplayPort outputs.

Up to 100m

Single-view 4K and dual-view 1080p are listed up to 100m with Cat 6/6a or ATEN 2L-2910 Cat 6 cable.

USB, audio and RS-232

The local and remote units carry DisplayPort, USB, speaker, microphone and serial control signals.

Source review: The supplied DisplayPort specification supports up to 4K x 2K at 30Hz, does not support 4K x 2K at 60Hz 4:2:0, and does not support MST mode.

Frequently asked questions

Can the CE924-AT-U extend two displays?

Yes. The source lists dual-view operation up to 1080p at 100m over Cat 6/6a/ATEN 2L-2910 Cat 6.

What is the single-display maximum?

The source lists single-view 4K up to 90m on Cat 5e or 100m on Cat 6/6a/ATEN 2L-2910.

Does it support 4K at 60Hz or MST?

No. The supplied note states that 4K x 2K at 60Hz 4:2:0 and MST mode are not supported.

What is included?

The source lists local and remote units, two DisplayPort cables, speaker and microphone cables, one USB cable, two power adapters, two mounting kits and user instructions.

What warranty is supplied?

The source lists a one-year ATEN manufacturer warranty.

(CE924-AT-U)

Features

ATEN CE924-AT-U Dual-View DisplayPort HDBaseT KVM Extender

Display modes

Single-view 4K up to 100m
Dual-view 1080p up to 100m
4096 x 2160 / 3840 x 2160 @ 30Hz 4:4:4
MST not supported

Connections

2 x DisplayPort local KVM ports
2 x DisplayPort remote console ports
USB
Stereo speaker and microphone
RS-232

Installation

Single Cat unit-to-unit link
HDBaseT 2.0
Long Reach mode
Metal housing
Mounting kits included

Use Cat 6/6a or ATEN 2L-2910 Cat 6 when planning the stated 100m single-4K or dual-1080p deployment.

Technical specifications

ATEN CE924-AT-U Dual-View DisplayPort HDBaseT KVM Extender

Product details
Brand	ATEN
Model / SKU	CE924-AT-U
Product type	USB DisplayPort dual-view HDBaseT 2.0 KVM extender
Units	CE924L local; CE924R remote
Video and extension
Single-view 4K	Up to 90m on Cat 5e; 100m on Cat 6/6a/ATEN 2L-2910
Single-view 1080p	Up to 100m on Cat 5e/6/6a/ATEN 2L-2910
Dual-view	Up to 1080p at 100m on Cat 6/6a/ATEN 2L-2910
4K format	4096 x 2160 / 3840 x 2160 @ 30Hz 4:4:4
Limitations	No 4K x 2K @ 60Hz 4:2:0; no MST mode
Connections

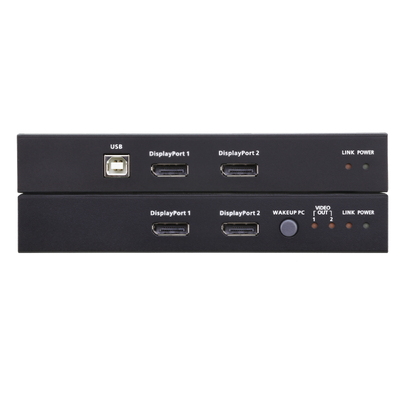

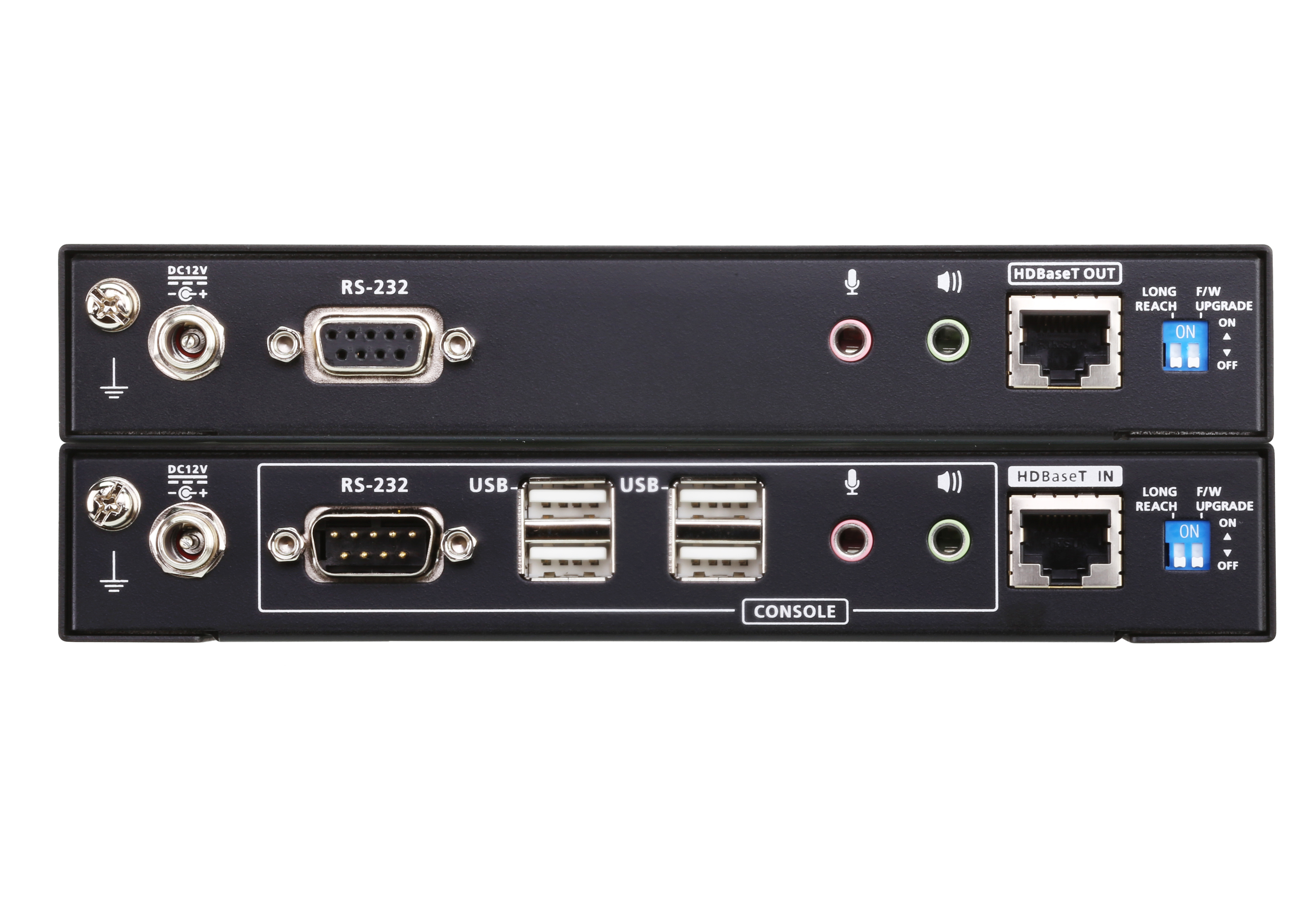

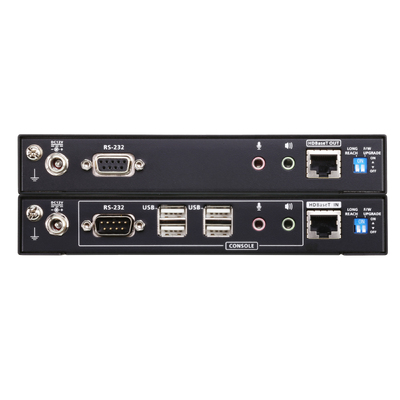

Local KVM ports	2 x DisplayPort female; USB Type-B female; speaker and microphone jacks
Remote console	2 x DisplayPort female; 4 x USB Type-A female; speaker and microphone jacks
RS-232	DB-9 female local; DB-9 male remote
Unit-to-unit	1 x RJ-45 female on each unit
Power	Locking DC jack on each unit
Power and environment
Local power consumption	DC 12V; 7.03W; 33BTU
Remote power consumption	DC 12V; 9.92W; 69BTU
Operating temperature	040°C
Storage temperature	-2060°C
Humidity	080% RH, non-condensing
Physical properties
Housing	Metal
Local weight	0.82kg
Remote weight	0.85kg
Local dimensions (L x W x H)	17.42 x 15.41 x 2.88cm
Remote dimensions (L x W x H)	17.42 x 15.57 x 2.88cm
Package contents
Included	CE924L local; CE924R remote; 2 DisplayPort cables; speaker and microphone cable sets; USB Type-A to Type-B cable; 2 power adapters; 2 mounting kits; user instructions

SKU	CE924-AT-U
Barcode #	4710469340611
Brand	Aten
Shipping Weight	0.8200kg

Warranty information

ATEN CE924-AT-U Dual-View DisplayPort HDBaseT KVM Extender

1-Year ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a one-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
