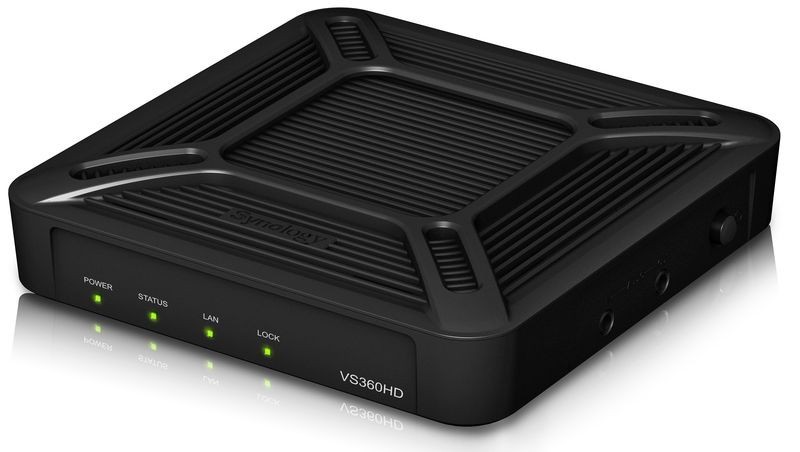

Synology VS360HD Surveillance Station Live View Companion - Video Output: VGA x1, HDMI x1 - Supported Video Resolution: 1080p 60Hz - Audio Input: 3.5 mm Stereo Audio Jack x1 - Audio Output: 3.5 mm Stereo Audio Jack x1 - 2x USB 2.0 Ports, 1x USB 3.0 Port - 1x RJ-45 Gigabit Etherent LAN Port - 3 Year Warranty



Ultra-compact live view and management companion

VisualStation VS360HD is a companion system for Surveillance Station. Upgradeable for free1, VS360HD serves as an amazingly compact monitoring and playback station for your local teams — without needing a dedicated computer. In addition, its industrial grade design makes VS360HD ideal for deployments in harsh environments and where space is limited.




Convenient live view and playback interface

Thanks to the versatile features of Surveillance Station, VS360HD is very easy to operate, for both beginner and advanced users. The intuitive interface ensures easy access to most Surveillance Station features2. When you turn on VS360HD, you are taken directly to the Live View panel, so you can perform PTZ actions, switch to Timeline to watch recorded events, or take snapshots and export them to an external storage device, all by using a USB mouse.


Easy to configure, easy to use

Using the latest upgrade3, VS360HD can directly manage and pair video streams to send from multiple Surveillance Stations (via CMS). Just like accessing Surveillance Station via a web browser, VS360HD's brand new multi-tasking interface enables you to efficiently use and manage your surveillance playback and live views. VS360HD supports 720p at up to 36-channel live feeds in H.264, or even reaches a resolution of 5 megapixels at up to 6 channels. VS360HD is also compatible with MJPEG or MPEG4 video formats.


Ideal for TV wall setup

TV walls are ideal for monitoring a massive amount of cameras at a glance. Thanks to the dual video output, you can connect multiple VS360HD units to a KVM switch to create a cost-efficient, easy to setup, and scalable TV wall.


Achieve flexibility through rich connectivity

Despite its small form factor, VS360HD packs a multitude of ports for guaranteed flexibility. With the USB 3.0 and 2.0 ports, it's easy to connect a drive and save video recordings or snapshots. With a total of three USB ports, the VS360HD can be connected to a mouse, keyboard, and even a joystick4 for PTZ control.


Robust and certified hardware for harsh environments

Free from mechanical moving parts, VS360HD is more resistant against vibration and hardware failure. Its solid outer case and optimized design allow VS360HD to run within industrial temperature ranges, from -20˚C to 50˚C. In addition, VS360HD is EN45545 and EN50155 certified.


Energy efficiency and compact design

Thanks to its fanless design, VS360HD is completely silent, and its energy consumption is less than 5W at peak operation, even less than a smartphone charger. Even more impressive is that the whole system fits in a palm-sized enclosure and can be easily attached to a wall or the back of a screen with a VESA compatible mount.


  1. Requires a software update, please check the manual here.
  2. Some of the features on Surveillance Station are not yet available on the VS360HD. Learn more.
  3. Surveillance Station 8.0 beta or above is needed to support all features on VS360HD.
  4. For a list of currently supported Joystick models, please click here



Hardware Specifications
Video Outputs
Video Output VGA X 1, HDMI X 1
Supported Video Resolution 1080p 60Hz
Audio Input 3.5 mm Stereo Audio Jack x 1
Audio Output 3.5 mm Stereo Audio Jack x 1
USB 2.0 Port 2
USB 3.0 Port 1
Size 32 mm x 130 mm x 130 mm
Weight 0.3 kg
RJ-45 1GbE LAN Port 1
Power Supply Unit / Adapter 36W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 4.76W (36ch full-load)
3.61W (Power on Idle)
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Adapter Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Relative Humidity 5% to 95% RH
  • FCC Class B
  • CE Class B
  • BSMI Class B
  • EN50155
  • EN45545
Warranty 3 Years
Software Specifications
Maximum IP cam 36
Total FPS (H.264)* 360 FPS @ 720p (1280x720), 36 Channels
160 FPS @ 1080p (1920×1080), 16 Channels
90 FPS @ 3M (2048x1536), 9 Channels
60 FPS @ 5M (2591x1944), 6 Channels
Total FPS (MJPEG)* 150 FPS @ 720p (1280x720), 15 Channels
40 FPS @ 1080p (1920×1080), 4 Channels
20 FPS @ 3M (2048x1536), 2 Channels
10 FPS @ 5M (2591x1944), 1 Channel
Video Compression Format
  • MPEG-4
  • H.264
Audio Codec
  • PCM
  • G711
  • G726
  • AMR
  • AAC
Live View / Recording Playback
Snapshot Support
eMap Support
PTZ Control / Patrol
Log Viewer
  • VisualStation throughput is tested with Axis P1347 (H.264@1280x720@10FPS).
  • The channel numbers indicated in the Total FPS column of each resolution is the maximum number VS360HD supports for live view display.
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Quick Installation Guide X 1
  • AC Power Adapter X 1
  • RJ-45 LAN Cable X 1
  • VESA mounting kit
Barcode # 846504002610
Shipping Weight 1.0000kg
Shipping Width 0.190m
Shipping Height 0.050m
Shipping Length 0.260m
Shipping Cubic 0.002470000m3
Manufacturer Warranty
3 Years Limited Warranty
Manufacturer Contact Info
