Face Recognition Access Controller > 7 inch IPS display, resolution 1024×600 > Support face unlock, fingerprint unlock, IC card unlock, and password unlock; unlock by period > With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web > 2MP wide-angle WDR lens; with auto/manual fill light > Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m > With face recognition algorithm, the access controller can recognize more than 360 positions on human face > Face verification accuracy>99.5%; face comparison speed 0.35s per person; low false recognition rate > Support profile recognition; the profile angle is 0°–90° > Holds 50, 000 users, 50, 000 faces, 10, 000 fingerprints, 50, 000 cards, 50, 000 passwords, and 50 administrators > Support liveness detection > Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm , and more > Support general users, patrol users, VIP users, guest users, and the disabled users > With 4 unlock status display modes

(DHI-ASI7214Y-V3)

System Main Processor Embedded Processor Internet Protocol IPv4, RTSP, RTP, TCP, UDP, P2P OSDP Protocol Yes Interoperability CGI SDK and API Support SDK Basic Display 7 inch IPS Screen Type Capacitive touch screen Resolution 600(H)×1024(V) Camera 2 MP CMOS camera WDR 120dB Light Compensation Auto white light Auto IR light Status Indicator 1 indicator light. Red: Error; Green: Normal; Blue: Working. Voice Prompt Yes Housing Material PC+ABS Function Unlock Mode Fingerprint/card/remote/password/face unlock and unlock through their combinations Card Reading Type IC card Period List 128 Holiday Period 128 First-Card Unlock Yes Remote Verification Yes Peripheral Card Reader 1 RS-485, 1 Wiegand Multiple Card Authentication Yes Real-Time Surveillance Yes Web Configuration Yes Performance Card reading distance 1cm–5cm Face Recognition Range Face-camera distance: 0.3 m–2.0 m; Human height: 0.9 m–2.4 m Face Verification Accuracy >99.5% Face Recognition Time 0.35s Fingerprint Sensor Type Capacitive Fingerprint Verification Method 1:N Fingerprint Comparison Time ?1.5s Capacity User Capacity 50, 000 Face Image Capacity 50, 000 Fingerprint Capacity 10, 000 Card Capacity 50, 000 Password Capacity 50, 000 Record Capacity 100, 000 records Port RS-485 1 RS-232 1 Wiegand 1 input/output USB 1 USB2.0 port Ethernet 1 10M/100M Ethernet Port Alarm Input 2 (Switch quantity) Alarm Output 2 (Relay) Alarm Linkage Yes Exit Button 1 Door Status Detection 1 Lock Control 1 Alarm Anti-Passback Yes Tamper Alarm Yes Duress Yes Door Sensor Timeout Yes Intrusion Yes Illegal Card Exceeding Threshold Yes Duress Fingerprint Yes General Power Supply Provided Power Supply Mode DC 12V 2A Power Consumption 12W Production Dimensions 283.0mm×130.0mm×36.9mm (11.14"×5.12"×1.45") Packaging Dimensions Controller packaging: 380mm×235mm×124mm (14.96"×9.25"×4.88") Protective case: 494mm×402mm×275mm (19.45"×15.83"×10.83") Working Temperature -10°C to +55°C (+14°F to +131°F ) Working Humidity 0%RH–90%RH (non-condensing) Working Environment Indoor Gross Weight 1.8kg (3.97 lb) Installation Method Wall mounted Certifications CE/FCC
SKU DHI-ASI7214Y-V3
Model # 1.0.01.25.10852
Brand DAHUA
Shipping Weight 1.8000kg
Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

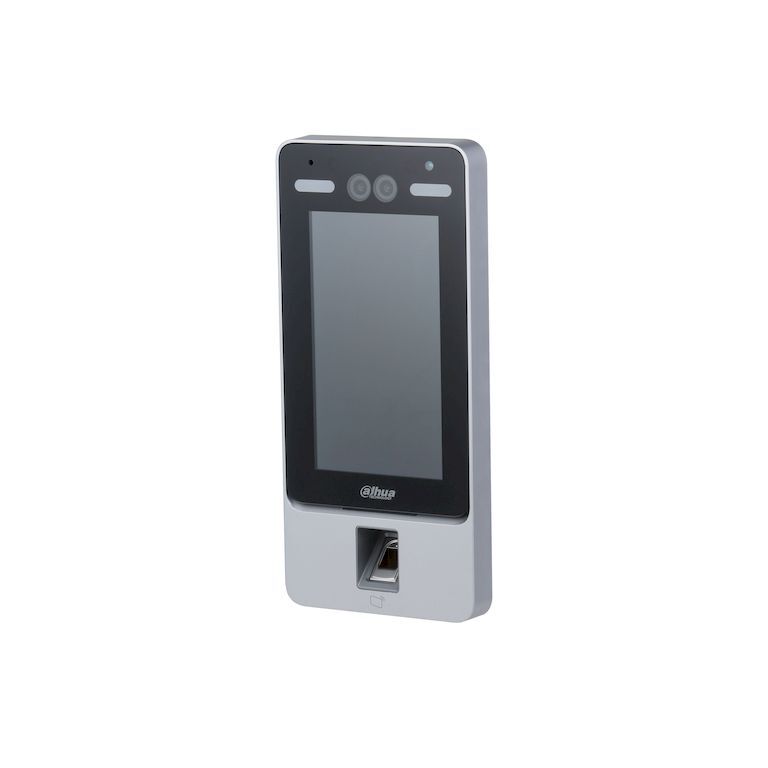

Dahua Face Recognition Access Controller - DHI-ASI7214Y-V3

Model # DHI-ASI7214Y-V3

  • SKU: DHI-ASI7214Y-V3

$941.00
Sold Out
ETA: 11/02/26
