StarTech 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 PEX4S232485
Model # PEX4S232485
-
SKU: PEX4S232485
- Pick Up Available
- Australian Warranty
- Checkout Securely

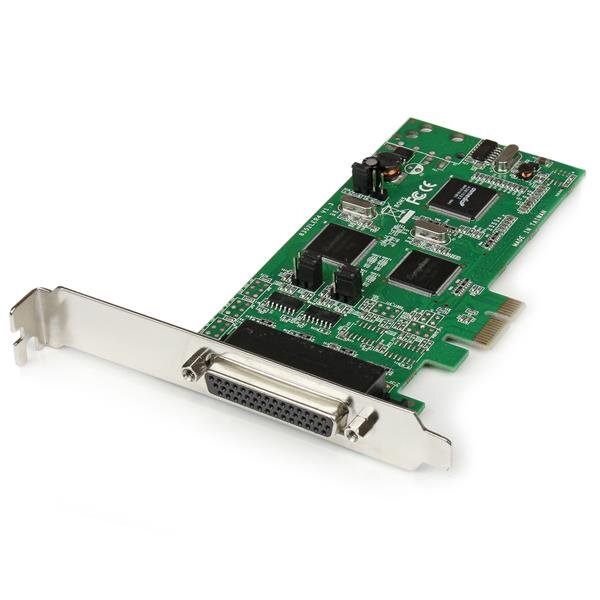

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

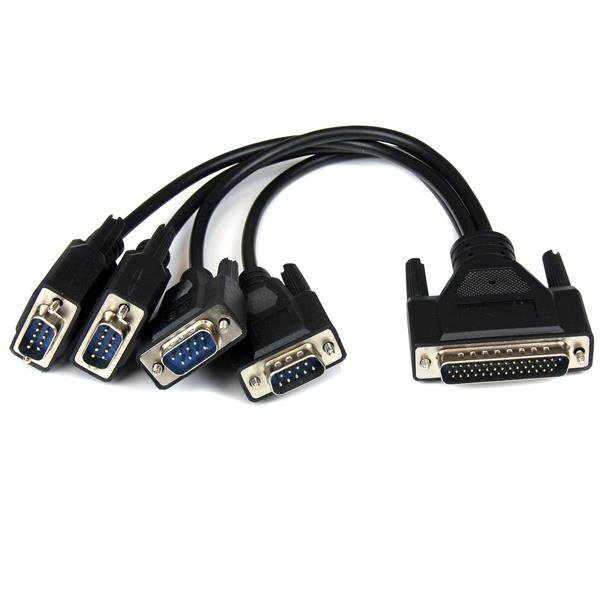

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
(PEX4S232485)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | SystemBase - SB16C1052PCI | |
| Interface | Serial | |
| Port Style | Dongle (Included) | |
| Ports | 4 | |
| Performance | ||
| Data Bits | 5, 6, 7, 8 | |
| FIFO | 256 Bytes | |
| Flow Control | None, Xon/Xoff, RTS/CTS | |
| Max Baud Rate | 460.8 Kbps | |
| Parity | None, Odd, Even, Space, Mark | |
| Serial Protocol | RS-232/422/485 | |
| Stop Bits | 1, 1.5, 2 | |
| Supported Protocols | RS-232, RS-422, RS-485 2-wire / 4-wire | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 4 - DB-9 (9 pin, D-Sub) Male | |
| Software | ||
| OS Compatibility | Windows¨ 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server¨ 2003, 2008 R2, 2012, 2016, 2019 | |
| Special Notes / Requirements | ||
| System and Cable Requirements | Available PCI Express slot | |
| Environmental | ||
| Humidity | 20~80% RH | |
| Operating Temperature | 0¡C to 100¡C (32¡F to 212¡F) | |
| Storage Temperature | 0¡C to 150¡C (32¡F to 302¡F) | |
| Physical Characteristics | ||
| Product Height | 2.7 in [6.9 cm] | |
| Product Length | 5.3 in [13.4 cm] | |
| Product Width | 0.6 in [14 mm] | |
| Weight of Product | 2.4 oz [67.4 g] | |
| Packaging Information | ||
| Package Height | 1.6 in [41 mm] | |
| Package Length | 8.3 in [21 cm] | |
| Package Width | 5.7 in [14.6 cm] | |
| Shipping (Package) Weight | 13.8 oz [390 g] | |
| What's in the Box | ||
| Included in Package | 1 - PCI Express Serial Combo Card | |
| 1 - Breakout Cable | ||
| 1 - Low Profile Bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | PEX4S232485 |
| Barcode # | 65030849357 |
| Brand | STARTECH |
| Shipping Weight | 0.3900kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001050000m3 |
