The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage.

Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It’s also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).

(UDM-SE)

Model	Dream Machine Pro Max UDM-Pro-Max	Dream Machine Special Edition UDM-SE	Dream Machine Pro UDM-Pro
Overview
Managed UniFi Devices	200+	100+	100+
Managed Cameras	(50) HD, (25) 2K, (15) 4K	(24) HD, (14) 2K, (8) 4K	(24) HD, (14) 2K, (8) 4K
Simultaneous Users	2,000+	1,000+	1,000+
IDS/IPS Throughput	5 Gbps	3.5 Gbps	3.5 Gbps
Port Layout 1 GbE RJ45	8 (1G/100M/10M)	8 (1G/100M/10M)	9 (1G/100M/10M)
Port Layout 2.5 GbE RJ45	1 (2.5G/1G/100M/10M)	1 (2.5G/1G/100M/10M)	—
Hardware
NVR Storage	(2) 3.5" NVR HDD bays Built-in 128 GB SSD	(1) 3.5" NVR HDD bay Built-in 128 GB SSD	(1) 3.5" NVR HDD bay
PoE Budget	—	180W	—
Max. PoE Wattage/Port	—	PoE: 15.4W PoE+: 30W	—
Max. Power Consumption	60W	50W (Excl. PoE)	33W
Heat Dissipation	205 BTU/hr	170 BTU/hr	112 BTU/hr
System Memory	8 GB	4 GB	4 GB
Processor	Quad-core ARM® Cortex®-A57 at 2.0 GHz	Quad-core ARM® Cortex®-A57 at 1.7 GHz	Quad-core ARM® Cortex®-A57 at 1.7 GHz
Power Method	(1) Universal AC Input (1) USP-RPS DC Input	(1) Universal AC Input (1) USP-RPS DC Input	(1) Universal AC Input (1) USP-RPS DC Input
Weight	4.7 kg (10.4 lb)	5 kg (10.9 lb)	3.9 kg (8.6 lb)
Certifications	CE, FCC, IC, Anatel, SRRC	CE, FCC, IC, Anatel, SRRC	CE, FCC, IC, Anatel, SRRC

Mechanical

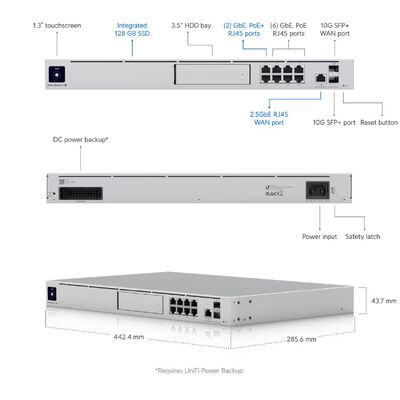

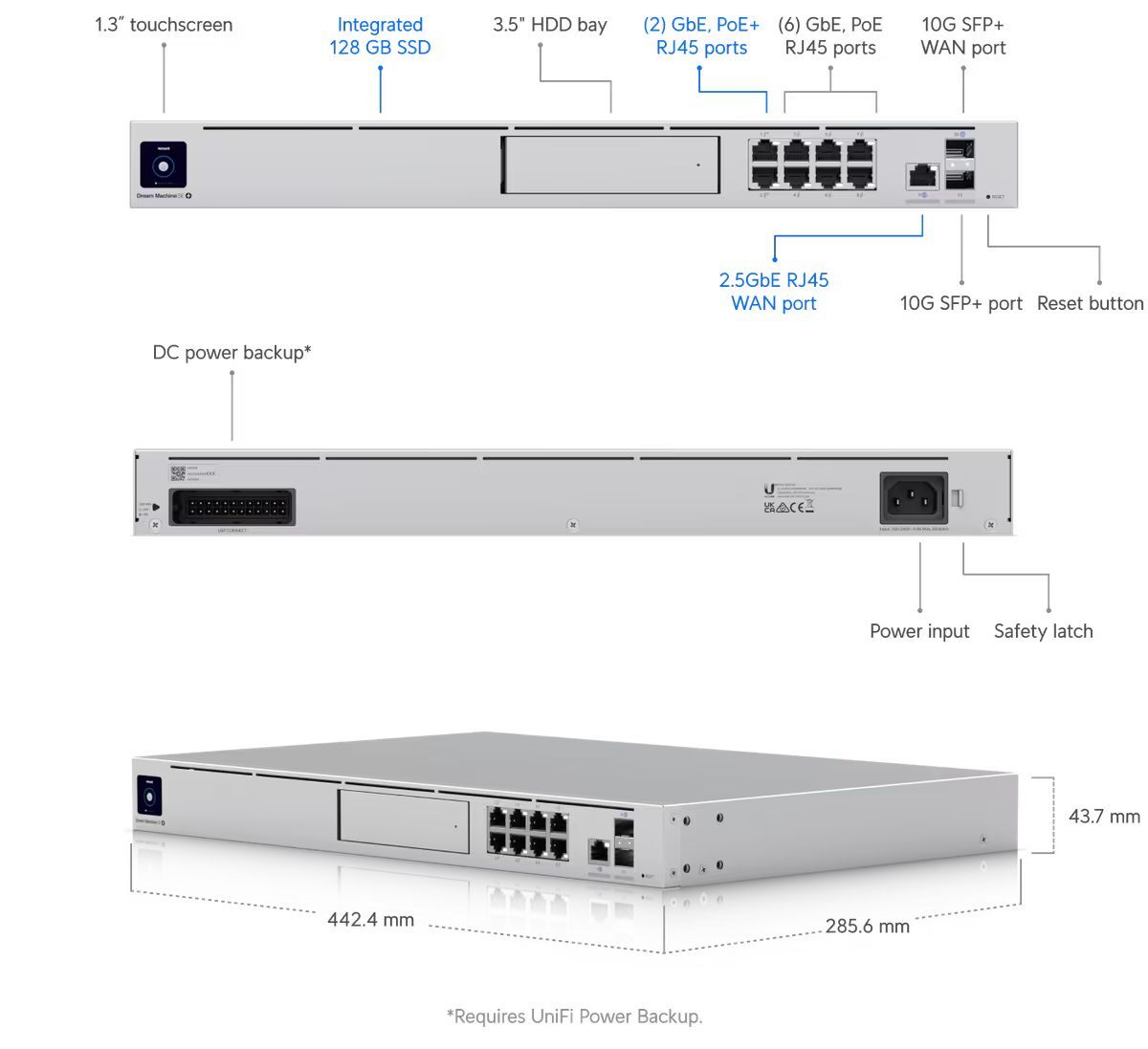

Dimensions	442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight	5 kg (10.9 lb)
Enclosure material	Aluminium CNC, SGCC steel
Mount material	SGCC steel
Hardware
Processor	Quad-core ARM Cortex-A57 at 1.7 GHz
System memory	4 GB DDR4
On-board storage	16 GB eMMC Integrated 128 GB SSD
Management interface	Ethernet Bluetooth
Networking interface	LAN: (8) GbE RJ45 ports (1) 10G SFP+ port WAN: (1) 2.5 GbE RJ45 port (1) 10G SFP+ port
PoE interface	(6) PoE (Pair A 1, 2+; 3, 6-) (2) PoE+ (Pair A 1, 2+; 3, 6-)
IDS/IPS throughput	3.5 Gbps* _{*Measured with iPerf3}
Power method	(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A
Power supply	AC/DC, internal, 240W
Supported voltage range	100—240V AC
Max. power consumption	50W (Excluding PoE output)
PoE budget	180W
Max. PoE wattage per port by PSE	PoE: 15.4W PoE+: 30W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
ESD/EMP protection	Air: ± 15kV, contact: ± 8kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Operating temperature	-10 to 40° C (14 to 104° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Gateway Features
Performance	Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting
Next-generation security	Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall
Advanced networking	License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support
LEDs
Ethernet	White: link/activity
SFP+	White: link/activity
HDD	White: disk activity Amber: disk error
RPS	Blue: ready

SKU	UDM-SE
Barcode #	810010070869
Brand	UBIQUITI
Shipping Weight	5.7000kg
Shipping Width	0.520m
Shipping Height	0.120m
Shipping Length	0.410m

Manufacturer Warranty : 1 Year Manufacturer Warranty
