Overview

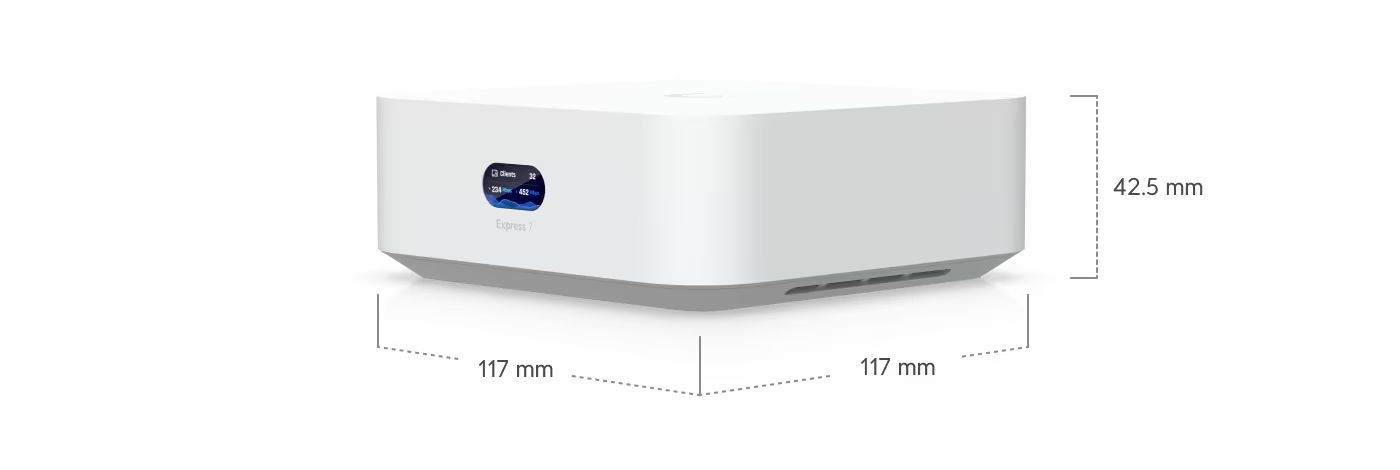

Dimensions

117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')

UniFi Application Suite

Network

✓

Managed UniFi Devices

30+

Simultaneous Users Connected

300+

Max. WAN Port Count

1

Default WAN Ports

(1) 10 GbE RJ45

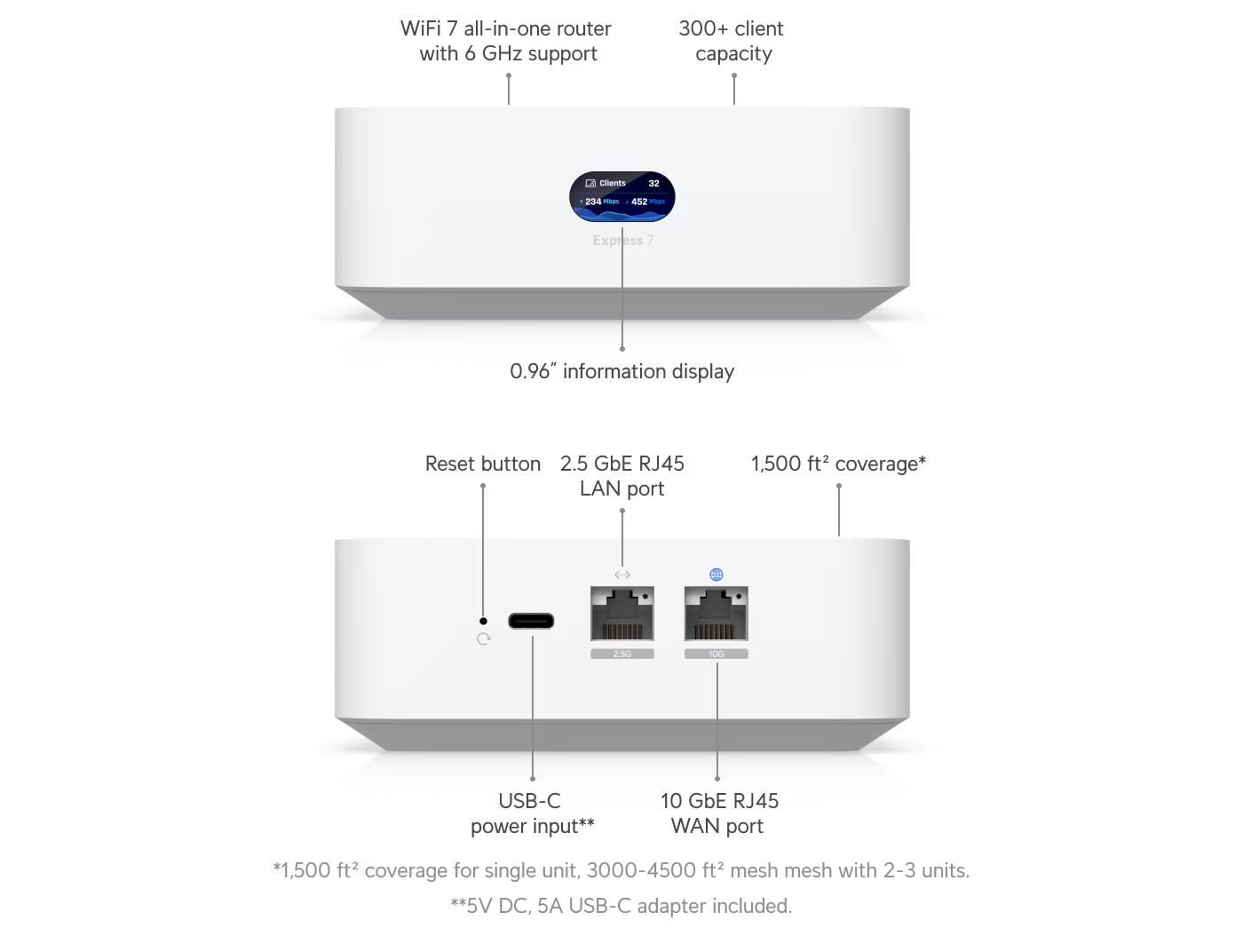

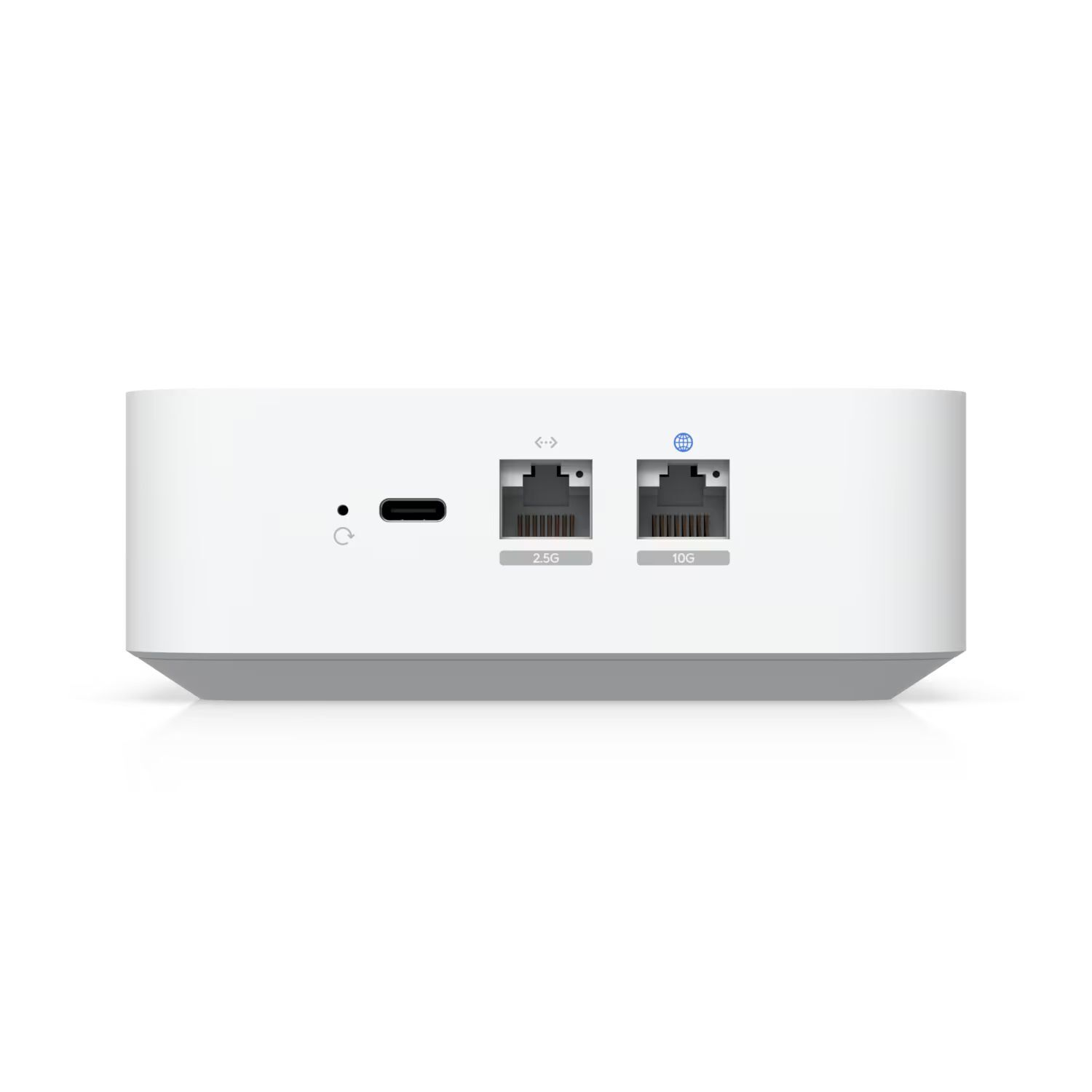

Port Layout

2.5 GbE RJ45

1 (2.5G/1G/100M/10M)

10 GbE RJ45

1 (10G/5G/2.5G/1G/100M)

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Coverage Area

160 m² (1,750 ft²)

Security

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

✓

VPN & SD-WAN

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic

✓

IPsec

✓

OpenVPN

✓

VPN Server

Identity Endpoint One-Click VPN

✓

Teleport Zero-Configuration VPN

✓

WireGuard

✓

OpenVPN

✓

L2TP

✓

VPN Client

OpenVPN

✓

WireGuard

✓

Networking

Dynamic Routing

OSPF

✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

Policy-based WAN and VPN Routing

✓

Customizable DHCP Server

✓

IPv6 ISP Support

✓

IGMP Proxy

✓

Virtual Network Override

✓

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz

5.7 Gbps

5 GHz

4.3 Gbps

2.4 GHz

688 Mbps

MIMO

6 GHz

2 x 2 (DL/UL MU-MIMO)

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz

6 dBi

5 GHz

7 dBi

2.4 GHz

4 dBi

Max. TX Power

6 GHz

24 dBm

5 GHz

26 dBm

2.4 GHz

23 dBm

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio (Gateway Mode) 4 per Radio (AP Mode)

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware

Max. Power Consumption

22W

Power Method

USB type C (5V DC/5A)

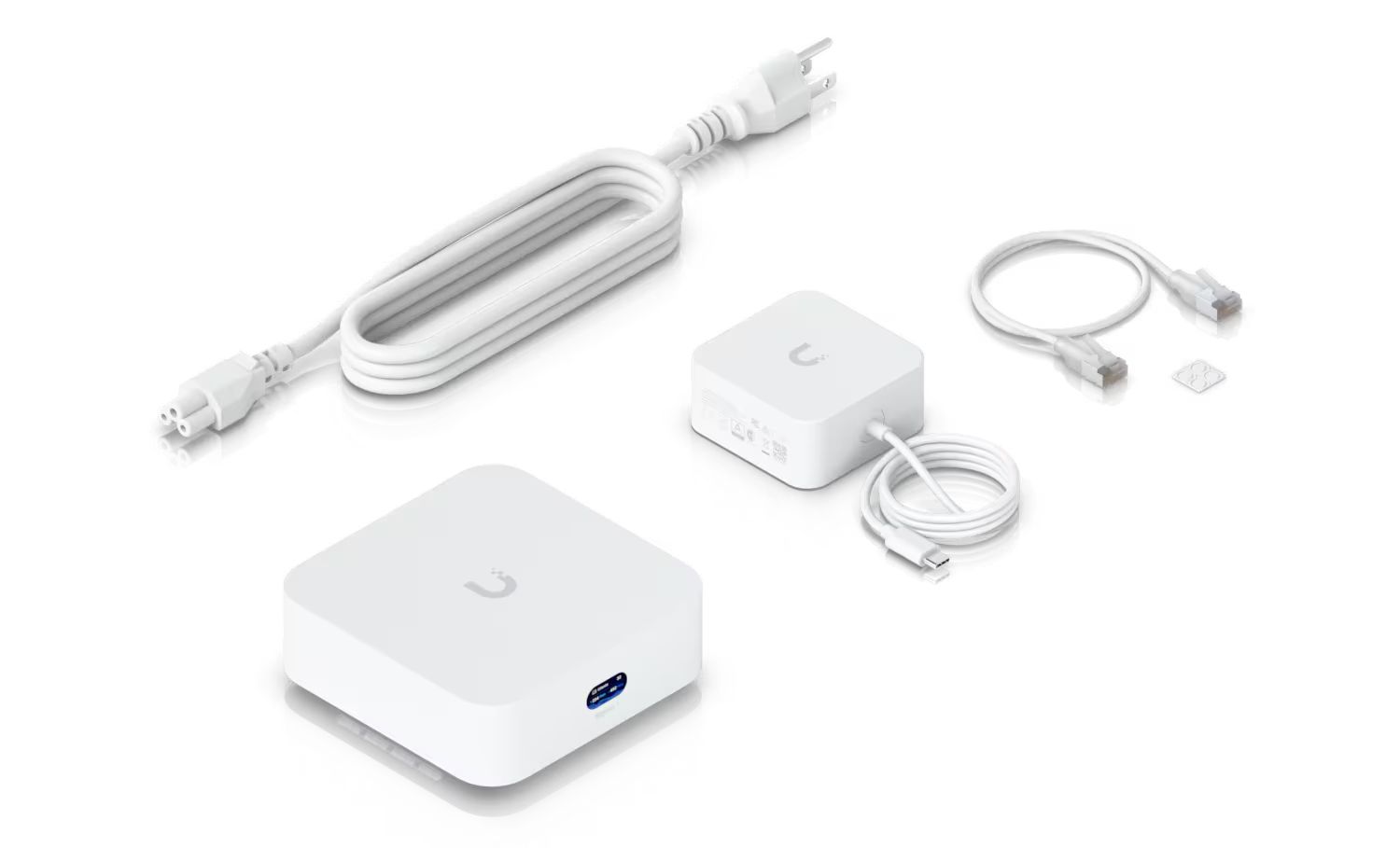

Power Supply

USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range

100–240V AC

Heat Dissipation

75 BTU/hr

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

422 g (14.9 oz)

Enclosure Material

Polycarbonate

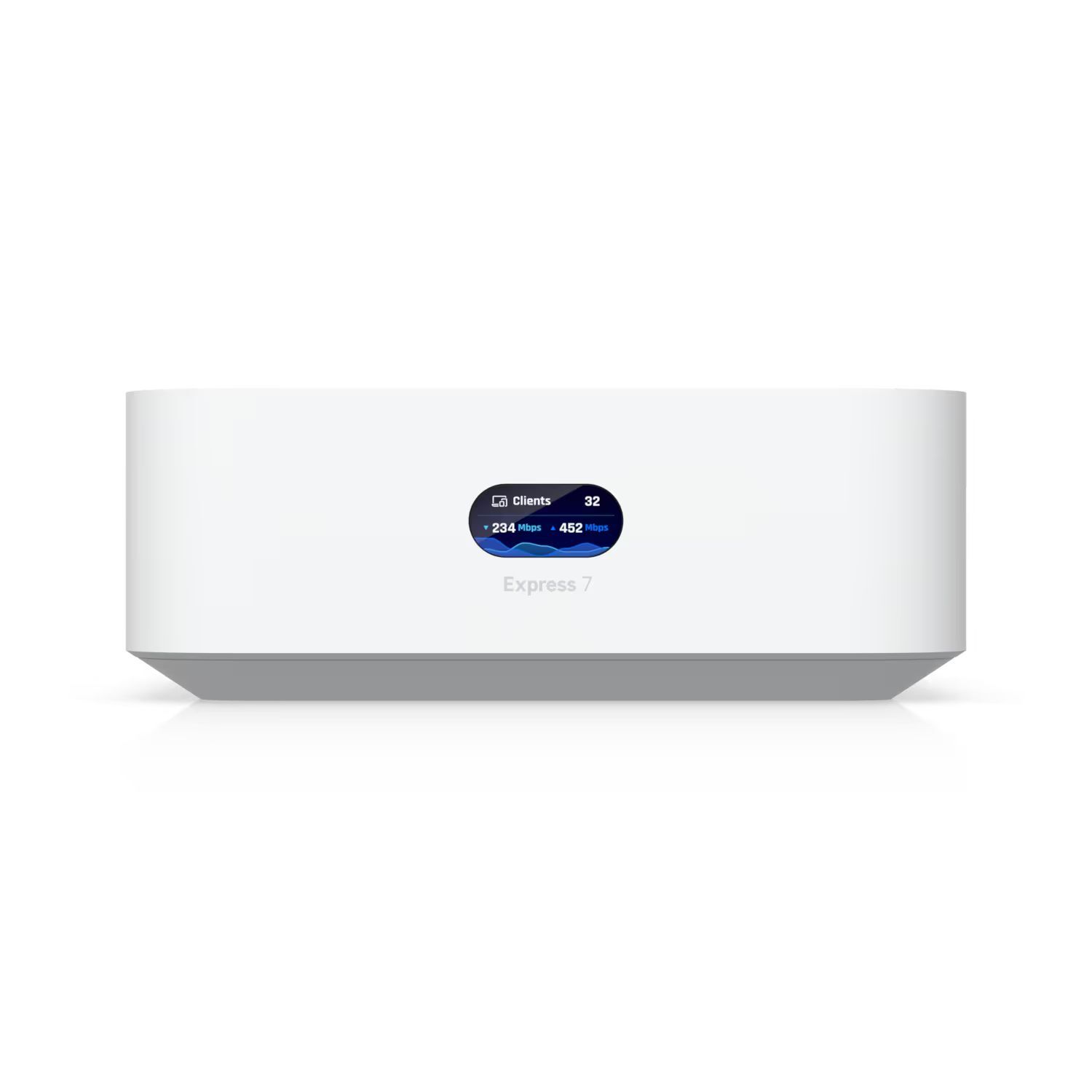

LCM Display

0.96" status display

Management

Ethernet Bluetooth

LEDs

Ethernet

✓

Button

(1) Factory reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel: 06656-25-08356

Software

VLAN

802.1Q

Guest Traffic Isolation

✓

Application Requirements

UniFi Network

Version 9.0.108 and later

Manufacturer Warranty : 1 Year Manufacturer Warranty
