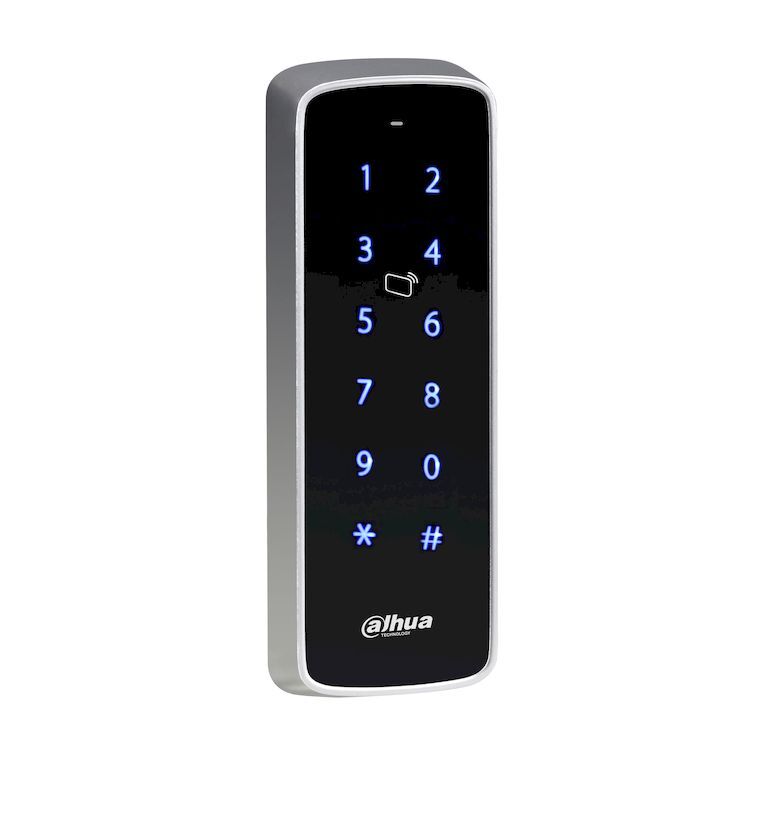

Slim Water-proof RFID Reader > Support RS485, Wiegand34 protocol(Wiegand 26 optional) > 13.56MHz(Mifare) > 125KHz(EM-ID) > Red and Blue LEDs > Watch dog function ensure device free from halting > Water-proof(Outdoor use) > Surface/Flush mounted installation

(ASR1201D)

Technical Speci?cation Model ASR1201D ASR1201D-D System Main Processor 8 Bit Read Read Format 13.56MHz 125KHz Read Range 1cm3cm (max.) Reading time <0.1s Function Tamper Alarm Yes Interface To Controller RS485, Wiegand34(Wiegand 26 optional) General Keypad 12Keys (0-9,*,#) LED Indicator Yes Beep Tone Buzzer Ingress Protection IP55 Power Supply 9V15V DC/100mA Operating Temperature -30°C to +60°C Working Humidity ?95% Dimension(W×D×H) 135×47.5×16mm Weight 0.18kg Working Environment Outdoor Certificates CE Yes FCC Yes

SKU	ASR1201D
Model #	1.0.01.25.10334
Barcode #	6939554945557
Brand	DAHUA
Shipping Weight	0.1800kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Dahua ASR1201D Slim Waterproof Access Control RFID Reader - ASR1201D

Name: Dahua ASR1201D Slim Waterproof Access Control RFID Reader - ASR1201D
Brand: DAHUA
SKU: ASR1201D
Price: 133 AUD
Availability: OutOfStock
