60W Ultra PoE Kit | 60W Over 100 m | 802.3af/at/bt Compatible | 10/100/1000Mbps

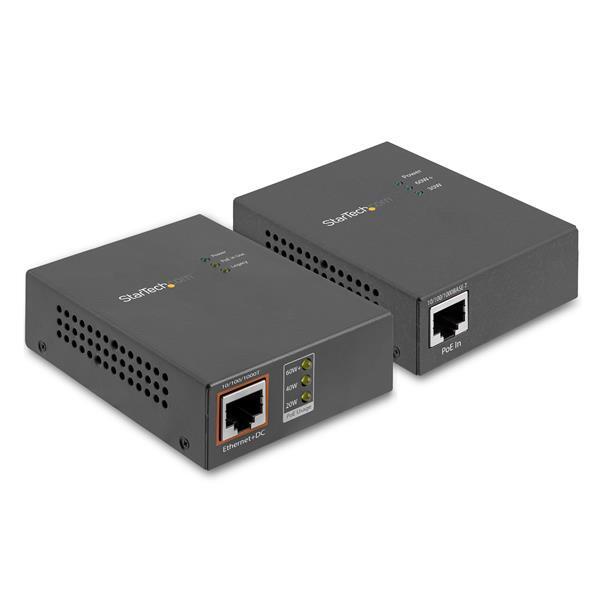

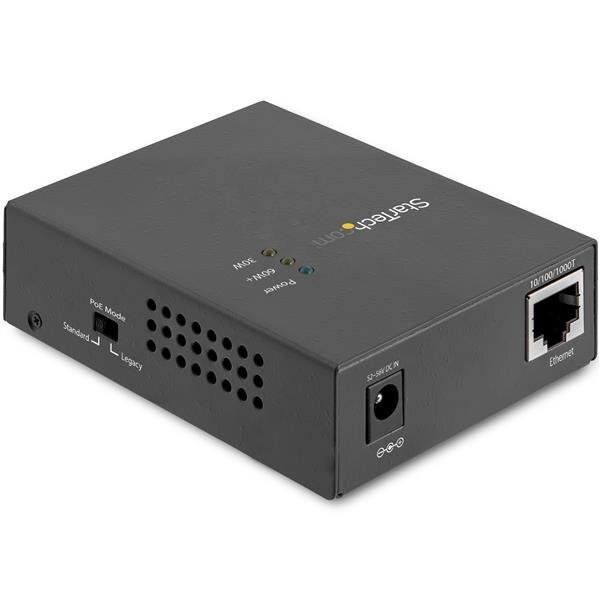

This 60W PoE Injector + PoE Splitter Kit comes with a 60W Power over Ethernet injector, adding PoE via PoE.

60 Watt Ultra Power Over Ethernet

Compliant with IEEE 802.3bt and supporting up to 60 watts of PoE, you can do more than just power your IP phone or wireless router. 60W PoE can support your higher-powered devices such as thin clients, POS systems, laptops or digital signage, from up to 100 meters away.

Easy to Deploy

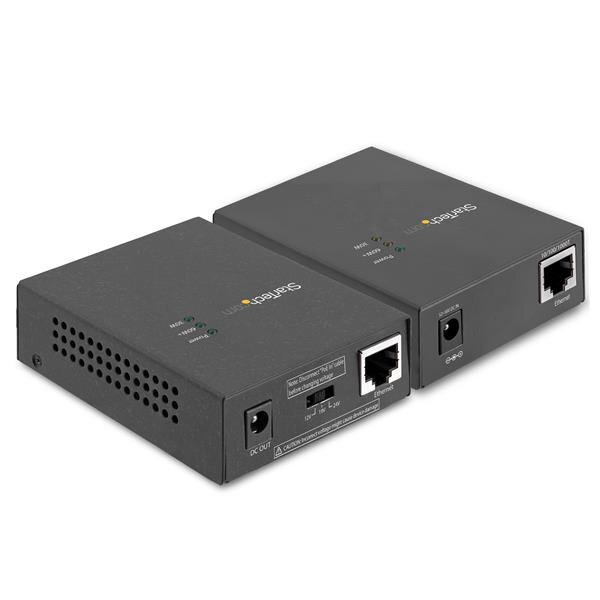

The PoE injector and PoE splitter are both simple to set up. Supporting plug-and-play installation, they also feature a compact, all-in-one design, and a durable, wall-mountable metal housing. The PoE splitterÕs 12V/19V/24V DIP switch on the front panel offers either 24V DC power to industrial equipment or 12V/19V DC output to common network devices, increasing the number of product applications.

StarTech.com Networking IO

StarTech.com offers networking products that extend your networks to remote locations at extreme distances, for maximum network scalability. This Port 60W PoE Injector + PoE Splitter Kit is backed by a 2-year warranty and free lifetime North American based multilingual technical support.


Applications

  • PoE pan-tilt-zoom cameras
  • Thin clients
  • All-in-one touchscreen PC
+ More- Less

(UPOESPLT1G)

Warranty Information
Warranty 2 Years
Hardware
Industry Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3bt PoE++ (4PPoE)
Performance
Auto MDIX No
Flow Control No support flow control
(Ports are all pin to pin pass)
Full Duplex Support No
Jumbo Frame Support No
Max Distance 100 m / 330 ft
Maximum Cable Length 328 ft [100 m]
MTBF 50,000 hrs @ 25 degrees C
PoE Usage 60W+
40W
20W
Remote Management Ability No
Supported Voltage 12V
19V
24V
Switching Architecture No support for switching architecture
Connector(s)
Connector A 1 - RJ-45 (PoE+) Female
4 - RJ-45 (PoE+) Female
Connector B 1 - RJ-45 Female
Special Notes / Requirements
Patents and Licenses The following patents are licensed for this product. This list might not be all inclusive.
¥ United States Patent No. 5,406,260 (expired)
¥ United States Patent No. 6,650,622
¥ United States Patent No. 7,457,250
¥ United States Patent No. 8,155,012
¥ United States Patent No. 8,902,760
¥ United States Patent No. 8,942,107
¥ United States Patent No. 9,019,838
¥ United States Patent No. 9,049,019
¥ United States Patent Application No. 14/695,456
¥ United States Patent Application No. 14/726,940
Indicators
LED Indicators 1 - System power
1 - PoE in use
1 - Legacy mode
3 - PoE Usage 20W/40W/60W+
Power
Center Tip Polarity Positive
Input Current 2A
Input Voltage 100 - 240 AC
Output Current 1.33 A
Power Consumption (In Watts) 71.82
Environmental
Humidity 5% to 90% Relative Humidity, non-condensing
Operating Temperature 0 to 50 degrees C
Storage Temperature -10 to 70 degrees C
Physical Characteristics
Color Black & Brown
Enclosure Type Metal
Product Height 3.3 in [8.5 cm]
Product Length 15.4 in [39 cm]
Product Width 9.2 in [23.3 cm]
Weight of Product 10.6 oz [300 g]
Packaging Information
Package Height 2.8 in [70 mm]
Package Length 11.2 in [28.4 cm]
Package Width 13.1 in [33.4 cm]
Shipping (Package) Weight 4.1 lb [1.9 kg]
What's in the Box
Included in Package 1 - PoE Splitter
1 - PoE Injector
1 - Universal Power Adapter
4 - Power Cords (NA/JP, UK,EU,AU)
2 - DC Plug Cables
1 - RJ45 Network Cable
1 - User Manual
PoE Yes
WDM Yes
SKU UPOESPLT1G
Barcode # 65030867542
Brand Startech
Shipping Weight 1.8300kg
Shipping Width 0.240m
Shipping Height 0.085m
Shipping Length 0.400m
