100-240V Redundant Power Supply Module
TL-MCRP100
Up to 102 watts output power
Output over-voltage/short circuit/over-current protection

What this product does

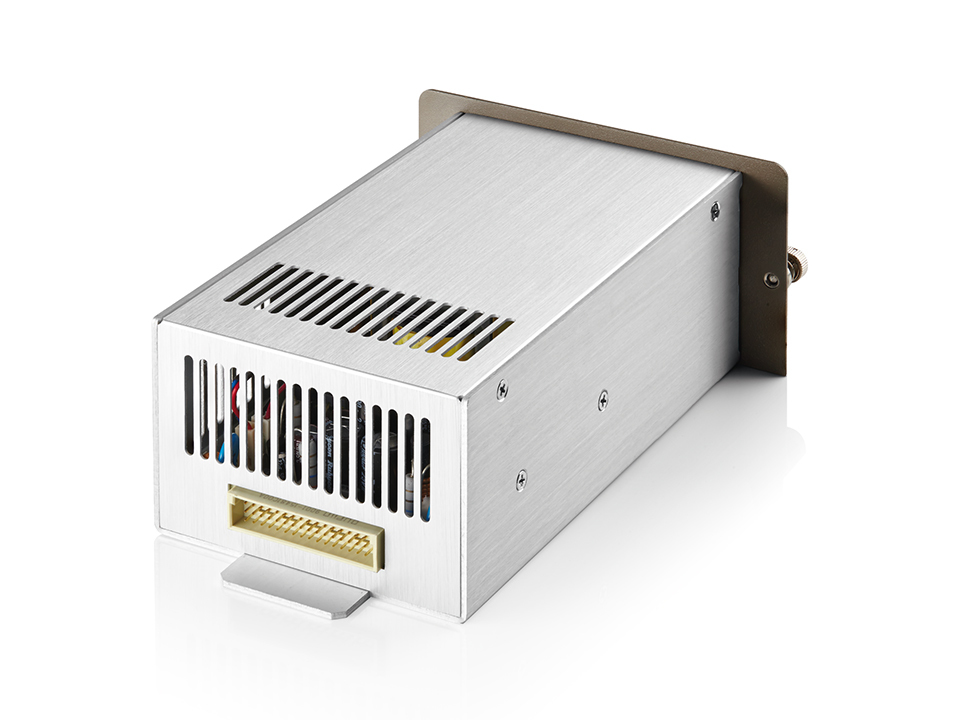

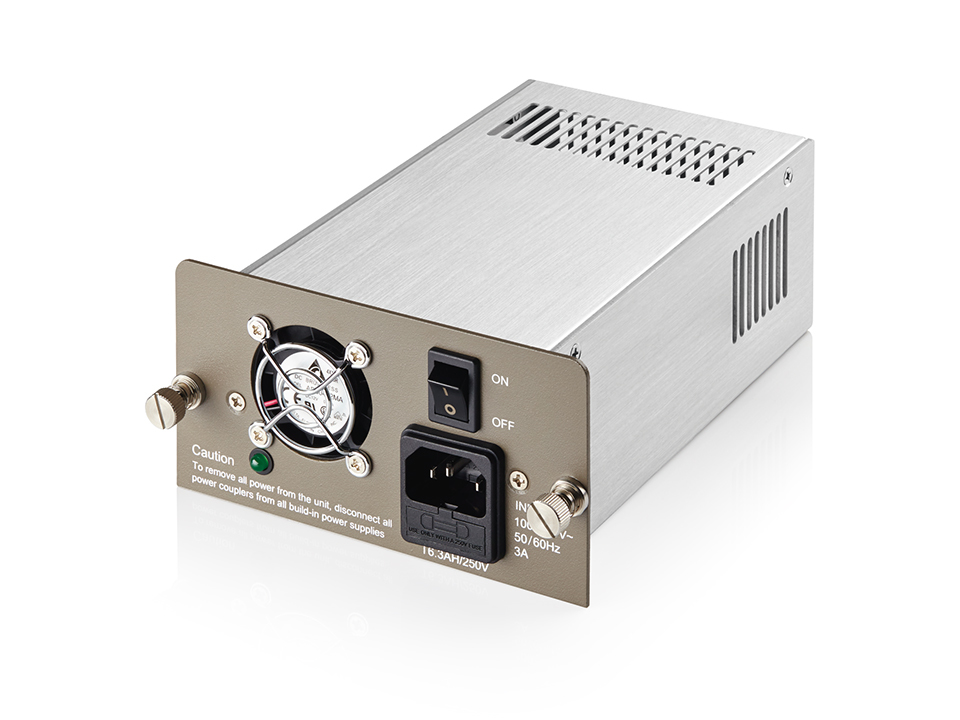

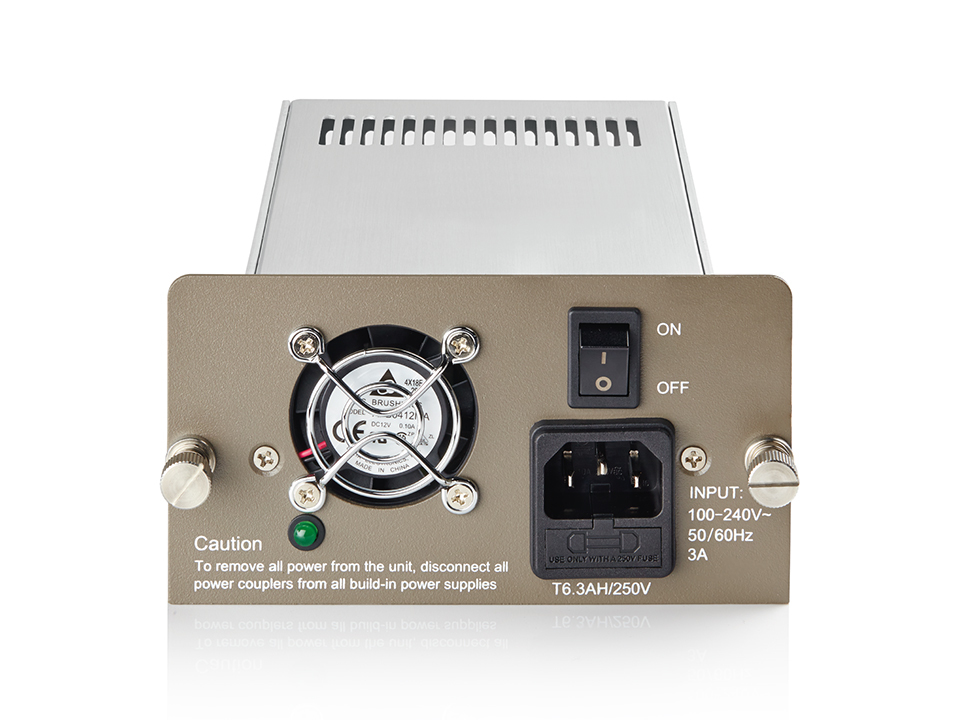

The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 9.5VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.

(TL-MCRP100)

100 to 240 Volts, 50 to 60 Hz AC input range
9.5VDC/9.5A output
102W rated wattage
Output over-voltage/short circuit/over-current protection

REDUNDANT POWER SUPPLY
AC Power Input	100-240V~ 50/60Hz 3A
DC Power Output	9.5V/9.5A
Dimensions	21013070 mm
Environment	Operating Temperature: 0℃~60℃ (32℉~140℉) Storage Temperature: -35℃~85℃ (-31℉~185℉) Operating Humidity: 20%~90%RH non-condensing Storage Humidity: 10%~95%RH non-condensing

SKU	TL-MCRP100
Barcode #	6935364099848
Brand	TP-LINK
Shipping Weight	0.1000kg
Shipping Width	0.230m
Shipping Height	0.100m
Shipping Length	0.260m
Shipping Cubic	0.005980000m3
