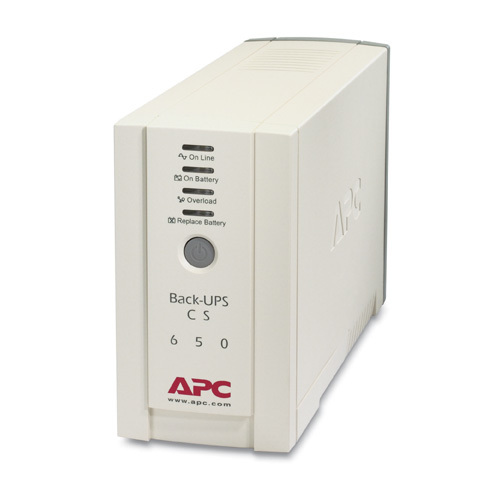

APC Back-UPS, Back-UPS, 650VA, Tower, 230V, 4 IEC C13 Outlets , User Replaceable Battery

SKU: BK650-AS | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
Compact size accommodates installation in various environments
LED display for easy-to-read status of unit and utility power conditions
Easy-to-use auto-shutdown software with power and energy management features
Data line protection helps protect equipment from surges
Restore power backup capacity with user-replaceable battery (RBC17 sold separately)

Description

This product is part of the Back-UPS range.
The BK650-AS features a total of 4 power outlets, one of which is surge only.
Its runtime at 100W is 35 minutes.
It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL.
Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.04 kg
The BK650-AS ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Product Images

Downloads & Documents

Compatible Products & Accessories

Batteries

BATT17-1209

Compatible with RBC17 APC Battery

Replacement battery

RBC17

APC Replacement Battery Cartridge for Back-UPS, 12V 9Ah lead...

(BK650-AS)

Specifications - BK650-AS

Overview

Lead time

Usually in Stock

Main

Main Input Voltage	230 V AC 1 phase
Input Connection Type	IEC 60320 C14
Input voltage limits	160...282 V adjustable 180...260 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	230 V AC 1 phase
Rated power in W	400 W
rated power in VA	650 VA
Output connection type	3 IEC 60320 C13 1 IEC 60320 C13 surge
USB Charging Port	None
Maximum configurable power in VA	650 VA
Maximum configurable power in W	400 W
UPS type	Standby
Wave type	Stepped approximation to a sinewave

Complementary

Battery type	Lead-acid internal included
Control panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity	USB port
Surge energy rate	320 J
Cable length	1.8 m
Number of cables	2
Colour	Beige
Height	165 mm
Width	91 mm
Depth	284 mm
Net weight	6.04 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Tower
Two post mountable	0
USB compatible	Yes
Provided equipment	CD with software Documentation CD 1 x detachable 1.2 m IEC power cord 1 x detachable 1.8 m IEC power cord Telephone cable USB cable Warranty card
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	A-Tick C-Tick CE GOST NEMKO
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…4572 m
Relative humidity	5…95 %
Storage Relative Humidity	5…95 %
Acoustic level	45 dBA
Heat dissipation	0 Btu/h
Operating altitude	0...30000 ft

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	8 h
Number of battery replacement quantity	1
Battery life	4…6 year(s)
Replacement battery	RBC17
Battery charger power	12 W rated

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	49.4 cm
Package 1 Width	41.5 cm
Package 1 Length	18.5 cm
Package 1 Weight	7.32 kg
SCC14	10731304224430

Contractual warranty

Warranty (in months)

12 Battery|24 UPS

SKU	BK650-AS
Barcode #	731304224433
Brand	APC
Shipping Weight	6.8800kg
Shipping Width	0.240m
Shipping Height	0.190m
Shipping Length	0.420m
Shipping Cubic	0.019152000m3

Manufacturer Warranty: 2 Years Limited Warranty
