StarTech 16 Port USB VGA KVM Switch Kit with OSD and Cables, 1U Rackmount - SV1631DUSBUK
Model # SV1631DUSBUK
-
SKU: SV1631DUSBUK
- Pick Up Available
- Australian Warranty
- Checkout Securely

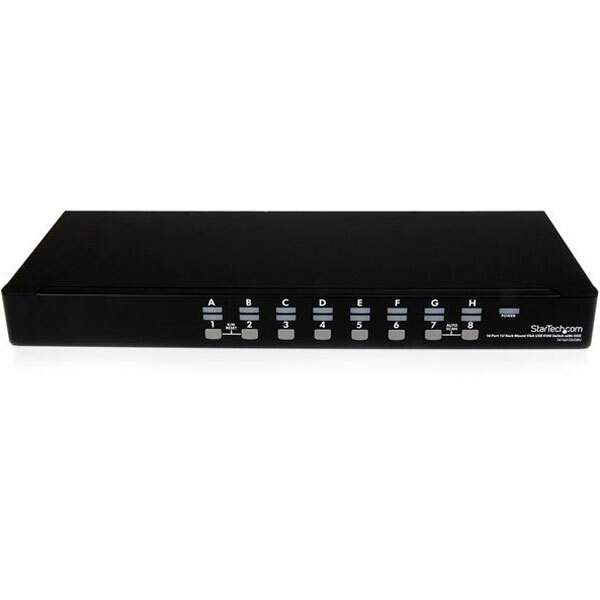

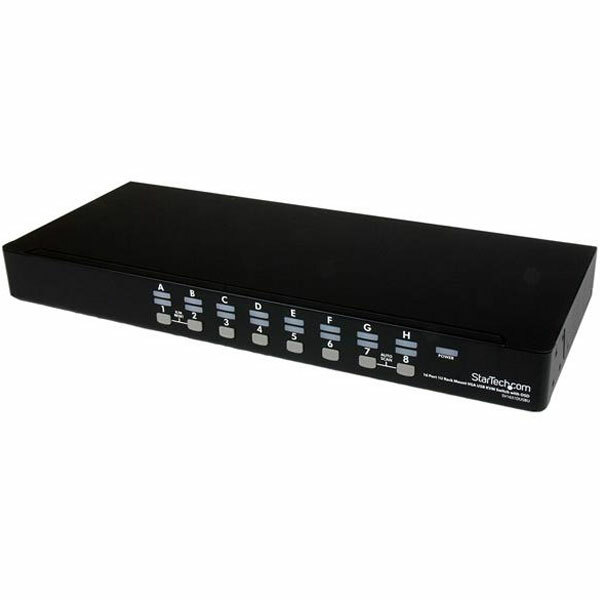

The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 16-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
(SV1631DUSBUK)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| Audio | No | |
| Cables Included | Yes | |
| Daisy-Chain | Yes | |
| KVM Ports | 16 | |
| Number of Monitors Supported | 1 | |
| PC Interface | USB | |
| PC Video Type | VGA | |
| Rack-Mountable | Yes | |
| Performance | ||
| Hot-Key Selection | Yes | |
| IP Control | No | |
| Maximum Analog Resolutions | 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) | |
| Maximum Cascaded Computers | 136 | |
| Maximum Number of Users | 1 | |
| MTBF | 158000 hours | |
| On-Screen Display | Yes | |
| Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||
| Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) Female | |
| 2 - USB Type-A (4 pin) USB 2.0 Female | ||
| Host Connectors | 16 - VGA (15 pin, High Density D-Sub) Female | |
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Indicators | ||
| LED Indicators | 1 - Green - Power | |
| 16 - Green - PC Online | ||
| 16 - Red - PC Selected | ||
| Power | ||
| Center Tip Polarity | Positive | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 1A | |
| Output Voltage | 9 DC | |
| Power Consumption (In Watts) | 9 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Humidity | 0~80% RH | |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Depth | 7.5 in [190 mm] | |
| Product Height | 1.8 in [4.5 cm] | |
| Product Width | 17.3 in [44 cm] | |
| Weight of Product | 5.3 lb [2.4 kg] | |
| Packaging Information | ||
| Package Height | 4.7 in [12 cm] | |
| Package Length | 23.3 in [59.3 cm] | |
| Package Width | 10.4 in [26.3 cm] | |
| Shipping (Package) Weight | 13.4 lb [6.1 kg] | |
| What's in the Box | ||
| Included in Package | 1 - 16-port USB KVM switch | |
| 2 - mounting brackets | ||

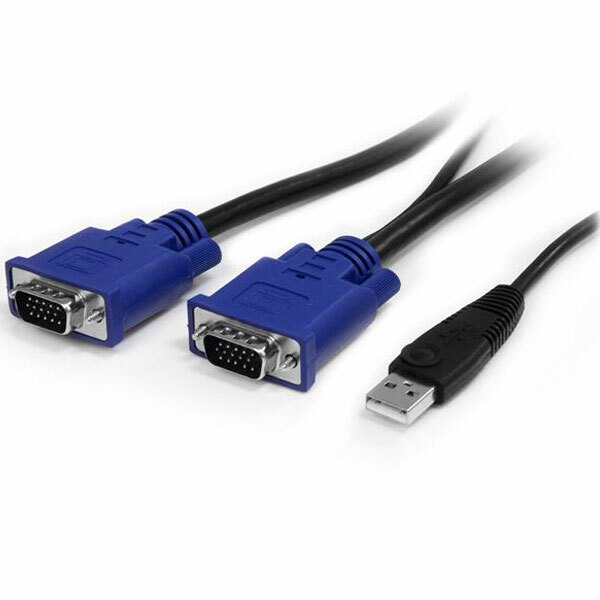

| 16 - 6ft 2-in-1 USB VGA KVM cables | ||
| 1 - screw kit | ||
| 4 - foot pads | ||
| 1 - universal power adapter (NA/EU/UK/AU) | ||
| 1 - instruction manual | ||
| SKU | SV1631DUSBUK |
| Barcode # | 65030840828 |
| Brand | STARTECH |
| Shipping Weight | 6.0700kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.130m |
| Shipping Length | 0.590m |
| Shipping Cubic | 0.020709000m3 |
