StarTech 4 Port VGA USB KVM Switch with Hub - SV431USB
Model # SV431USB
-
SKU: SV431USB
- Pick Up Available
- Australian Warranty
- Checkout Securely

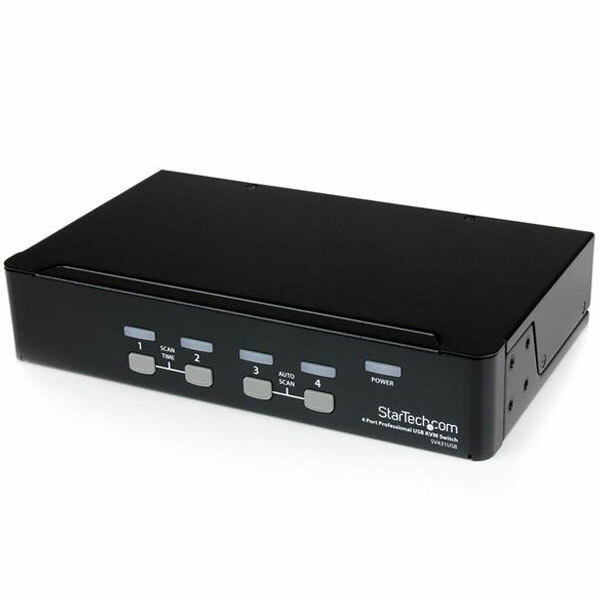

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
(SV431USB)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| Audio | No | |
| Cables Included | No | |
| Daisy-Chain | No | |
| KVM Ports | 4 | |
| Number of Monitors Supported | 1 | |
| PC Interface | USB | |
| PC Video Type | VGA | |
| Rack-Mountable | Optional | |
| U Height | 1U | |
| Performance | ||
| Auto Scan | 3, 8, 15 & 30 seconds | |
| DVI Support | No | |
| Hot-Key Selection | No | |
| IP Control | No | |
| Maximum Analog Resolutions | 1920 x 1440 | |
| Maximum Cable Length | 16.4 ft [5 m] | |
| Maximum Number of Users | 1 | |
| MTBF | 82506 hours | |
| On-Screen Display | No | |
| Port Selection Support | Push Button | |
| Connector(s) | ||
| Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) Female | |
| 4 - USB Type-A (4 pin) USB 2.0 Female | ||
| Host Connectors | 4 - USB B (4 pin) Female | |
| 4 - VGA (15 pin, High Density D-Sub) Male | ||
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Special Notes / Requirements | ||
| Note | In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, an additional power supply may be required | |
| Power | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.4A | |
| Input Voltage | 110V-240V AC | |
| Output Current | 2A | |
| Output Voltage | 5 DC | |
| Plug Type | N | |
| Power Source | Not Included (not required for standard applications) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Height | 1.7 in [4.4 cm] | |
| Product Length | 8.7 in [22 cm] | |
| Product Width | 5.1 in [13 cm] | |
| Weight of Product | 34.9 oz [988 g] | |
| Packaging Information | ||
| Package Height | 2.8 in [72 mm] | |
| Package Length | 11.6 in [29.5 cm] | |
| Package Width | 7.7 in [19.6 cm] | |
| Shipping (Package) Weight | 2.8 lb [1.3 kg] | |
| What's in the Box | ||

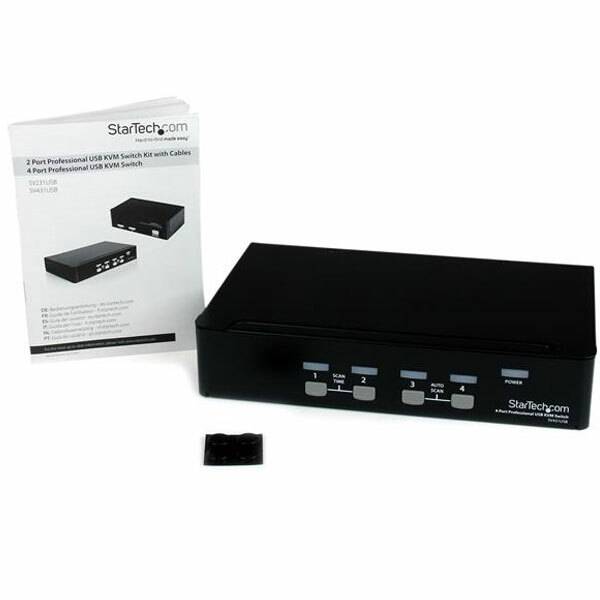

| Included in Package | 1 - 4 Port VGA USB KVM Switch | |
| 4 - Rubber Feet | ||
| 1 - Instruction Manual | ||
| SKU | SV431USB |
| Barcode # | 65030787192 |
| Brand | STARTECH |
| Shipping Weight | 1.2700kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.070m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.004200000m3 |
