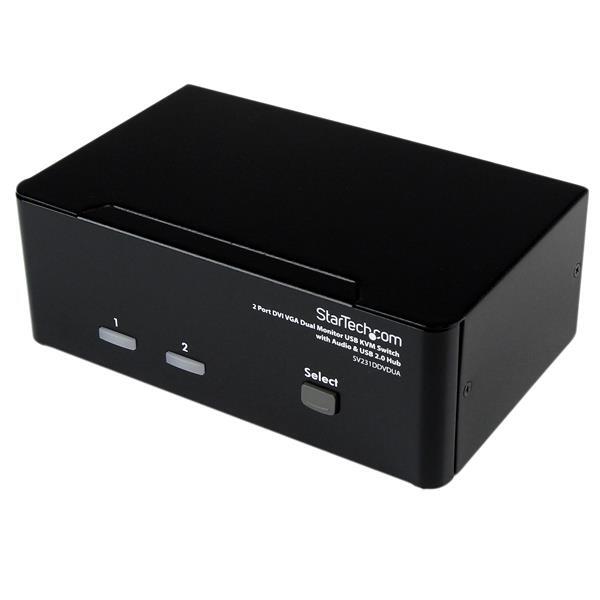

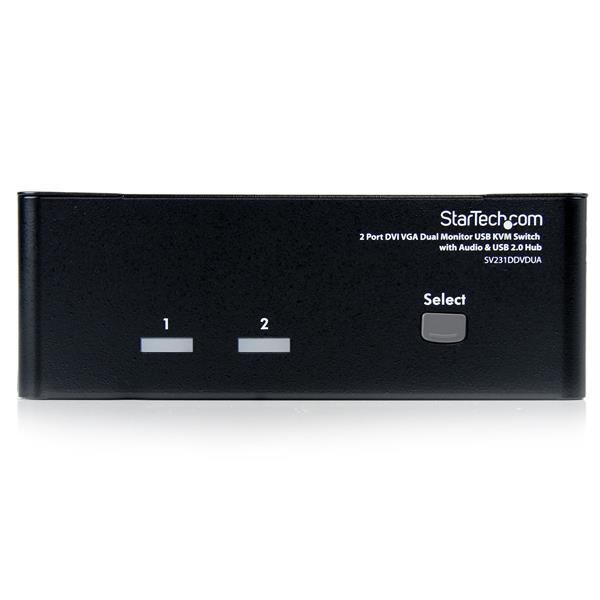

StarTech 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio - SV231DDVDUA
Model # SV231DDVDUA
-
SKU: SV231DDVDUA
- Pick Up Available
- Australian Warranty
- Checkout Securely
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
(SV231DDVDUA)

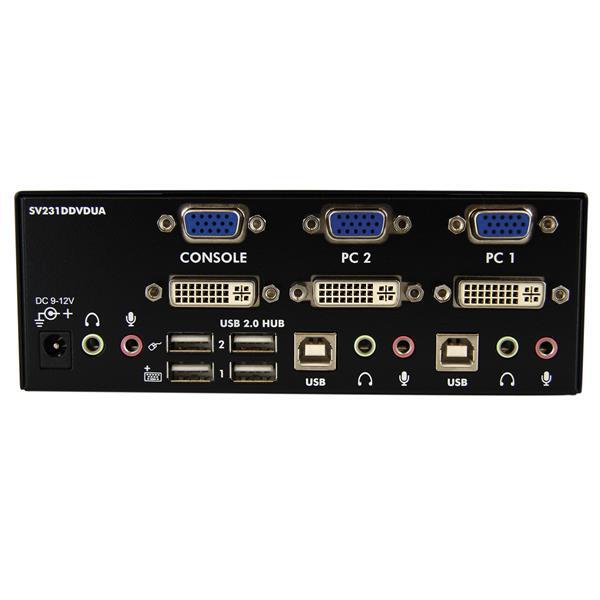

| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| USB B (4 pin) Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 2 |
| Number of Monitors Supported | 2 |
| PC Interface | USB |
| PC Video Type | DVI+VGA |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Green - PC Detected |
| Green - Power | |
| Red - PC Indicator | |
| Packaging Information | |
| Package Height | 72 mm [2.8 in] |
| Package Length | 19.9 cm [7.8 in] |
| Package Width | 29.5 cm [11.6 in] |
| Shipping (Package) Weight | 1.3 kg [2.8 lb] |
| Performance | |
| DVI Support | Yes - Single Link |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Digital Resolutions | 1920 x 1200 |
| Maximum Number of Users | 1 |
| MTBF | 64,691 Hours |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 100 mm [3.9 in] |
| Product Height | 5.7 cm [2.2 in] |
| Product Length | 16.3 cm [6.4 in] |
| Product Width | 16 cm [6.3 in] |
| Weight of Product | 779 g [27.5 oz] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 100 - 240 AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables. |
| What's in the Box | |
| Included in Package | 2-port KVM switch |
| foot pads | |
| instruction manual | |
| universal power adapter (NA/EU/UK/AU) | |
| SKU | SV231DDVDUA |
| Barcode # | 65030835725 |
| Brand | STARTECH |
| Shipping Weight | 1.2800kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.290m |
| Shipping Cubic | 0.001450000m3 |
