APC Smart-UPS On-Line, 8kVA/8kW, Tower, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

SKU: SRT8KXLI | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available

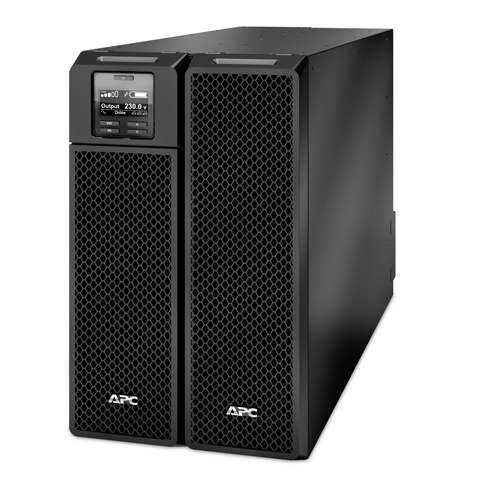

8kVA/8kW double-conversion on-line pure sine wave tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
1-Year Secure Network Management Card subscription included
Add up to 10 external battery packs (SRT192BP2) for extended runtime

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity.
This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.
It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables.
The UPS has an embedded Network Management Card for UPS network-based monitoring and management.
The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters.
It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card.
The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Product Images

Downloads & Documents

Compatible Products & Accessories

Batteries

SRT192BP2

APC Smart-UPS On-Line SRT Battery Pack for 8/10kVA Extended ...

Cables

SRT003

APC Smart-UPS SRT Extension Cable for External Battery Packs...

Mounting

SRTRK2

APC Smart-UPS SRT 19 inch Rail Kit for Smart-UPS SRT 5/6/8/1...

PDU

AP6003A

RACK PDU, BASIC, HALF HEIGHT, 100-240V/20A, 220-240V/16A, (1...

AP6015A

RACK PDU, BASIC, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13

AP6020A

APC NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A...

AP6120A

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13,...

AP7552

Rack PDU,Basic, Zero U, 16A, 230V, (20) C13 & (4) C19 , IEC ...

AP7820B

Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13

AP7821B

Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13

AP7850B

Rack PDU, Metered, Zero U, 10A, 230V, (16) C13

AP7920B

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or...

AP7921B

APC NetShelter Switched Rack PDU, 1U, 1PH, 3.7kW 230V 16A or...

AP7950B

Rack PDU, Switched, Zero U, 10A, 230V, (16) C13

AP8459WW

Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 100-240V, (21) C...

Replacement battery

APCRBC140

APC Replacement Battery Cartridge for Smart-UPS On-Line, 192...

Sensors

AP9335T

Wired, Sensor, NetBotz, Temperature, 13 ft

AP9335TH

APC Temperature & Humidity Sensor

Service bypass panels

SBP10KRMI4U

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; I...

SBP16KP

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire...

SBP16KRMI4U

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (...

SmartSlot

AP9810

Dry contact, Management Options, Dry Contact I/O Accessory, ...

Transformers

APTF10KW01

APC WW 10KVA Isolation Transformer

(SRT8KXLI)

Specifications - SRT8KXLI

Overview

Presentation	High density, double-conversion on-line power protection with scalable runtime.
Lead time	Usually in Stock

Main

Main Input Voltage	220 V AC 1 phase 230 V AC 1 phase 240 V AC 1 phase 380 V AC 3 phases 400 V AC 3 phases 415 V AC 3 phases
Input voltage	220 V 240 V 380 V 415 V
Input voltage limits	100...275 V adjustable (half load) 173...476 V adjustable (half load)
Number of input connectors	1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E)
Network frequency	40...70 Hz auto-sensing
Output voltage	220 V 240 V
Rated power in W	8000 W
rated power in VA	8000 VA
Output connection type	6 IEC 60320 C13 3 IEC Jumpers 4 IEC 60320 C19
Output connector type	Hard wire 3-wire (H N + E) for 1 zone(s)
Bypass type	Internal bypass (automatic and manual)
Crest factor	3 : 1
Harmonic distortion	Less than 2 %
Maximum configurable power in VA	8000 VA
Maximum configurable power in W	8000 W
UPS type	On-Line
Wave type	Sine wave
Output frequency	50/60 Hz +/- 3 Hz sync to mains

Complementary

Battery type	Lead-acid internal included
Emergency power off	Yes
Free slots	1
Preinstalled device	Network management card 3 with environmental monitoring
Alarm	Audible and visible alarms : prioritized by severity
UPS connectivity	Serial port USB port Embedded network management card 3 Available expansion slot
Surge energy rate	480 J
Colour	Black
Height	432 mm
Width	263 mm
Depth	715 mm
Net weight	111.82 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Tower
Two post mountable	0
USB compatible	Yes
Provided equipment	CD with software Documentation CD Installation guide Temperature probe USB cable Warranty card Web/SNMP management card
Number of power module filled slots	0
Number of power module free slots	0
Additional specification	High density
Redundant	No
Range of product	Smart-UPS On-Line
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	CE EAC IRAM RCM VDE
Marking	CE Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Acoustic level	55 dBA
Heat dissipation	1497 Btu/h
Operating altitude	0...10000 ft

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Battery voltage	+/- 192 V (split battery referenced to neutral)
Extended runtime	1
Number of battery filled slots	0
Battery recharge time	1.5 h
Number of battery replacement quantity	2
Battery life	3…5 year(s)
Replacement battery	APCRBC140
Battery charger power	876 W rated

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	46.1 cm
Package 1 Width	60 cm
Package 1 Length	100 cm
Package 1 Weight	126.82 kg

Contractual warranty

Warranty (in months)

24 Battery|36 UPS

SKU	SRT8KXLI
Barcode #	731304304319
Brand	APC
Shipping Weight	126.6000kg
Shipping Width	0.600m
Shipping Height	0.340m
Shipping Length	0.990m
Shipping Cubic	0.201960000m3

Manufacturer Warranty: 3 Years Limited Warranty
